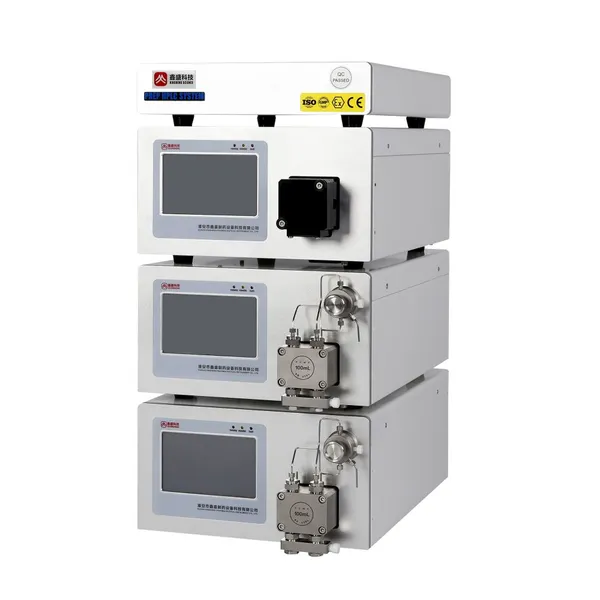

Help Center100ml Binary Preparative HPLC System
Related Products
The system is equipped with two EMP0100 preparative liquid chromatography pumps (100ml/min) and one EUD2000 UV detector, which can realize the dual-pump high-pressure gradient elution mode. Tailor your solution to meet your chromatographic amplification and purification needs.
Configure your preparative HPLC system, from injection to inspection, and select different materials, flow rates, valves, and detectors. High pressure infusion pump pump head and liquid contact materials can be selected SS316L, titanium alloy, PEEK, etc., suitable for the special requirements of different systems. Dual wavelength UV-VIS detectors for extended detection range and can also be equipped with differential refraction detectors or evaporative light detectors. The system is flexible and can be used with 20-50mm pre-filled columns and DAC-50 series columns.
| 100ml Binary Preparative HPLC System | |
| Article Number | LC021017T |
| Model | M-Prep EC2010 |
| Prep HPLC Pump | 100ml/min(*2) |
| UV Detector | 190-400nm (standard deuteriumlamp, tungsten lamp optional) |
| Preparative Flow Cell | 1/16 |
| Manual Injector Valve | Standard |
| Sample Injection Loop | 10ml / 20ml |
| Preparative Dynamic Mixer | 1/16",10Mpa, 316L |
| Online filter | 30mm(1/16"),10Mpa,316L |
| Control Software | LabChrom |
| Solvent Tray | Standard |
| Start-up Kit | Standard |
