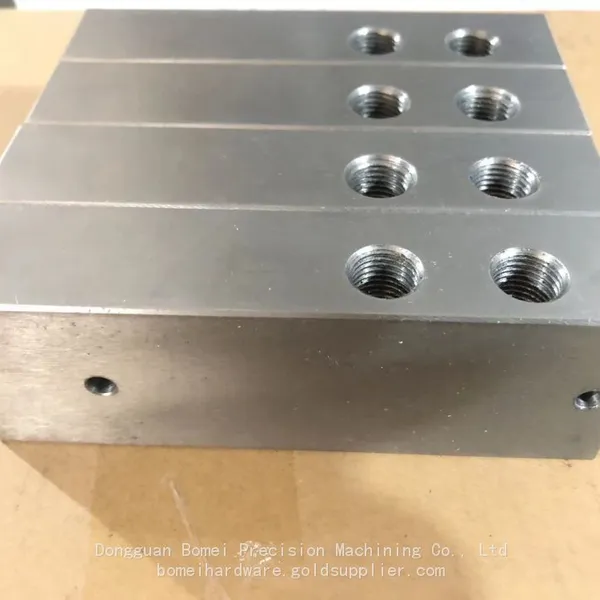

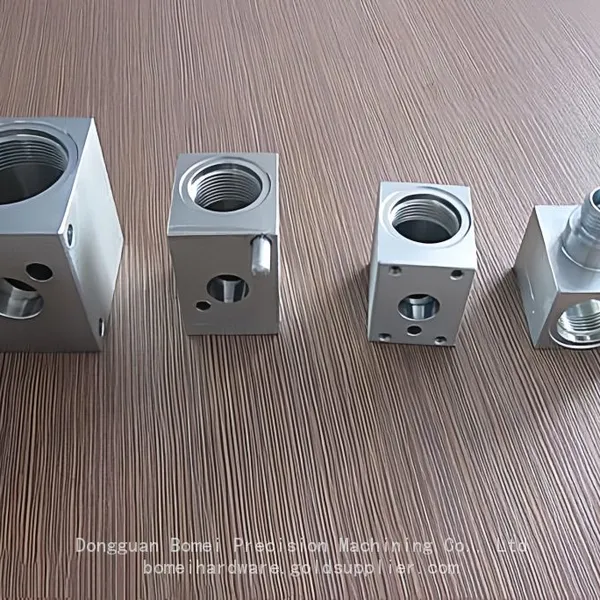

High Precision Die Steel Manifold Block Hydraulic System Oil Block Valve Blocks
US$ 25 - 88
MOQ: 1 Piece
Key Specifications
Get Latest Price
Material:
Metal
Certification:
CE, ROHS, GS, ISO9001
Application:
Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
20 days
Related Products
-
Custom 7075 Aluminum CNC Shells Top Bottom Cases For Mechanical KeyboardUS$ 8 - 28MOQ: 1 Piece -
Custom Precision Milling Robot Kit CNC Aluminum Milled Joints Arms ActuatorUS$ 12 - 35MOQ: 1 Piece
-
High Precision CNC Milling Brass Measurement Calibrator For Measuring InstrumentUS$ 20 - 80MOQ: 1 Piece
-
High Precision CNC Customized Milling Aluminum Cell Parts for Industrial UseUS$ 8 - 36MOQ: 1 Piece
-
CNC Milling AISI304 304 Stainless Steel Base Body Parts With Bright Polished FinishUS$ 2 - 6.9MOQ: 1 Piece
Material
Metal
Certification
CE, ROHS, GS, ISO9001
Application
Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery
Standard
DIN, GOST, GB, JIS, ANSI, BS
Customized
Customized
Condition
New
Precision-engineered die steel hydraulic manifold blocks—machined for ultra-high pressure resistance, dimensional accuracy, and leak-proof performance, ideal for industrial hydraulic systems, construction machinery, and automation equipment valve integration.
| Parameter | Key Details |
|---|---|
| Material | H13 Die Steel: Excellent toughness, high hardness (50–55 HRC after heat treatment), and wear resistance; withstands hydraulic pressure up to 42 MPa.4140 Alloy Steel (Optional): High tensile strength, good machinability, cost-effective for medium-pressure hydraulic systems (≤31.5 MPa).P20 Die Steel (Optional): Superior polishability and dimensional stability, suitable for complex internal oil channel machining. |
| Processing Capabilities | 3/4/5-axis CNC precision milling/drilling, deep hole drilling (oil channels φ2–φ20mm, depth-to-diameter ratio up to 30:1), counterboring (for valve cartridge seating), tapping (M6–M24 hydraulic port threads), honing (for internal oil channel smoothness); heat treatment (quenching + tempering) for hardness enhancement; 100% CMM dimensional inspection; hydraulic pressure testing (1.5× working pressure) for leak-proof verification. |
| Tolerance & Precision | Dimensional tolerance ±0.01–±0.03mm; oil channel position tolerance ≤0.02mm; valve seat bore tolerance H7 (±0.015mm) for cartridge valve fit; flatness ≤0.02mm/m; surface roughness Ra 0.2–0.8μm (internal oil channels Ra ≤1.6μm to reduce pressure loss); compliant with ISO 4401 hydraulic manifold standards. |
| Surface Finish & Treatment | Nitriding: Surface hardness ≥900 HV, wear resistance 5x higher than untreated steel; salt spray resistance ≥800h, prevents corrosion from hydraulic oil and moisture.Black Oxide Coating (Optional): Improves rust resistance during storage and installation; reduces light reflection for industrial equipment aesthetics.Deburring & Cleaning: High-pressure water jet cleaning of internal oil channels to remove machining chips; edge chamfering (0.3–0.5mm) to prevent seal damage during valve assembly. |
| Compatibility | Fits industrial hydraulic power units, construction machinery (excavators, loaders), injection molding machines, and automated production line hydraulic systems; compatible with cartridge valves, pressure relief valves, and flow control valves; supports standard hydraulic port connections (BSP, NPT, metric threads); customizable internal oil channel layouts for OEM hydraulic circuit designs. |
Application Scenarios
