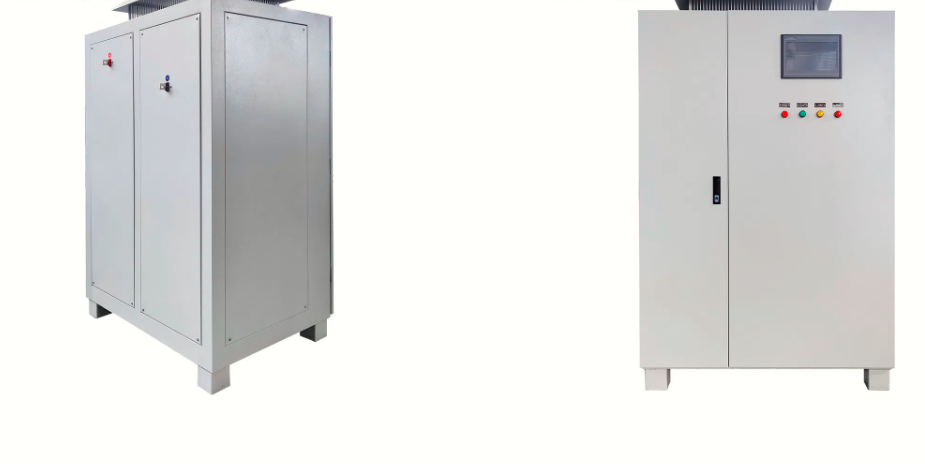

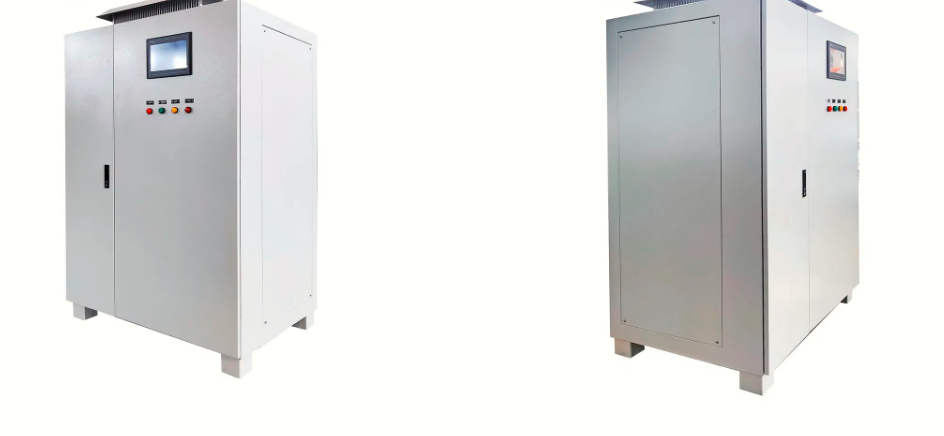

High-Performance 10A Programmable Power Supply for Industrial Applications

Product Description










Product Parameters



input	Rated voltage	3-phase 4-wire AC380V
	Voltage range	380V±15%
	frequency	50HZ±5%
output	Voltage setting range	0~Customized voltage continuously adjustable
	Current setting range	0~Customized current continuously adjustable
Working mode		Constant voltage mode (current limit)/constant current mode (voltage limit) (switching between two modes of stable voltage and stable current)
type		PWM switching power supply
Voltage regulation accuracy (compared within the range of 0%-100% of the rated value)		Source effect: ≤0.1% rated value ±1 word  Time drift: ≤0.1% rated value ±1 word  Temperature drift: ≤0.4‰/ºC±1 word (within half an hour)  Load effect: ≤0.5% of rated value ±1 word
Stabilized current accuracy (compared within the range of 0%-100% of the rated value)		Source effect: ≤0.1% rated value ±1 word  Time drift: ≤0.1% rated value ±1 word  Temperature drift: ≤0.4‰/ºC±1 word (within half an hour)  Load effect: ≤0.5% rated value ±1 word
Control method		Local control panel/external host computer
Startup shock		<1% of rated voltage
communication interface		RS485 (optional)
operation mode		Long-term
Control display	show contents	Display of operating state/fault state/overheating state Output current, voltage display, working time
	Operation function	Output start and stop, preset working hours Output voltage and current setting
	Voltage and current display accuracy	Better than 0.5%
protect	Input protection	Power input overvoltage, undervoltage, phase loss, etc;
	Output protection	Power output current limiting, voltage limiting, overload, etc;
	Overtemperature protection threshold	80ºC
	Protection method	Shutdown alarm
reliability	Usage method	24h continuous operation
	Main components	IGBT adopts imported chip modules, which are reliable and stable.
	Design lifespan	≥ 20 years
Comprehensive characteristics	power factor	≥0.95
	efficiency	≥90% (rated output)
	Transient response time	≤10ms
	noise	<75dB
	Inlet and outlet line mode	Incoming line at the lower part of the rear panel of the chassis, terminal output at the rear panel of the cabinet
	Cooling method	Air cooling/water cooling/oil cooling
	Protection level	IP20, circuit board three-proofing and overall protection treatment
	Insulation strength	Input-output-chassis: AC1500V, 10mA, 1 minute
	insulation resistance	Input-output-output: ≥20MΩ Input-shell
environment condition	Storage temperature	-25ºC~50ºC
	Working humidity	≤90%
	Altitude	≤2000m
	Operating ambient temperature	-20ºC~35ºC

          Environmental Protection                            Electroplating                                             Electrolysis
                        Oxidation                                          Electrophoretic                                 Hydrogen production
                Rare earth smelting                               Battery Charging                                   Fluorine production
