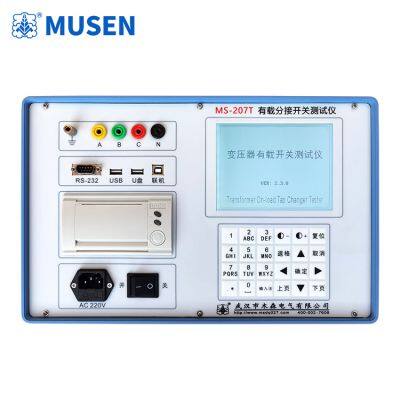

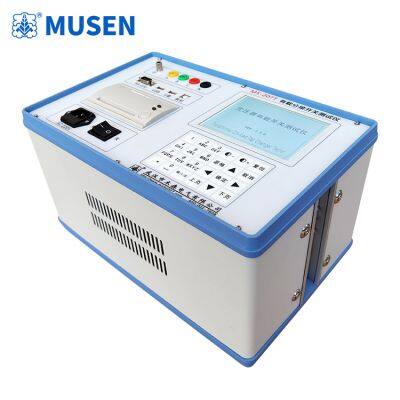

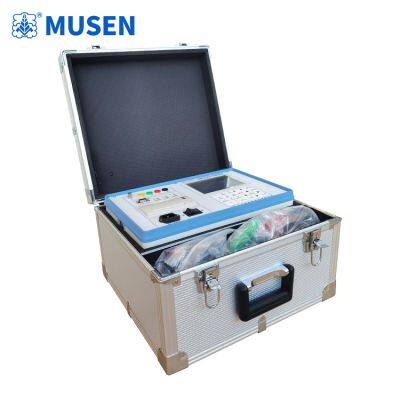

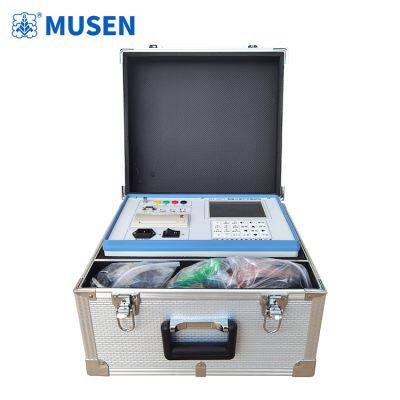

MS-207T, Transformer Load Switch Tester

Transformer load switch tester is used to measure the transition waveform, transition time,

instantaneous transition resistance values, and three-phase synchronicity of the on-load tap changer of a transformer.

Main Unit:

1. Built-in precision constant current source with complete and reliable protection circuitry.

2. Can perform tests with or without windings.

3. Built-in embedded PC-104 industrial computer with high speed and large storage capacity.

4. 6-channel high-speed synchronous data sampling.

Operating Interface:

1. 5.7-inch backlit wide-temperature LCD for clear display even in sunlight.

2. Graphical and text display of results.

3. T9 input method, supporting input of numbers, letters, Chinese characters, and various symbols.

Data Storage:

1. Main unit storage capacity of 1GB, capable of storing tens of thousands of test data sets.

2. External USB flash drive storage function for storing even more data.

3. USB flash drive data synchronization function: Convenient data exchange.

4. Can directly open data files on a USB flash drive.

5. Tree-structured storage: Stored by station name, number, and sub-connection position for easy data retrieval.

Online Functionality

6. Equipped with Windows version of "OTS Data Management Software".

7. Supports USB and RS232 online connectivity.

8. Comprehensive PC data management and analysis functions.
