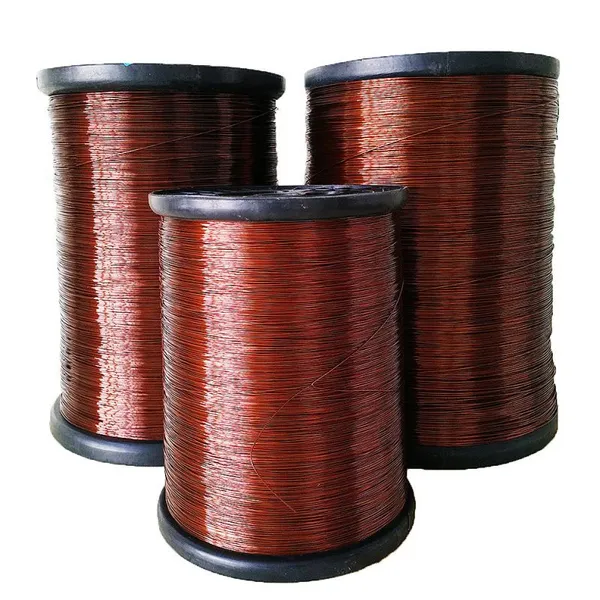

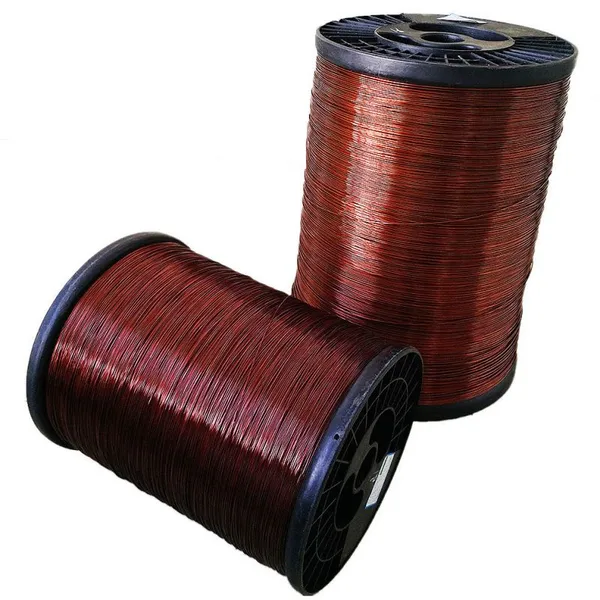

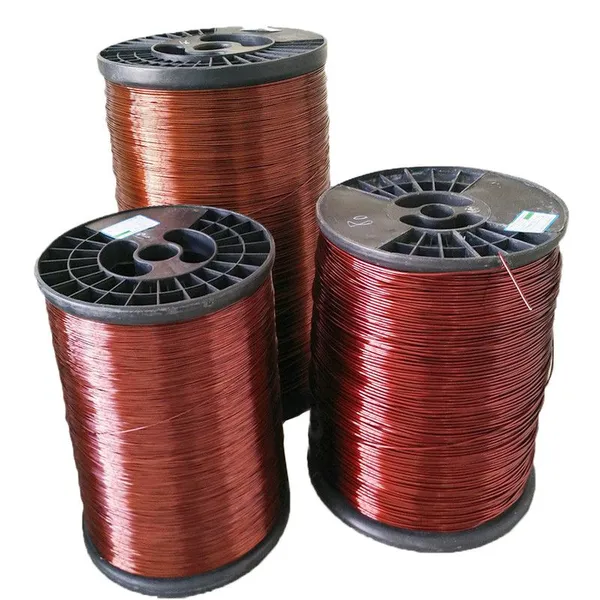

Manufacturing Price Insulated Winding Wires Enameled Round Aluminum Magnet Wire for Motor Winding With UL Certification Germany
US$ 4.48
500 - 4999 Kilograms
US$ 4.28
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminium Conductor Insulated Winding Wire for Motor Capacitor Starter and Transformer AWG 4-32 UzbekistanUS$ 4.18 - 4.48MOQ: 500 Kilograms -
Aluminum Conductor Insulated Winding Wire Enameled Round Aluminum With ISO9001 REACH RoHS Certification UzbekistanUS$ 4.28 - 4.49MOQ: 500 Kilograms
-
Insulated Winding Wire 180 Grade Magnet Wire Enameled Aluminum Round Wire With ISO Certification GermanyUS$ 4.11 - 4.39MOQ: 500 Kilograms
-
Insulated Winding Wire UL Certified Electrical Enamel Aluminum Wire for Ceiling Fan Motor GermanyUS$ 4.09 - 4.39MOQ: 500 Kilograms
-
Insulated Aluminium Wire Enamel Winding for Motor and Transformer AWG4-32 With ISO9001 UL Certification GermanyUS$ 4.28 - 4.48MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-200
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
AWG
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ISO9001 ROHS REACH UL
Bobbin:
PT25 PT30 PT60 PT200 PT270
Color
Brown
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg) Magnetic wire swg
Product Name: AWG enameled aluminum wire /swg Magnetic wire
Gauge Class 155-180-200-220 Enameled Aluminum Round Wire Price for Rewinding of Motors
AWG15 Round Enamelled Aluminum Wire Used For Washing Machine Motors Winding
High Quality Enameled Round aluminum 18 AWG Magnet Wire
Product Name |
QZ(G)-155 |
QZ-180 |
Q(ZY/XY)-200 |
Q(ZY/XY)-220 |
Thermal Class |
155, class F |
180, class H |
200, class C |
220, class C |
Coating Material |
PEW(G) |
EIW |
EI/AIW |
EI/AIW |
Cross Section Range (mm) |
0.20-5.00 |
0.20-5.00 |
0.20-5.00 |
0.20-5.00 |
Insulation Thickness (IEC) |
Grade 1
Grade 2
Grade 3
|
Grade 1
Grade 2
Grade 3
|
Grade 1 Grade 2 Grade 3 |
Grade 1 Grade 2 Grade 3 |
Standard |
GB/T6109.2
GB/T23312.4
IEC60317-3
|
GB/T6109.5
GB/T23312.5
IEC60317-8
NW30
|
GB/T6109.20
GB/T23312.7
IEC60317-13
NW35
|
GB/T6109.22
IEC60317-46
NW16
|
PT200 spool |
410*410*660 mm 65-75KG |
410*410*660 mm 65-75KG |
410*410*660 mm 65-75KG |
410*410*660 mm 65-75KG |
