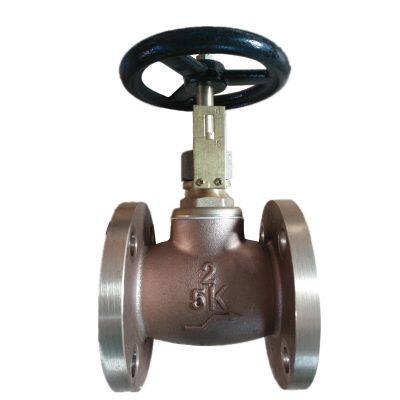

Reliable Sealing JIS Bronze Globe Valve DN15-DN100, 5K, Compatible With Water Treatment
- China
- T/T L/C PayPal
- 15 days
You May Like
-
JIS Bronze Globe Valve DN15-DN100 Size With 5K Pressure Rating for Industrial Applications
-
Chemical Processing JIS Bronze Globe Valve Featuring Corrosion Resistance and 5K Rating
-
Marine Application JIS Bronze Globe Valve With JIS B2031 Flange, 5K Pressure
-
JIS Bronze Globe Valve With DN15-DN100 Sizes and JIS B2031 Face to Face for Plumbing
-
High-Performance JIS Bronze Globe Valve for Industrial Use, 5K Pressure, BC6 Construction
-
Industrial Grade JIS Bronze Globe Valve Compliant With KS B2350 Standard, DN15-DN100
Product Details
| Material | Other, Bronze | Size Range | DN15 to DN100 | |
| Pressure Rating | JIS 5K (PN10 equivalent) | Connection Type | Flanged (JIS Standard) | |
| Applicable Medium | Water, Non-corrosive Fluids | Valve Type | Globe Valve | |
| Sealing Type | Metal-to-Metal Sealing | Certifications | ISO9001, ISO14000, OHSAS18001 | |
| Operation | Manual Handwheel |
Product Description
Chengxin Valve Co., Ltd. presents premium JIS Bronze Globe Valves engineered specifically for water treatment applications. With over 30 years of manufacturing expertise since 1993, our valves deliver exceptional sealing performance across DN15-DN100 pipelines. Designed to JIS 5K pressure standards, these valves ensure leak-free operation in critical fluid control systems while meeting international quality certifications.
The bronze construction provides superior corrosion resistance in water purification, filtration, and chemical dosing systems. Each valve undergoes rigorous quality control at our 50,000+ sqm facility, guaranteeing reliable performance in demanding industrial environments.
Core Technical Specifications:
Pressure-Temperature Rating: Maintains integrity up to 200°C at 5K pressure
Flow Design: Z-pattern body for precision flow regulation
Seat Material: Bronze-on-bronze sealing surface
Stem Design: Rising stem with blowout-proof construction
Testing: 100% hydrostatic tested at 1.5x rated pressure
Standard Dimension Table
| Nominal Size (DN) | Face-to-Face (mm) | Approx. Weight (kg) |
|---|---|---|
| 15 | 130 | 1.2 |
| 25 | 150 | 2.5 |
| 50 | 200 | 6.8 |
| 80 | 260 | 14.5 |
| 100 | 300 | 22.3 |
Key advantages for industrial users:
30% longer service life compared to standard valves due to precision-machined components
Reduced maintenance costs with self-lubricating stem bushings
Interchangeable parts compliant with JIS B2031 standards
Low torque operation requiring ≤30 Nm closing force
These globe valves are compatible with reverse osmosis systems, desalination plants, and chemical treatment processes. Our manufacturing capabilities allow customization of end connections, stem extensions, and special coatings upon request. With established operations across South America, Eastern Europe, Africa, and the Middle East, we ensure prompt delivery via major Chinese ports.
Frequently Asked Questions
Q: What makes bronze suitable for water treatment valves?
A: Bronze offers excellent corrosion resistance against treated water chemicals while maintaining structural integrity at high pressures.
Q: Are these compatible with ANSI piping systems?
A: While designed to JIS standards, flange drilling patterns can be customized for ANSI compatibility upon request.
Q: What maintenance intervals are recommended?
A: Under normal operating conditions, we recommend inspection every 24 months with lubrication of stem threads annually.
Q: Do you offer actuators for automated control?
A: Yes, pneumatic and electric actuators can be supplied as optional accessories.
Q: What's the typical lead time for DN100 valves?
A: Standard configurations ship within 15 working days ex-stock; custom orders require 25-30 days.
Q: How does the 5K pressure rating compare to PN ratings?
A: JIS 5K corresponds approximately to PN10 (10 bar) pressure class.
Q: Are certification documents provided?
A> Material test certificates and inspection reports are available with each shipment.
Experience the reliability of Chengxin valves in your critical water infrastructure. Our technical team provides comprehensive support from selection to installation. Contact our overseas offices today for project-specific quotations and detailed CAD drawings. All valves include a 24-month warranty against manufacturing defects.
