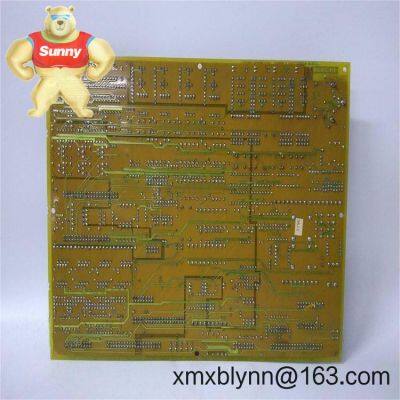

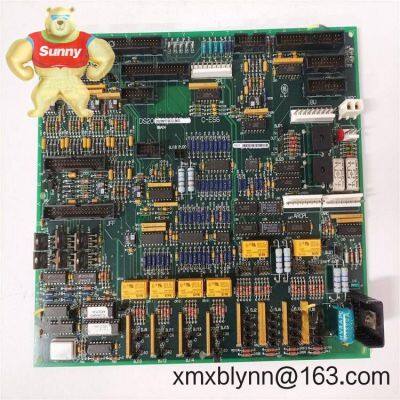

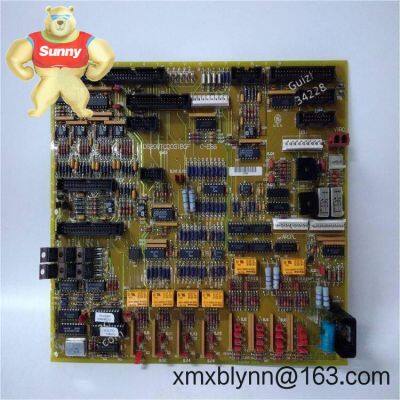

GE DS200NATOG2ADx: Keeping Your Mark VIe Analog Outputs Rock-Solid

• Hot-swappable design – Swap it mid-operation without crashing your Mark VIe rack. One plant manager told me this saved them $18k in forced outage time last winter.

• Configurable per channel – Mix 4-20mA and 0-10V outputs on the same board. Typically avoids those last-minute scrambles when field devices don’t match specs.

• Built-in diagnostics – LEDs flag open circuits or overloads before they trip your sequence. In most cases, you’ll catch issues during routine rounds instead of emergency calls.

• Mark VIe-native comms – Talks directly to the controller over backplane. No gateways or protocol headaches—just plug and trust the signals.

You’ll find these buried deep in gas turbine control cabinets at combined-cycle plants—sending throttle valve positions to servos or burner management signals. One refinery client uses them for flare stack pressure control where signal drift could mean safety trips. It’s not glamorous, but when your combustion dynamics hinge on millisecond-precise analog outputs? This board delivers. Avoid using it in high-vibration zones like compressor skids though; GE’s mounting clips aren’t ideal there.

Plant managers care about two things: avoiding $50k/hour forced outages and not re-engineering everything. This board slots into existing Mark VIe racks without firmware upgrades—meaning your techs won’t need retraining. The 365-day warranty feels solid (GE rarely honors extended coverage on legacy parts), and if you order before Thursday, you’ll likely get it in 5 days. Payment’s straightforward: 50% upfront, balance when it ships via DHL or UPS. One buyer told me the real savings come from skipping third-party converters—this thing just works with GE’s native toolkit.

Mount it in standard 19" cabinets with at least 50mm clearance above for airflow—those output ICs get toasty during summer peaks. One thing I appreciate: the terminal blocks accept 14-28 AWG wires without ferrules, saving field time. For maintenance? Wipe vents quarterly with a dry brush (no compressed air—it jams the LEDs), and check calibration during annual outages. Don’t ignore the backplane connector tension; loose pins cause intermittent faults that look like signal noise. Firmware updates come via Mark VIe Workstation—no USB ports here.

CE marked for EMC and safety (EN 61010-1), RoHS 3 compliant, and tested to IEC 61000-6-2 for industrial environments. GE’s warranty covers defects but not field wiring errors—so double-check those +24V commons. In practice, these boards last 10+ years if temps stay below 65°C. When your turbine’s humming at 3am and that analog signal stays locked? That’s the real certification.
