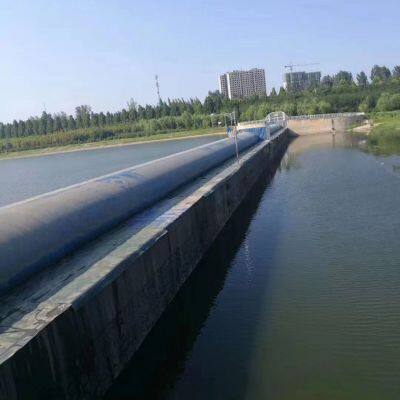

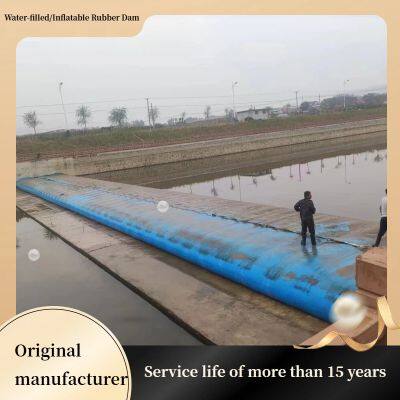

High Quality Custom Size Inflatable Rubber Weir Dam for Water Control and Irrigation

Rubber Dam: A Flexible Hydraulic Structure

1. Core Structural Components

• Rubber Dam Bag: The primary water-retaining element, typically fabricated from multi-layered synthetic rubber (e.g., neoprene, nitrile rubber, or ethylene-propylene-diene monomer (EPDM) rubber). These materials are chosen for their exceptional tensile strength, resistance to weathering (UV radiation, ozone), and impermeability to water. To enhance load-bearing capacity, the dam bag is often reinforced with polyester or nylon fabric, with thickness ranging from 3mm to 10mm—depending on the designed water head and span of the dam.
• Anchoring System: Responsible for securing the dam bag to the riverbed (bottom anchorage) and riverbanks (bank anchorages) to prevent displacement when the bag is inflated. Anchors are commonly made of steel plates or reinforced concrete blocks, and the dam bag is either clamped or bonded to these anchors using high-strength bolts. This setup ensures a tight seal, minimizing water leakage at the base of the dam.
• Inflation/Deflation System: Controls the height of the dam by filling or emptying the dam bag with a working medium (either compressed air or water). This system includes core equipment such as pumps (air compressors for air-inflated dams, water pumps for water-inflated dams), control valves (to adjust the flow rate of the medium), and pipelines (to transport the medium to/from the dam bag). A pressure relief valve is also integrated to prevent over-pressurization, which could damage the dam bag.
• Auxiliary Structures: Include upstream and downstream protective layers (e.g., gravel beds or concrete pads) to shield the dam bag from abrasion caused by sediment or floating debris. Additionally, trash racks are installed upstream to block sharp objects (e.g., rocks, tree branches) and large debris that might puncture or tear the rubber surface.

  ---

2. Working Principle

• Water-Retaining State: When water storage or upstream water level regulation is required, the inflation system injects compressed air or water into the dam bag. As the bag expands vertically and horizontally, it forms a curved or rectangular barrier across the watercourse, raising the upstream water level to the desired height (typically 1–5 meters for most rubber dams, as material strength limits higher heads). The dam bag’s flexibility allows it to adapt to minor foundation settlements or fluctuations in water pressure without cracking—an advantage over rigid dams.
• Flow-Passing State: When flood discharge, navigation, or aquatic organism migration is necessary, the deflation system releases the air or water from the dam bag. The deflated bag collapses onto the riverbed, lying nearly flush with the channel bottom. This eliminates obstacles to water flow, ships, or fish, and the process is significantly faster than adjusting rigid gates—usually taking 10–30 minutes, depending on the dam’s size.

• Air-Inflated Rubber Dams: Use compressed air as the medium, making them suitable for cold regions where water is prone to freezing (which could damage the dam bag).

• Water-Inflated Rubber Dams: Utilize local water sources for inflation, reducing reliance on air compressors and lowering operational costs in areas with abundant water resources.

  ---




3. Key Advantages

• Foundation Adaptability: Their flexible nature allows them to tolerate minor uneven settlement of the riverbed, eliminating the need for expensive foundation reinforcement (e.g., deep piles) required for concrete dams. This makes them particularly suitable for soft-soil or geologically unstable foundations.
• Cost-Effectiveness and Rapid Construction: The lightweight design reduces material and transportation costs—rubber dams are typically 30–50% cheaper than small concrete dams of similar capacity. Most components (e.g., prefabricated dam bags, standardized pumps) are factory-produced, and on-site installation takes only 1–3 months (compared to 6–12 months for concrete structures of the same scale).
• Minimal Environmental Impact: When deflated, the dam bag does not block natural water flow, sediment transport, or fish migration—preserving aquatic ecosystems more effectively than fixed dams. It also has a smaller footprint, avoiding large-scale excavation and habitat destruction.
• Simplified Maintenance: Minor damages to the dam bag (e.g., small punctures) can be repaired on-site using rubber patches and specialized adhesives, without draining the entire watercourse. Routine maintenance focuses on inspecting the dam bag for wear and testing the inflation system—requiring less labor and downtime than concrete dam upkeep.

  ---

4. Typical Applications

• Irrigation and Water Supply: Raising water levels in canals or small rivers to divert water for agricultural irrigation or rural/urban water supply. They are widely used in arid or semi-arid regions to capture seasonal rainfall and ensure consistent water access for crops.
• Urban Landscape and Recreation: Creating artificial lakes, ponds, or waterfront features in cities (e.g., park lakes, scenic waterways). When deflated, they can be temporarily removed to clean the water body or host outdoor events.
• Small-Scale Hydropower Generation: Acting as a low-head barrier to create a water level difference for small hydropower plants (≤10 MW). This makes them suitable for remote areas with limited access to grid electricity.
• Flood Control and Drainage: In urban drainage systems or small rivers, rubber dams can be quickly deflated during heavy rains to increase flood discharge capacity, reducing the risk of urban waterlogging.
• Waterway Navigation: Adjusting water levels in narrow rivers or canals to ensure navigability for small vessels (e.g., tourist boats, fishing boats). When not in use, the deflated bag does not hinder water flow or vessel movement.

  ---

5. Limitations and Operational Precautions

• Low Head Capacity: They are not suitable for high-water-head projects (typically >6 meters), as excessive hydrostatic pressure can cause the dam bag to rupture or deform permanently.
• Vulnerability to Physical Damage: The rubber surface is susceptible to abrasion from sediment, puncture by sharp debris (e.g., rocks, metal fragments), or tearing by floating objects. Installing robust trash racks and protective pads is critical to mitigating these risks.
• Weather Sensitivity: Prolonged exposure to strong UV radiation (from sunlight) or extreme temperatures (e.g., <-20°C in winter) can degrade the rubber material, reducing service life. Anti-UV coatings and thermal insulation (for cold climates) are often applied to extend the dam’s lifespan (typically 15–25 years).
• Dependence on Inflation System: A power outage or pump failure can disrupt inflation/deflation operations. For critical projects (e.g., flood control), backup power supplies (e.g., diesel generators) and redundant pump systems are recommended to ensure reliability.

  ---
