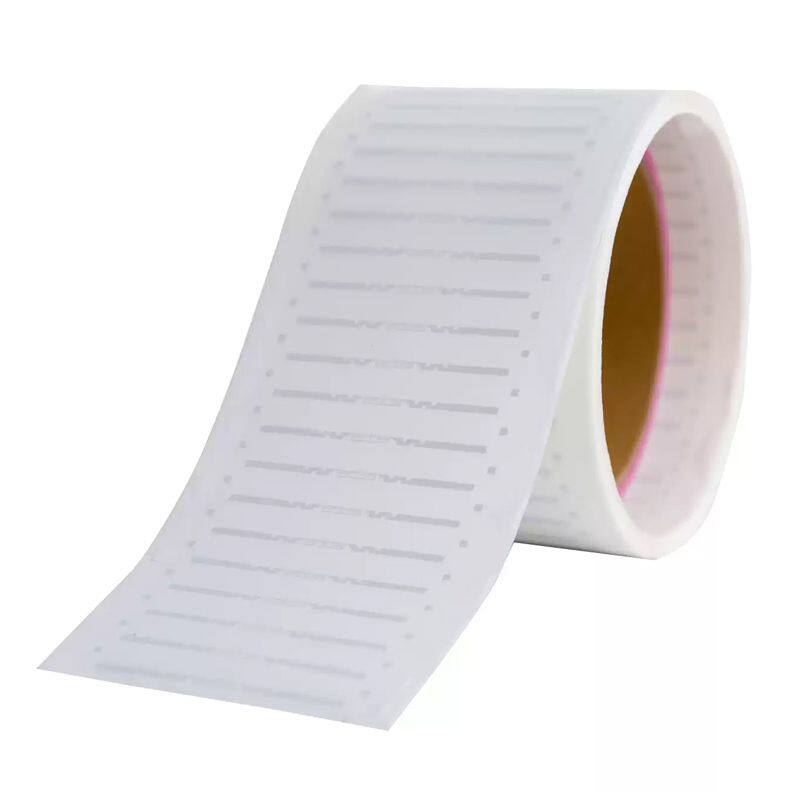

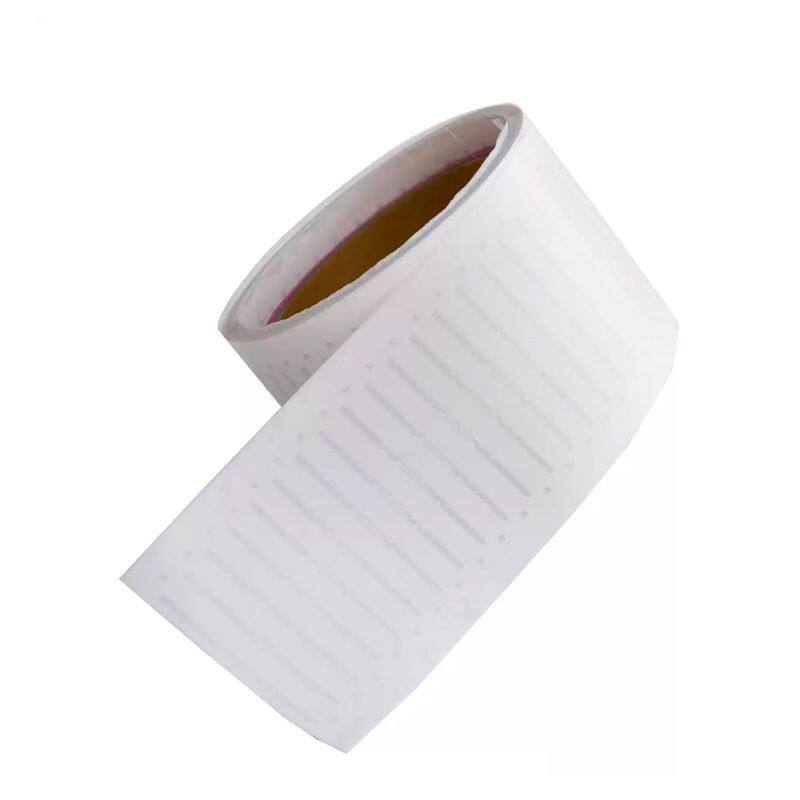

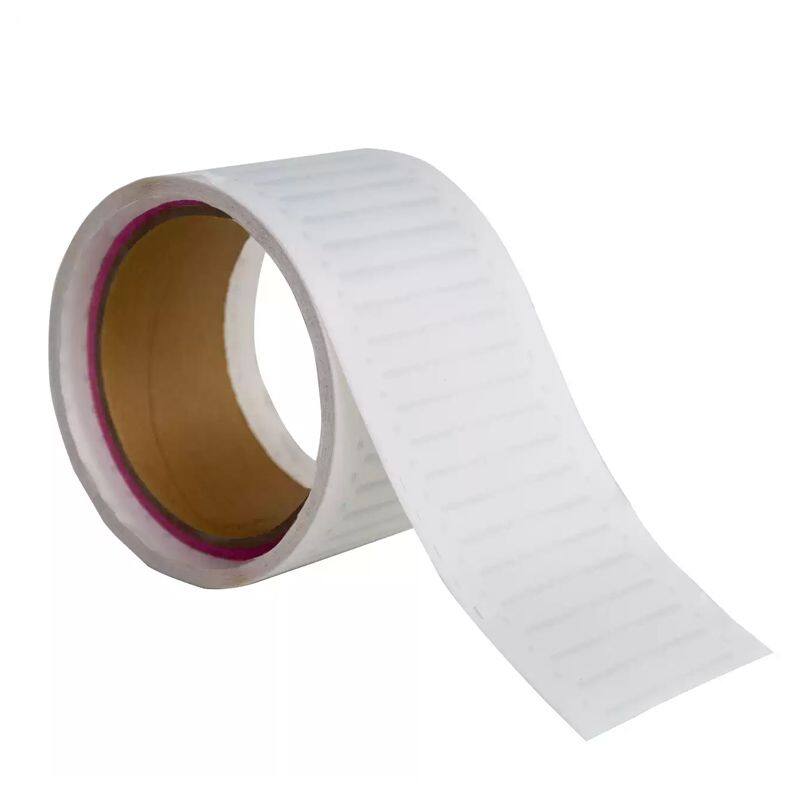

Smart Library UHF Book Tags, Electronic Tags, Library RFID Book Management

Tag frequency: 840MHz～960MHz (UHF);

The tag can read and write information in a non-contact manner;

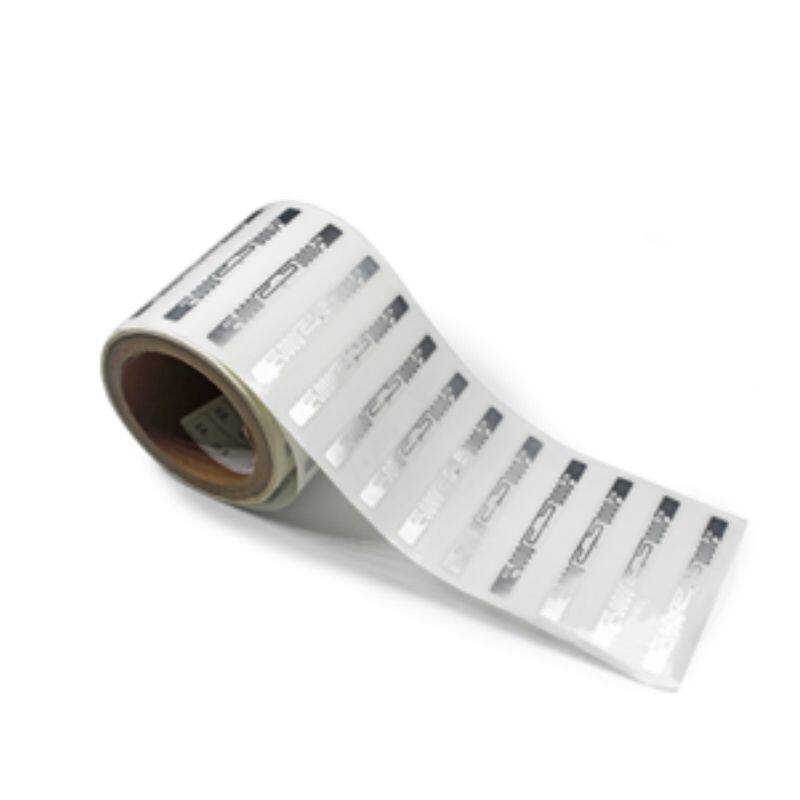

Tag antenna: aluminum etched antenna, antenna PET thickness 38μm +7μm/-2μm, aluminum film thickness 30μm±2μm;

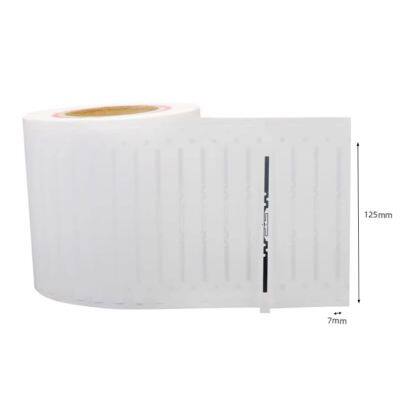

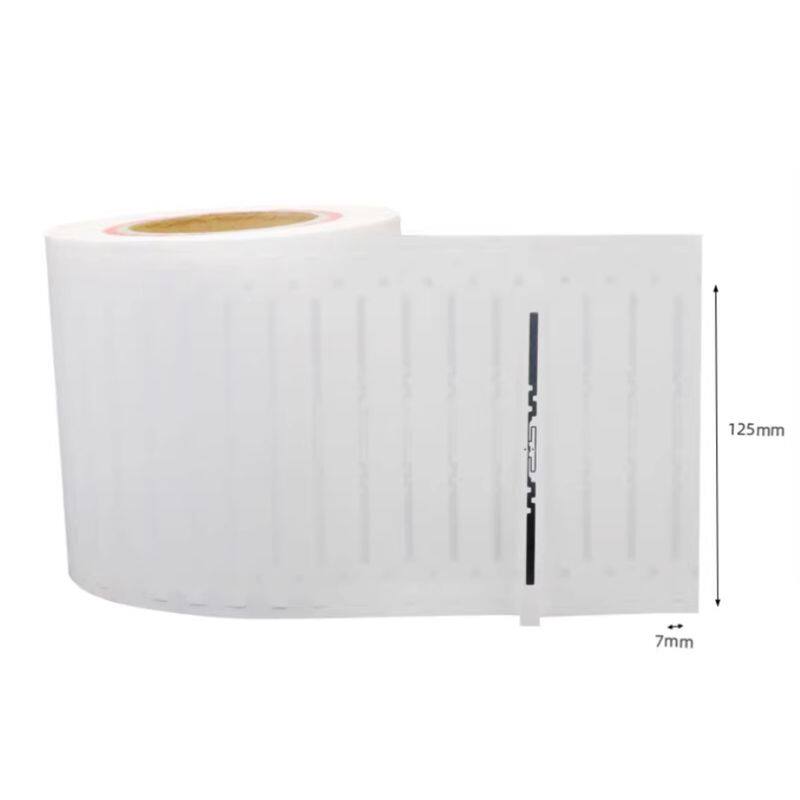

Book tag size: 125mm×7mm (length x width) (tolerance +/-5mm);

Effective erasing and writing times: ≥100,000 times;

Memory capacity: ≥96 bits;

Chip: U9/U10/H9/H10 or equivalent chips;

Non-contact reading and writing of information;

Anti-collision mechanism: ≥10 tags/second;

Unique serial number, with anti-collision mechanism, supporting multi-tag operation;

The tag is a passive tag, containing encryption control logic and communication logic circuits;

Equipped with an internal memory, where the stored information can be read and written repeatedly;

The tag has high security to prevent leakage of information stored in it;

Effective reading distance of book tags: self-service lending and returning equipment ≤250mm, RFID security gate ≤800mm;

Paper used for book tags: self-adhesive coated paper encapsulation;

The tag has its own self-adhesive, using neutral adhesive with a pH value between 6-8, which does not damage the surface of the file when pasted.
