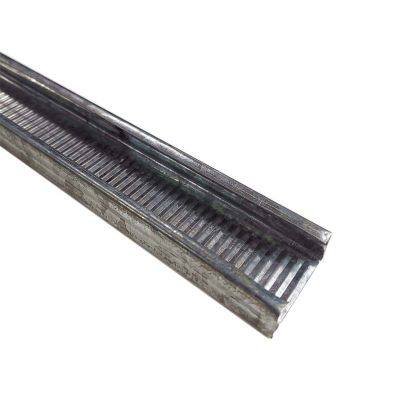

Light Steel Construction Galvanized Furring Channel Wall Framing Profile Ceiling Grid Components

Partition

Component name

Specification (mm)

Thickness (mm)

Length (mm)

Stud

41*32

0.4--1

3050

64*32

76*32

92*32

92*41

100*35

Track

41*25--40

0.4--1

3050

64*25--40

76*25--40

92*25--40

100*25--40

Corner bead

32*32

0.3--0.5

3050

Ceiling

Component name

Specification (mm)

Thickness (mm)

Length (mm)

Main channel

38*12

0.4--0.8

3660 or any other length

37*20

Furring channel

58*34*16

64*32*22

47*17

52*25*15

2)Specification of Malaysian market

Partition

Component name

Specification (mm)

Thickness (mm)

Length (mm)

U channel

41*23

0.3-0.5

2440, 2740, 3050

44*22

48*22

50*23

75*24

Roof and Ceiling

Component name

Specification (mm)

Thickness (mm)

Length (mm)

C section

75*34*36

0.7--1

3660--5800

100*50

Batten

58*35*23

0.5--0.8

3660-5800

65*32*26

84*30*32

Furring Channel

30*9

0.25-0.3

3660

34*11

3)Specification of Middle East market

Partition

Component name

Specification (mm)

Thickness (mm)

Length (mm)

Stud

50*35/40

0.5--1

3000

70*32/35

75*35/40

100*35

Track

50*25--50

0.5--1

3000

70*25--50

100*25---50

Ceiling

Component name

Specification (mm)

Thickness (mm)

Length (mm)

Main channel

38*10--12

0.38--0.5

3000

Furring channel

64*32*22

70*35*22

80*48*22

0.7

4000

4)Specification of Eastern Europe market

Partition

Component name

Specification (mm)

Thickness (mm)

Length (mm)

Stud

50*50

0.3--0.7

3000

75*50

100*50

Track

50*25--50

75*25--50

100*25--50

Ceiling

Component name

Specification (mm)

Thickness (mm)

Length (mm)

Furring channel

60*27

0.5--0.7

3000

Wall angle / Track

28*27

0.5--0.7

3000

5)Specification of Myanmar market

Partition

Component name

Specification (mm)

Thickness (mm)

Length (mm)

Stud

75x35

0.4--0.6

2900

65x32

Track

76x25

66x25

Roof and Ceiling

Component name

Specification (mm)

Thickness (mm)

Length (mm)

C section C section

75x34x36

0.7--1.5

5800

100x50x50

Batten Batten

64x24x24

0.4--0.6

5800

65x32x26

Furring channel / C-line

35x12

0.3--0.5

3960

Main channel

18x28

0.5--0.8

3050

Furring channel

50x17

0.4-0.5

6)Specification of Thailand market

Partition

Component name

Specification (mm)

Thickness (mm)

Length (mm)

Stud

75x35

0.4--0.55

2400, 3000

65x32

Track

76x25

66x25

Roof and Ceiling

Component name

Specification (mm)

Thickness (mm)

Length (mm)

C section

75x34x36

0.7-1.5

6000

100x50x50

Batten

65x25x26.5

0.4-0.6

65x32x26

Furring channel / C-line

35x12

0.3-0.5

4000

7)Specification of Philippines market

Partition

Component name

Specification (mm)

Thickness (mm)

Length (mm)

Stud

50*32

0.4--0.8

3000

64*32

75*35

92*35

100*35

Track

50*25--50

0.4--0.8

3000

64*25--50

75*25--50

92*25--50

100*25--50

Roof and Ceiling

Component name

Specification (mm)

Thickness (mm)

Length (mm)

C section

100*50

0.7--1.5

3000

150*50

Main channel

38*12

0.5--0.8

3000

Furring channel

50*19

0.4--0.5

3000

8)Specification of Australian market

All Australia products will be made by galvanized sheet with zinc coating 275g/m2

Partition

Component name

Specification (mm)

Thickness (mm)

Length (mm)

Stud

51x33.5x35.5

0.5--0.75

2700,3000,3600,4200,4800,6000

64x33.5x35.5

76x33.5x35.5

92x33.5x35.5

Track

52x32/28

0.5--0.75

3000

65x32/28

77x32/28

93x32/28

 MPW 10 H Stud

12.5X40

0.3-0.5

3000-6000

 MPW 10 H Stud

 25X35

 MPW 10 U KAP

 15X25

 MPW 10  π Track

 55X25

 V-angle bead

 30X30

 L -angle bead

 30X6

 L-angle bead

 30X10

 L -angle bead

 30X13

 L -angle bead

 30X16

 J -angle bead

 30X10X13

 Z -angle bead

 30X10X10

 Z -angle bead

 30X10X6

Roof and Ceiling

Component name

Specification (mm)

Thickness (mm)

Length (mm)

Main channel

25x21

0.75

3600,4800,6000

Furring channel

51x38x28

0.5

2700,3000,4800,6000

51x38x16

C channel

36x16

0.45

3000,3600

Wall angle

35x16x13

0.5

3000

35x28x20

Batten

94x42x40

0.55/0.75

4800,6000
