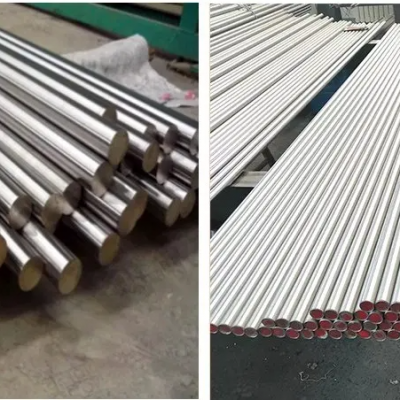

Quality Guarantee 304 Length Can Be Customized Stainless Steel Round Bar

Introduction


F51 duplex steel has excellent corrosion resistance, increased resistance to chloride attack and good resistance to stress corrosion cracking. F51 tensile and yield strength is higher than conventional austenitic or ferritic grades of stainless steel. It has good weldability and good formability.

Duplex steels contain both ferritic and austenitic microstructures. They have a high chromium content and a moderate nickel content. They also caontain Molybdenum. F51 material is too low in nickel to produce a fully austenitic structure, thus producing the duplex microstructure (ferrite and austenite). The main advantage of duplex F51 / 1.4462 / UNS 31803 stainless steel is the combination of properties given by both the austenitic and ferritic structure (austeno-ferritic).

F51 Stainless Steel Applications

• Process industry components in sulphuric acid, phosphoric acid, ethylene oxide, polypropylene & PVC production

• Equipment handling organic & fatty acids, chemical storage, tankers, heat exchangers

• Marine industry and shipbuilding propellers, shafts, rudders, shaft seals, pumps, bolts, fasteners, valves, instrumentation

• Oil and chemical tankers

• Oil & Gas industry pumps, valves, pipe, vessels, wellhead equipment, subsea equipment, separators, heat exchangers

• Pollution control systems, effluent scrubbing, flue gas desulphurisation (FGD)

• Waste water treatment, sour water purification

• Pulp & paper industry applications such as pulp liquor heaters, bleach tower linings, digesters, brownstock washers

• Food industry applications including brewery piping, evaporators, hot liquor tanks, presses

F51 Stainless Steel Standards
▪ ASTM A182 F51 / F60
▪ ASTM A276 F51 / F60
▪ ASTM A479 F51
▪ AISI F51
▪ BS 318S13 (Wrought)
▪ BS 332C15 (Cast)
▪ WS 1.4462
▪ WS 1.4470
▪ X2CrNiMoN22.5.3
▪ AFNOR Z2CND22.05Az
▪ UNS S31803
▪ UNS S32205
▪ SAF2205 - SANMAC (Brand name)
▪ URANUS 45N (Brand name)
▪ FALC223 (Brand name)

F51 Stainless Steel Chemical Composition

F51 stainless steel pipe sizes and specifications
Grade	F51
Specification	EN, DIN, JIS, ASTM, BS, ASME, AISI, ISO
Standard	ASTM A276/ASME SA276, ASTM A479/ASME SA479 & ASTM A164/ASME SA164 .
Stainless steel round Bar	Diameter: 2mm - 600mm
Stainless steel bright Bar	Diameter: 2mm - 600mm
Stainless steel hex Bar	Dimension: 6mm - 80mm
Stainless steel square bar	Dimension: 3.0 - 180mm
Stainless steel flat bar	Thickness: 0.5mm - 200mm, Width: 1.5mm - 250 mm
Stainless steel angle bar	as requirements
Length	Normally 6m, or produce as requirements
Surface	Black, Bright. Peeled and Polished, Solution annealed.
Delivery condition	cold drawn, hot rolled, forged, grinding, centerless grinding
Tolerance	H8, H9, H10, H11, H12, H13,K9, K10, K11, K12 or as per clients' requirements
