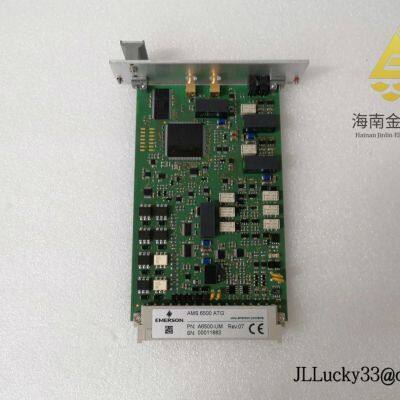

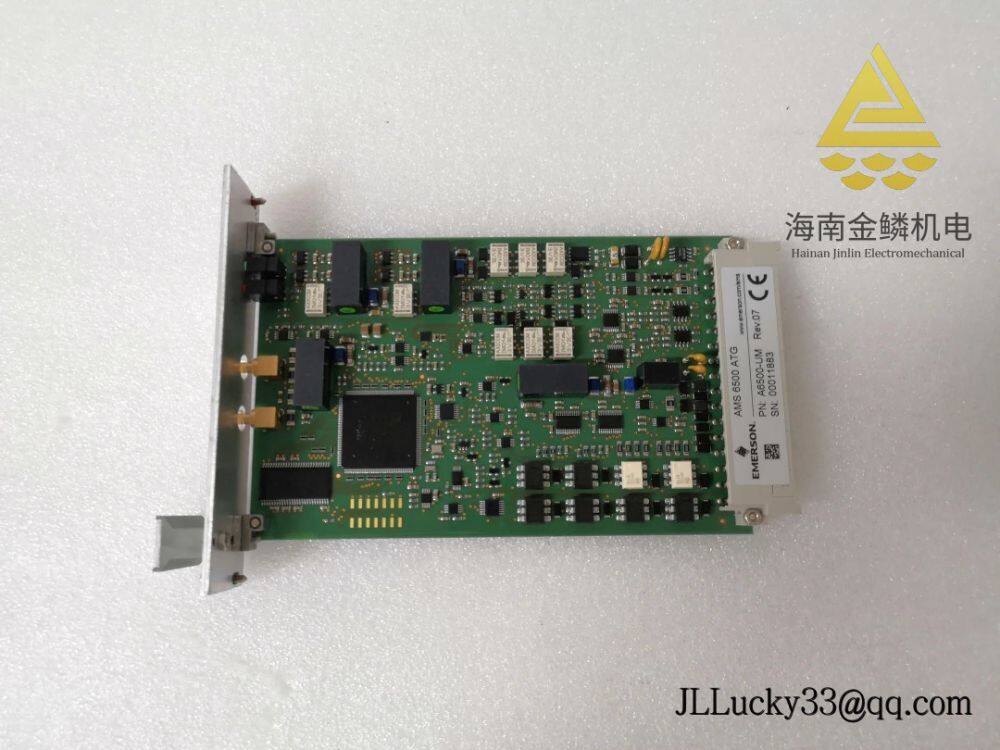

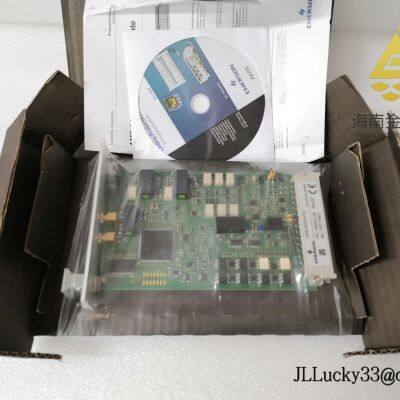

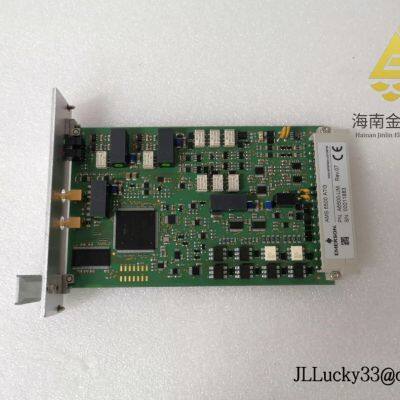

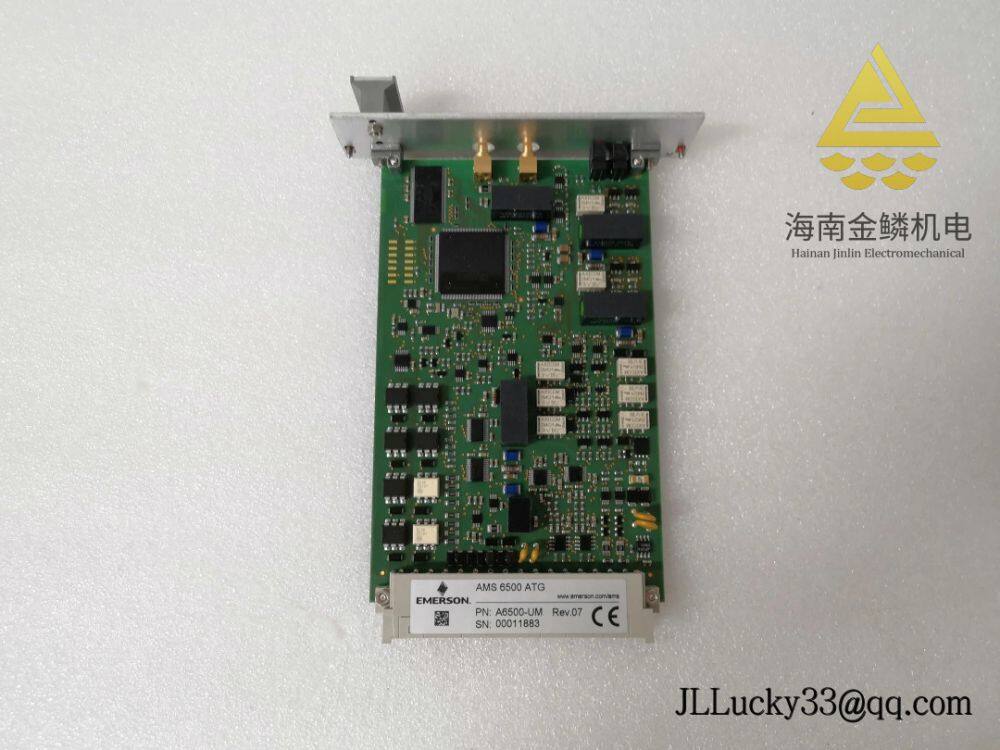

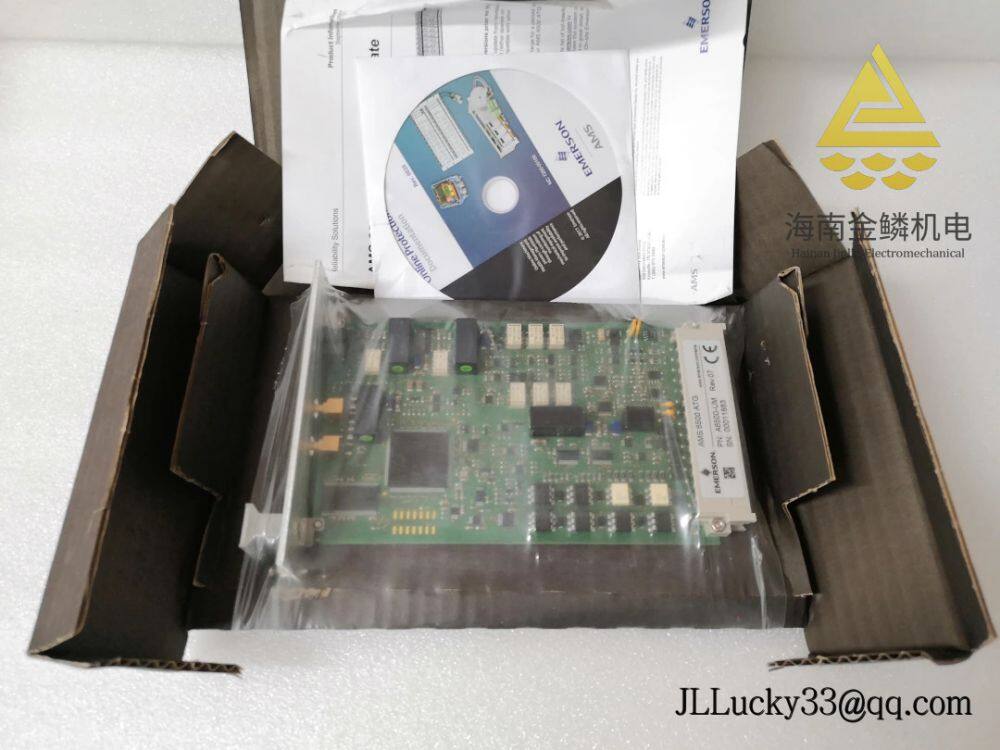

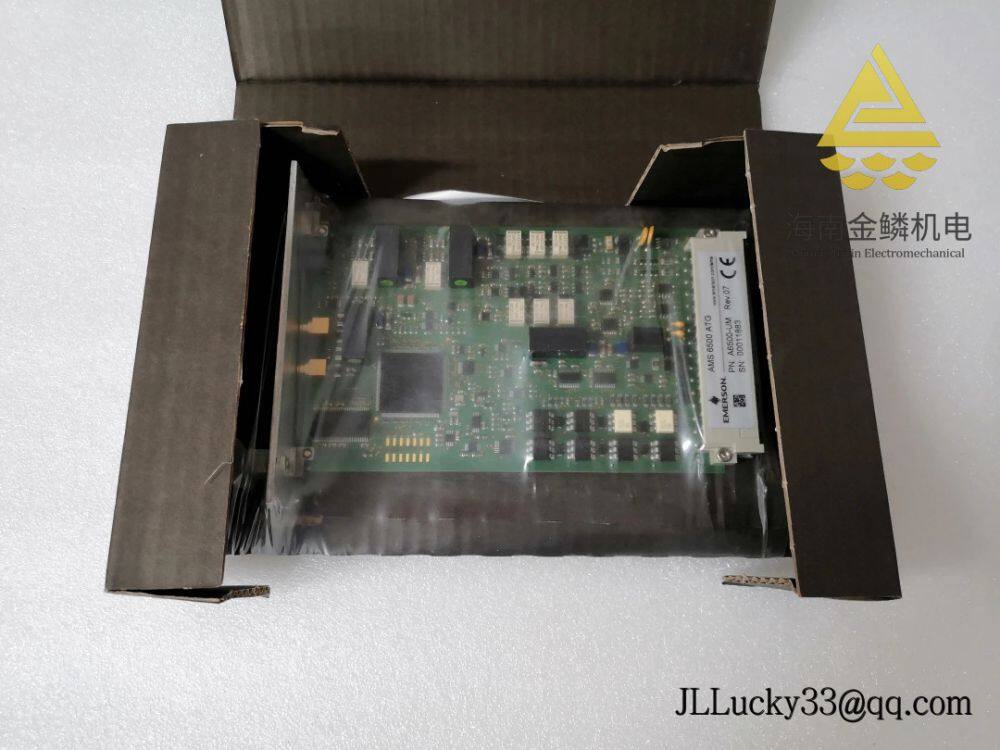

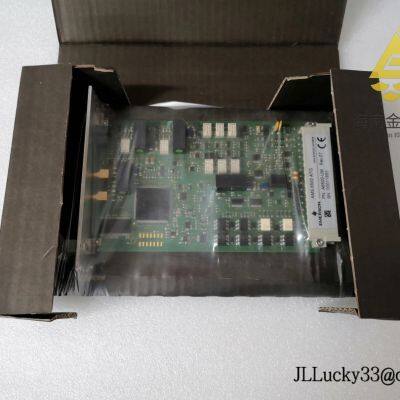

Emerson A6500-UM – Universal Monitoring Module for AMS 6500 Machinery Protection

The Emerson A6500-UM is the universal monitoring module used in the AMS 6500 rack to protect and monitor critical rotating equipment in line with API 670 practices.    From my experience, it’s typically deployed on compressors, turbines, pumps, and large fans where you need both robust protection and reliable condition data without babysitting the system.

You might notice that the “UM” brings flexible, multi-sensor support—proximity probes for shaft measurements and IEPE accelerometers for bearing vibration—so a single module can cover different machine trains. It seems to be a sweet spot for plants standardizing on one protection platform across mixed assets.

• Universal dynamic inputs – Accepts common vibration transducers such as IEPE accelerometers/velocity sensors and eddy-current proximity probes for shaft vibration, position, and clearance.

• Protection-grade processing – Configurable alarm/trip logic with band-pass filters and amplitude/phase processing suitable for API 670 machinery protection when used in the AMS 6500 system.

• Phase / speed reference support – Works with phase reference (Keyphasor-style) for synchronous measurements, balancing, and 1× diagnostics; typically via the rack/system reference channels.

• Buffered outputs – Buffered vibration signals available for portable analyzers and diagnostic recorders, helping maintenance teams validate events quickly.

• Analog outputs and relays (via system) – 4–20 mA proportional outputs and protection relays provided through the AMS 6500 rack architecture for easy DCS/PLC interlock integration.

• Centralized configuration – Module configuration and trending through the AMS 6500 software environment; reduces set-up time and keeps fleet configurations consistent.

• Rugged rack integration – Designed for continuous operation in industrial cabinets; in many cases the module is field-replaceable to minimize downtime.

•


The A6500-UM is typically selected for:

• Refinery and petrochemical compressors, turbines, and gearboxes needing API 670 protection with plant DCS integration.

• Power generation balance-of-plant assets (ID/FD fans, boiler feed pumps) where bearing health and trip integrity matter.

• Midstream gas compression skids and pipeline stations with mixed sensor types across trains.

• Pulp & paper and mining operations seeking consistent rack-based protection across multiple lines.

• Standardization – One module type can cover different sensor technologies, simplifying spares and training.

• Compliance-ready – Supports API 670-style protection philosophy; eases spec alignment and audit trails.

• Low lifecycle cost – Buffered outputs and native 4–20 mA reduce add-on hardware; configuration tools cut commissioning hours.

• DCS/PLC friendly – Clean handoff to your control system via rack analogs and Ethernet protocols; fewer integration surprises.

• Serviceability – In many cases, modules are swap-friendly with clear diagnostics, which helps maintenance teams isolate issues faster.

“We replaced a legacy monitor with A6500-UMs across two compressor trains. Commissioning was faster than expected and the buffered outputs made field checks painless.” — Maintenance Supervisor, Gulf Coast petrochem

• Cabinet & environment – Install in a vibration-protected, ventilated control cabinet; maintain ambient within specified limits and allow front clearance for wiring.

• Wiring practices – Use shielded twisted pairs for dynamic signals; ground shields at one end only; route sensor cables away from high-voltage lines to reduce noise.

• Sensor setup – Verify transducer compatibility (IEPE excitation, probe target material/gap) and complete phase reference alignment before enabling trips.

• Commissioning – Calibrate 4–20 mA ranges, validate alarm/trip setpoints, and confirm relay logic to your interlock philosophy; document baseline plots.

• Routine care – Periodically review buffered waveforms, clean terminals, check probe gaps, and apply approved firmware updates via the AMS 6500 configuration software.

• Safety – Follow lockout/tagout when changing wiring; verify that trip circuits are bypassed and alarms inhibited during tests.

• Designed for use in protection applications aligned with API 670 when integrated in the AMS 6500 system.

• Typical industrial approvals include CE and RoHS; UL/cUL for control equipment is commonly available on the system level.

• Manufacturer’s standard warranty applies; extended coverage and startup services are usually available on request.

If you’re consolidating platforms or planning an API 670 upgrade, the A6500-UM gives you a flexible path—one that typically reduces spares, shortens commissioning, and keeps diagnostics at your fingertips.
