Help Center25W Wireless Power MPP Transmitter Module 5V~20V Input Voltage Range
Related Products
-
SC8746 36V / 140W Buck-Boost Converter With Low-Side MOSFETs Integrated and I2C InterfaceNegotiableMOQ: 3000 Blades -
SC8808 Synchronous, 80V Bi-directional Buck-Boost Charger Controller With I2C Interface and MPPTUS$ 3.5 - 4MOQ: 3000 Blades
-
SC8329QFNR 20A Switching Current, Up to 17V Output, Synchronous Boost Converter With Isolation NMOS DriverUS$ 1.85 - 2.3MOQ: 3000 Units
-
SC8815QDER High Efficiency, Synchronous, Bi-Directional Buck-Boost Charger Controller With I2C InterfaceUS$ 2.2 - 3MOQ: 3000 Units
-
SC8815AQDER High Efficiency, Synchronous, Bi-Directional Buck-Boost Charger Controller With I2C InterfaceUS$ 2.9 - 3.3MOQ: 3000 Units

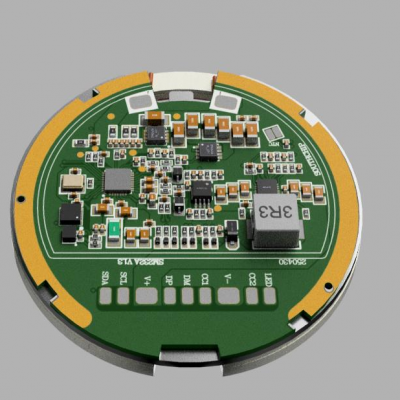

Descriptions SM232A module is a 25W wireless power transmitter which supports multiple QI wireless power profiles. Including basic power profile (BPP) and magnetic power profile (MPP). The module integrates a powerful Qi protocol SOC- SC96019 which integrates high resolution full bridge controller, full bridge power MOSFETs, multiple channels ASK demodulation circuit, multiple channels ADCs, multiple GPIO ports, Q value detection circuit and so on. The module supports multiple power source, such as DC source, USB-PD and HVDCP. And integrates a Buck-boost converter ‘SC8723B’ for inverter voltage adjustment to meet different power requirements. The module supports I2C interface and can be easily connected to other system as a submodule for control. The module integrates multiple protection function, such as foreign object detection (FOD), over current protection (OCP), over temperature protection (OTP) and low voltage protection (LVP). Features • 5V~20V input voltage range • Support USB PD3.0 • Support HVDCP interface • 25W maxpower output • Compliant WPC QI2.2 protocol • Support BPP/MPP 15Watt/ MPP 25Watt protocol • Support I2C slaver interface • Integrated Buck-boost converter • Integrated foreign object detection (FOD) • Over current protection (OCP) • Integrated over temperature protection (OTP) • Integrated low voltage protection (LVP)
