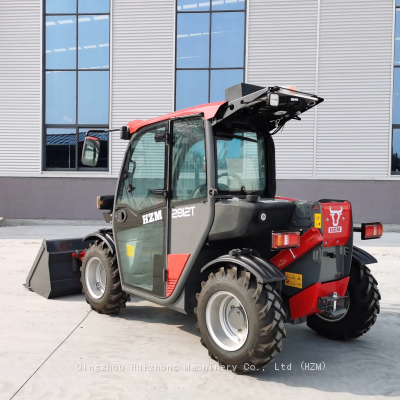

2025 China Mini Diesel Forklift Telehandler HZM 2812T 1.2t Telescopic Boom Truck

Qingzhou Huizhong Machinery Co., Ltd (HZM)

US$ 24000 - 24500 MOQ: 1 Unit

Key Specifications

Type:

Small Loader

Certification:

TUV, ISO, ROHS, CE

Warranty:

One year

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

30 days

Type Small Loader

Certification TUV, ISO, ROHS, CE

Warranty One year

Walking Mode Wheeled

Load and Unload Mode Front Discharge

Condition New

Rated load 1-3t

Transmission Power

Trademark HZM

Origin China

EUROPE TYPE NEW Model Design HZM2812T 1.5ton MINI Telehandler Made in China

Main Features

1) Low height design on the whole wheel loader ,fit small place work ;

2) Fix / maintance cost is low , also is very easy ;

3) Turning radius is very small , save work time , better performance ;

4) Can choice high speed gearbox for different work environment ;

5) More fit Europe rule , like rear power link / adjustable trailer pin / different engine choice and so on ;

Product Description

OPERATIONAL DATA	HZM2812T	HZM2812T PLUS
Max. payload (KG)	1250	1500
Bucket capacity (m³)	0.45	0.45
Operating weight (KG)	2750	2750
Tires	10.0/75-15.3 or 29X12.5-15	10.0/75-15.3 or 29X12.5-15
LxWxH(mm)	3945x1564X1995
Max dumping height(mm)	3570
Overhead loading height of bucket with telescope extended (mm)	4165
Overhead loading height of pallet fork with telescope extended (mm)	4300
ENGINE
Manufacturer	Perkins	Yanmar
Model	403J-11T	3TNV86
Type	water-cooled, turbocharged, three-stroke, turbocharged	water-cooled, turbocharged, three-stroke, turbocharged
Rated power/ speed (KW)	18.4kW/2800r/min	32.4KW/3000r/min
Maximum torque	86	127
Displacement (L)	1.1	1.6
TRANSMISSION
Brand/Model	Italy PWG	Italy PWG
Type	Hydrostatic via universal joint shaft	Hydrostatic via universal joint shaft
Speed first gear (KM)	0-8 km/h	0-8 km/h
Speed second gear (KM)	0-16 km/h	0-20 km/h
Axle	Planetary-steering drive axle	Planetary-steering drive axle
WORK HYDRAULICS
Brand	PWG	PWG
Work pump	Gear pump	Gear pump
Discharge volume (L)	33.6	54
Pressure(Bar)	225	225
FILLING LEVELS
Fuel tank (L)	33	33
Hydraulic oil tank（L)	36	36
