Allen-Bradley 1756-CNB ControlNet Interface Module

Allen-Bradley 1756-CNB ControlNet Interface Module photo-1
Allen-Bradley 1756-CNB ControlNet Interface Module photo-2
Allen-Bradley 1756-CNB ControlNet Interface Module photo-3

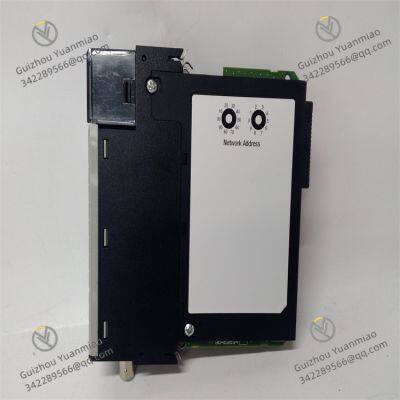

Allen-Bradley 1756-CNB ControlNet Interface Module photo-4
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -0°C to 60°C
Humidity 5% - 95% (non - condensing)
Power Input 24V DC

I. Overview


1756-CNB is an important control network communication module in Rockwell Automation's ControlLogix series, occupying a key position in the communication architecture of industrial automation systems. Its main responsibility is to build a communication bridge between the ControlLogix system and the ControlNet network, enabling efficient data interaction between various devices within the system and with external network devices.


With its stable and reliable performance, this module is widely used in various industrial scenarios, especially in fields with certain requirements for real-time and stability of communication, such as machinery manufacturing, food processing, logistics and warehousing industries. It can accurately and timely transmit the control instructions of the ControlLogix processor module to various executive devices, and at the same time, quickly feed back the on-site data collected by sensors, instruments, etc. to the processor, providing strong support for the precise control and efficient operation of industrial automation systems.


1756-CNB needs to be installed in the ControlLogix 1756 series rack, and work together with the processor modules, I/O modules, etc. in the series to form a complete industrial automation control system. Through close cooperation with other modules, it can realize seamless data flow and ensure the coordinated operation of the entire system.

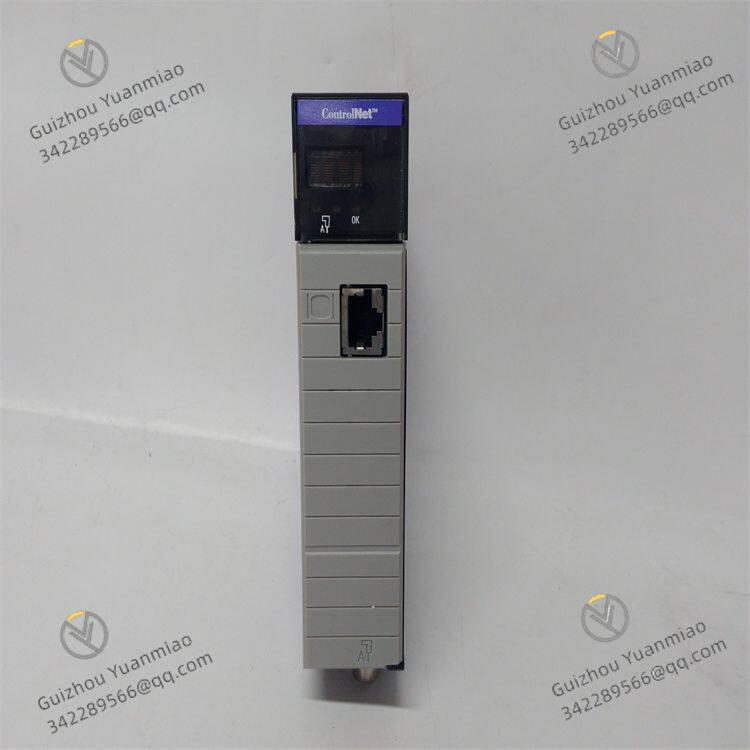

1756-CNB (4)


II. Technical Parameters


  1. Communication Protocol: Supports the ControlNet protocol, which is a high-speed control network protocol suitable for the industrial control field. It can realize real-time data transmission and control information exchange between devices, ensure the orderly transmission of data in the network, and meet the basic requirements of industrial automation systems for real-time communication.

  2. Communication Rate: In accordance with the ControlNet protocol standard, the communication rate is 5Mbps. This rate can meet the data transmission needs in most industrial scenarios, ensuring that control instructions and on-site data can be transmitted quickly, and providing a guarantee for the real-time response of the system.

  3. Network Interface: Equipped with a standard ControlNet interface, it can be connected with other ControlNet devices (such as PLC, HMI, remote I/O stations, etc.), easily integrated into the ControlNet network environment, and realize interconnection and intercommunication between devices.

  4. Power Requirements: Usually powered by DC power supply, specific parameters refer to the product data sheet. Its power supply design focuses on stability, which can continuously provide reliable power support for the module in industrial environments and ensure the normal operation of the module.

  5. Environmental Adaptability Range:

    • Operating Temperature: Generally, it can work normally within the temperature range of 0°C to 60°C, and can adapt to common temperature changes in industrial production environments, maintaining stable performance in cold or hot workshop environments.

    • Relative Humidity: It can withstand 5% to 95% non-condensing relative humidity. In humid industrial environments, such as food processing workshops and water treatment plants, it can also operate stably and is not easy to degrade due to humidity problems.

  6. Dimension Specifications: Adopting the standard module size of the ControlLogix series, it can perfectly fit the ControlLogix 1756 series rack. The installation process is simple, no additional adaptation measures are needed, which is convenient for system integration and expansion.

  7. Node Capability: It supports being a node in the ControlNet network and can communicate with other nodes in the network. The specific number of supported nodes depends on the configuration of the entire network, which can meet the networking needs of small and medium-sized industrial networks.

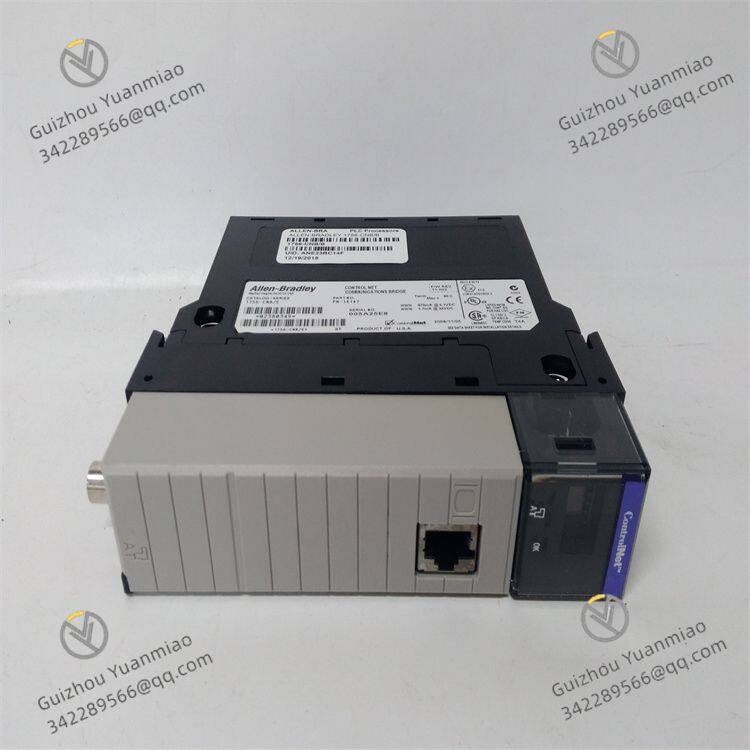

1756-CNB (2)


III. Functional Features


  1. Reliable Communication Transmission: 1756-CNB can provide stable and reliable communication services, ensuring accurate data transmission between the ControlLogix system and the ControlNet network. In industrial environments, even if there is a certain degree of electromagnetic interference, it can reduce data transmission errors through its own anti-interference design, ensure the continuity of communication, and lay the foundation for the stable operation of the system.

  2. Easy Integration and Configuration: As a standard module of the ControlLogix series, it has good compatibility with other modules in the series and can be easily integrated into the ControlLogix system. At the same time, the module can be conveniently configured and parameterized through Rockwell Automation's programming software (such as RSLogix 5000, Studio 5000), which reduces the difficulty of system integration and debugging and saves engineering time.

  3. Support for Deterministic Communication: The ControlNet protocol itself has the characteristics of deterministic communication. As a supporting module of this protocol, 1756-CNB can ensure that the data transmission time is predictable, enabling the control system to accurately obtain data and send instructions at predetermined time intervals, improving the accuracy of system control.

  4. Diagnostic Function: It has basic diagnostic functions and can monitor the operating status and communication situation of the module. When a communication failure or module abnormality occurs, fault information can be obtained through programming software or related equipment, helping maintenance personnel quickly locate problems, shorten troubleshooting time, and improve system maintenance efficiency.

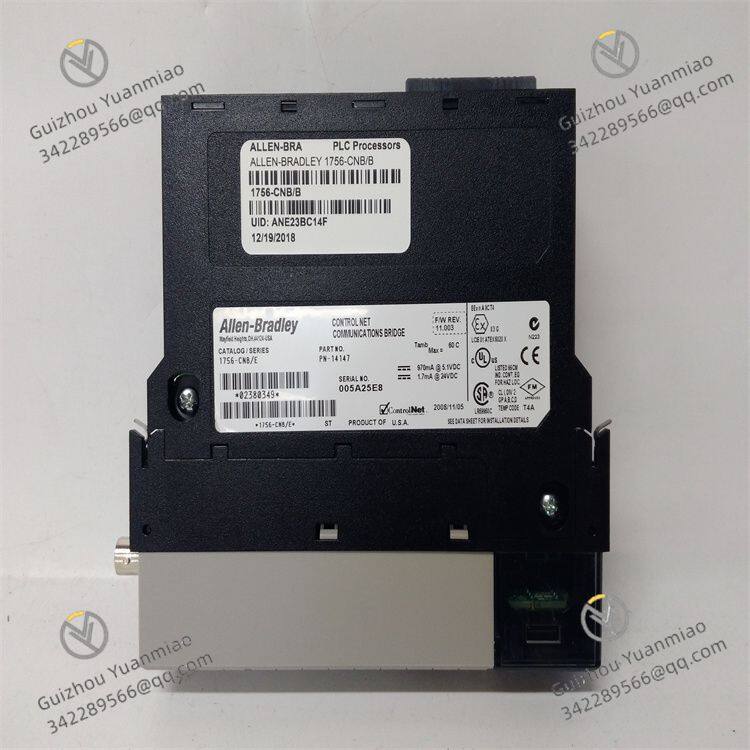

1756-CNB (3)


IV. Application Scenarios


  1. Machinery Manufacturing Industry: In mechanical processing production lines, 1756-CNB can be used to connect the ControlLogix control system with various equipment on the production line, such as CNC machine tools, robots, conveyors, etc. It can transmit the instructions of the control system to the equipment, and at the same time feed back the operating status, processing parameters and other data of the equipment to the control system, realizing centralized monitoring and control of the production line, and improving production efficiency and processing accuracy. For example, in an automobile parts processing line, through the communication function of 1756-CNB, the control system can adjust the processing parameters of the machine tool in real time to ensure that the dimensional accuracy of the parts meets the requirements.

  2. Food Processing Industry: In the food production process, it is necessary to monitor and control parameters such as temperature, pressure, and flow in real time. 1756-CNB can transmit these parameters collected by sensors to the ControlLogix control system. The control system issues control instructions according to the preset process requirements, and adjusts the production process through actuators (such as valves, pumps, etc.). For example, in a beverage filling production line, it can ensure the real-time transmission of parameters such as filling volume and temperature, and ensure the stability of product quality.

  3. Logistics and Warehousing Automation: In automated three-dimensional warehouses, 1756-CNB can be used to connect the control system with stackers, conveyors and other equipment to realize remote control and status monitoring of the equipment. Through its communication function, the control system can keep abreast of the equipment's position, operating status and other information, and reasonably dispatch the equipment to carry out goods access operations, improving the operational efficiency of the warehouse.

  4. Water Treatment Industry: In the automation system of water treatment plants, 1756-CNB can connect the control system with various water treatment equipment (such as filters, dosing pumps, valves, etc.) to realize remote monitoring and control of the water treatment process. It can transmit water quality monitoring data, equipment operating status and other information to the control system, and the control system adjusts equipment operating parameters according to this information to ensure that the water treatment effect meets the standards.
