Product Details
| Type | Combustion Engine | Fuel | Diesel | |
| Piston Movement | Reciprocating | Number of Strokes | Four-Stroke | |
| Cylinder Arrangement Form | L | Number of Cylinders | 6-Cylinder |
Product Description

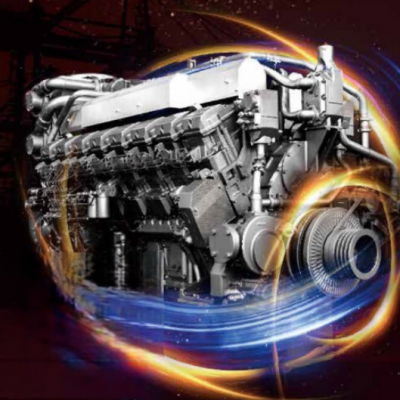

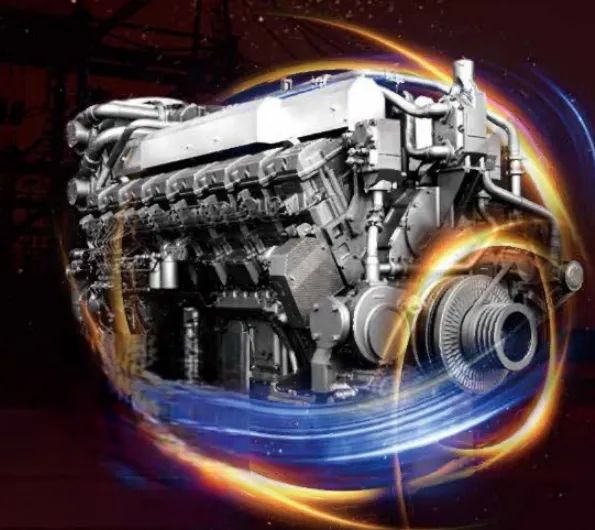

SME S16R2-PTAW-C Diesel Engine
·High-strength engine block and crankshaft connecting rod system, high reliability with high power.
·Production of high quality parts for engine. The core parts (turbocharger, high pressure fuel pump and fuel injector) are produced by MHI.
·The advanced intake system and fuel system of MITSUBISHI, high fuel injection pressure, good atomization, full combustion, perfect matching of air intake and fuel supply, and improve economic performance and emission performance.
·Large displacement, high power, high cost performance and outstanding competitiveness. Cases: large buildings, power plants, hospitals, data centers.
SME S16R2-PTAW-C Diesel Engine
TECHNICAL PARAMETERS
Model S16R2-PTAW-C Engine Type Direct injection/4-storke/Water-cooled Intake Type Turbo Charger/Water-air intercooler No.of Cylinders 16-V Bore*stroke mm 170*220 Displacement L 79.9 Comperession Ratio 14.0:1 Prime Power without fan kW 1960 Standby Power without fan kW 2167 Prime power of genset kW/KVA 1800KW(2250KVA) Standby power of genset kW/KVA 2000KW(2500KVA) Rated speed r/min 1500 Type of govemor Electrical Governor Fuel Consumption L/h 464 Exhaust Air pipe diameter mm 358 Exhaust Gas flow m³/min 506 Exhaust temperature ℃ 550 intake Air flow m³/min 191 Oil total L 260 Oil consumption rate g/kw.h 0.4 Flywheel Teeth 193teeth Flywheel Housing SAE No.00 Flywheel SAE 21in Dimension (L×W×H) mm 3118*1479*2030 Gross weight Kg 8200
