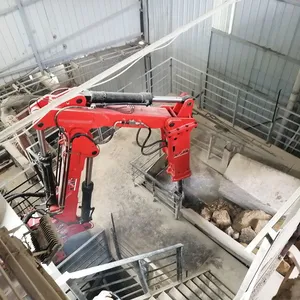

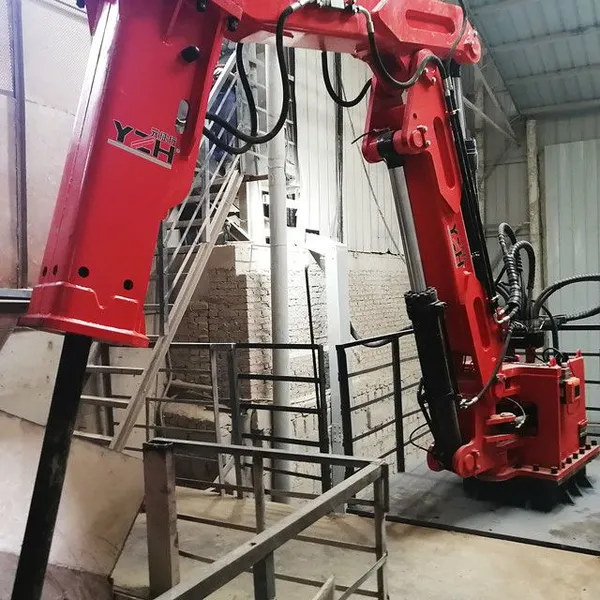

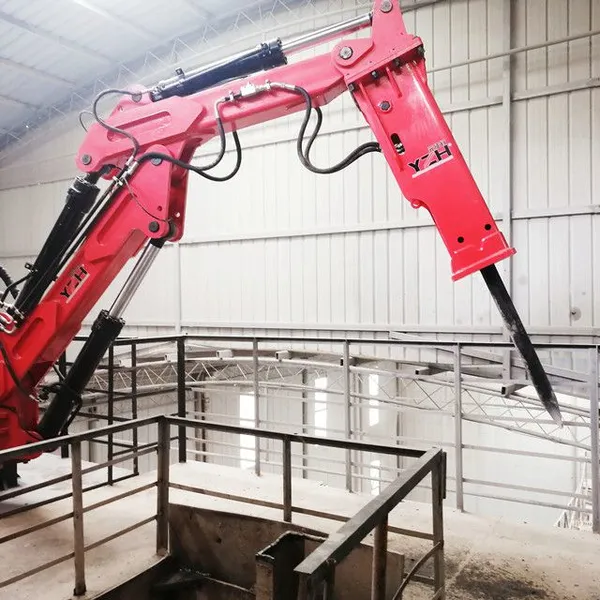

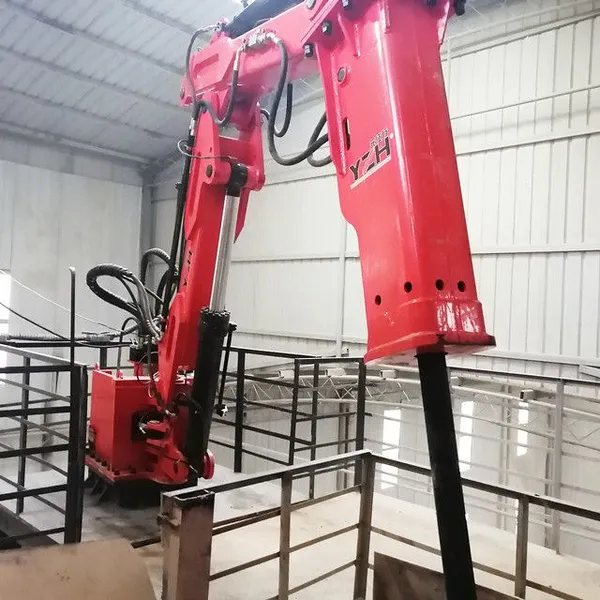

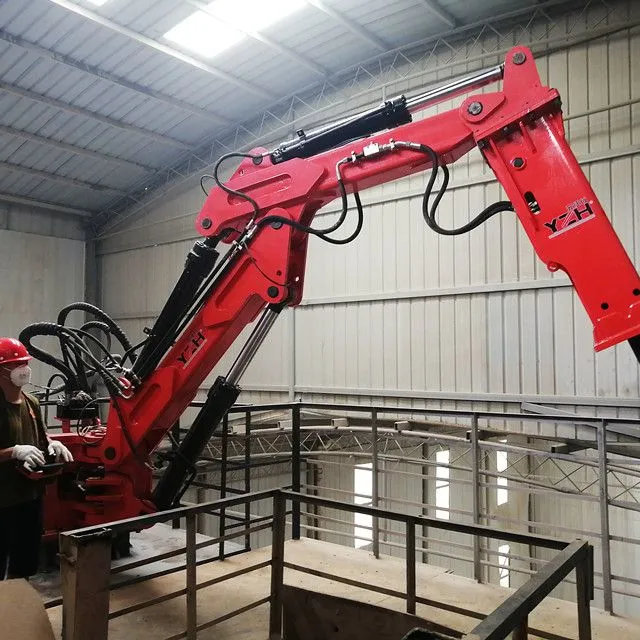

Pedestal rock breaker boom system
In the mining production scenario, the crusher feeder and underground chute mouth lattice screen blockage jamming, as well as the crushing of oversized ore problems, seriously restricting the production efficiency. YZH line launched a pedestal rock breaker boom system has become the key to break the game, which model BA300 pedestal rock breaker boom system is with excellent performance to stand out, the next will take you in-depth understanding.
Characteristics of BA300 pedestal rock breaker boom system
1.Section area of Boom:200×200×16MM
2.Boom weight (without hammer):1411kg
3.Rectangular tube design, steel structure is more stronger
4.Reinforced pivot point, oversized pin shaft, and heat-treated steel bushings ensure superior strength and precision
5.170°rotation
Advantages of pedestal rock breaker boom system
Green environmental protection and energy saving.pedestal rock breaker boom system can achieve the dual purpose of no emission pollution and low energy consumption. pedestal rock breaker boom system adopts advanced hydraulic power system, in the process of crushing materials, mainly through the electricity driven hydraulic to work, to avoid fuel to provide power to the atmospheric environment pollution. In terms of energy consumption, the pedestal rock breaker boom system uses optimised hammer design and energy efficient motor, combined with the intelligent control system to accurately adjust the operating power of the pedestal rock breaker boom system according to the characteristics of the material and crushing demand, avoiding the waste of energy. Compared with the traditional crusher, its energy consumption can be reduced by 30% - 50%. This low energy consumption is not only in line with the goal of energy saving and emission reduction, but also saves a lot of electricity and fuel expenses for enterprises and reduces production and operation costs.
Reduce the cost of use.Good maintenance performance is a highlight of the pedestal rock breaker boom system, which effectively saves the cost of use of the enterprise. pedestal rock breaker boom system adopts modular design concept, the structure of each component is simple, easy to disassemble and install. When the equipment malfunctions or needs to replace the worn parts, the maintenance personnel can quickly locate the problem and carry out targeted repair and replacement, which greatly shortens the maintenance time and reduces the production loss caused by equipment downtime.
Selection of strong and wear-resistant materials.In addition, the pedestal rock breaker boom system selects high-strength and excellent wear-resistant materials to manufacture key components, such as the liner of the crushing chamber, the hammer head, the rotary base, etc., which have relatively low wear and tear and prolong the replacement cycle after a long time of use. At the same time, the lubrication system of the pedestal rock breaker boom system is carefully designed and adopts centralised lubrication, which can provide lubrication for all moving parts in a regular and quantitative manner, effectively reducing the friction loss between the parts and further improving the service life of the equipment. According to statistics, compared with the same type of crusher, the maintenance cost of pedestal rock breaker boom system can be reduced by about 40%, which significantly improves the economic benefits of enterprises.
| Model No. | Unit | BA300 |
| Boom weight (without hammer) | kg | 1411 |

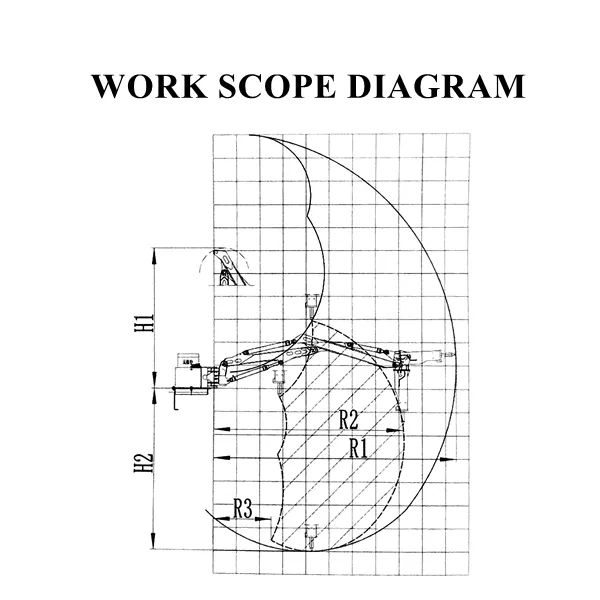

| Max.Horizontal working radius | mm | 4880 |
| Max.Vertical working radius | mm | 3270 |
| Min.Vertical working radius | mm | 1570 |
| Max.Height | mm | 2710 |
| Max .Working depth | mm | 3170 |
| Rotation | ° | 170 |
| Pedestal Size | mm | 1030×720 |
| Power of Hydraulic Power Unit |
Kw | 18/22/30 |
