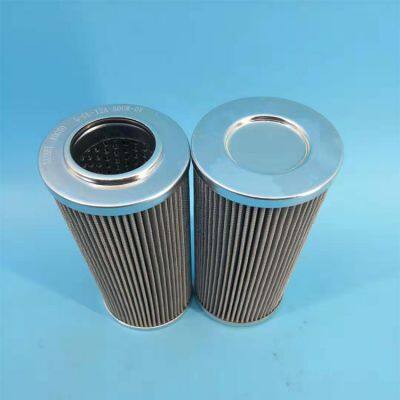

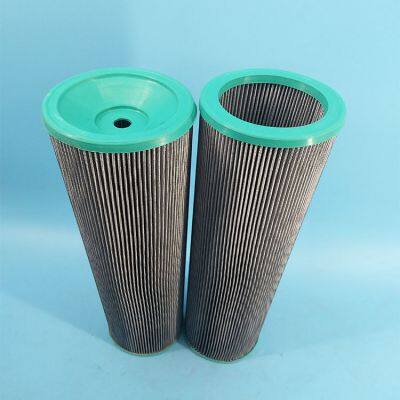

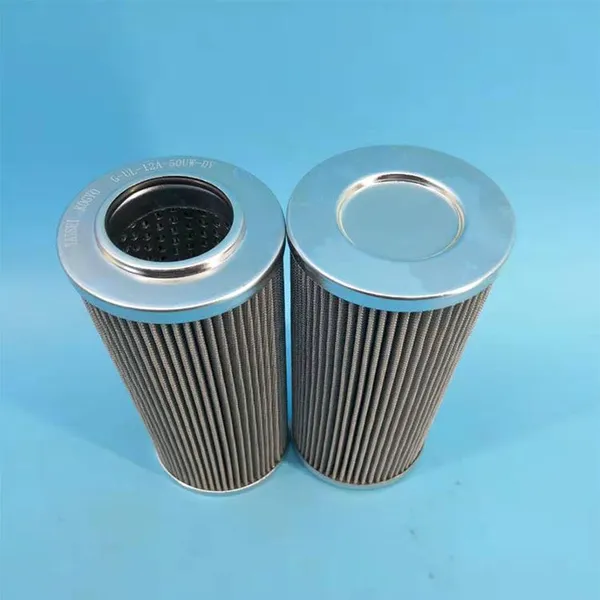

0060D020BN4HC 0060D010BN4HC Hydraulic Filter Element Industrial Equipment Machinery Use

0060D020BN4HC  0060D010BN4HC  Hydraulic filter element Industrial equipment machinery use

Technical parameters：

Filter material: glass fiber, stainless steel mesh, wood pulp filter paper

Filter accuracy: 1um~100um

Working pressure: 21bar~210bar

Sealing material: nitrile rubber ring, fluororubber ring

Working medium: general hydraulic oil

Working temperature: -10~+100℃

This product uses glass fiber, stainless steel mesh or wood pulp filter paper as filter material, with a filtration accuracy of 1-100μm and a working pressure range of 21-210bar. The design has the characteristics of large flow area, small pressure loss, and easy disassembly and cleaning. The sealing material can be selected from nitrile rubber or fluororubber ring. The product complies with international standards such as ISO 2941 and ISO 3724, and has passed the verification of rupture resistance and structural integrity.
