Home > Electrical & Electronics > Electrical Control System > Yokogawa AVR10D-Q22020 Duplexed Vnet/IP Router Brand

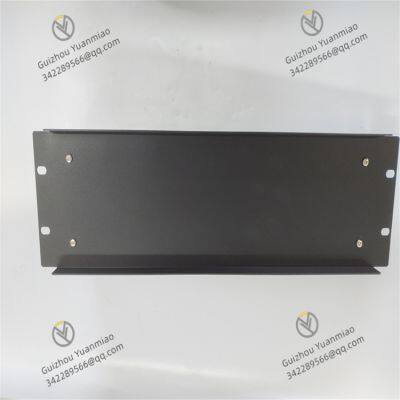

Yokogawa AVR10D-Q22020 Duplexed Vnet/IP Router Brand

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

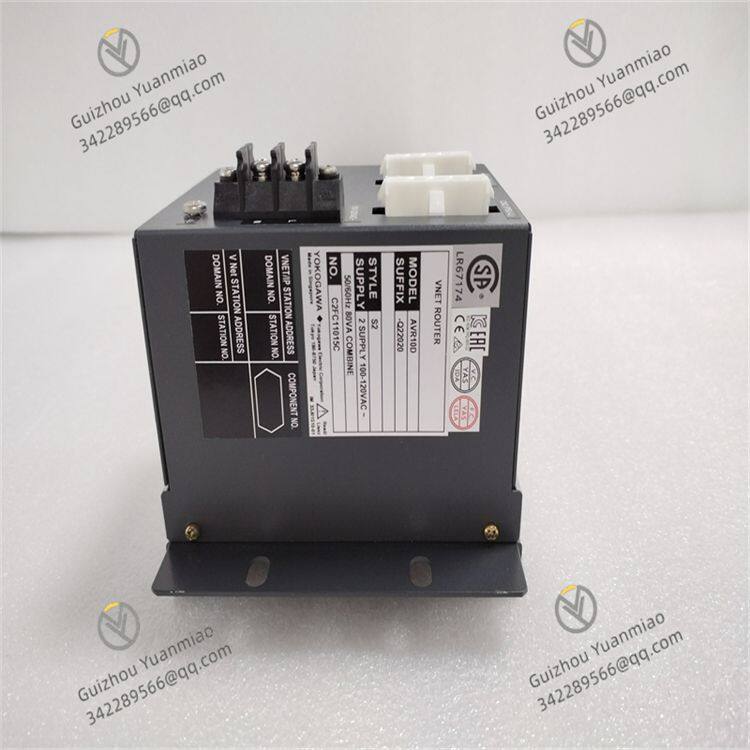

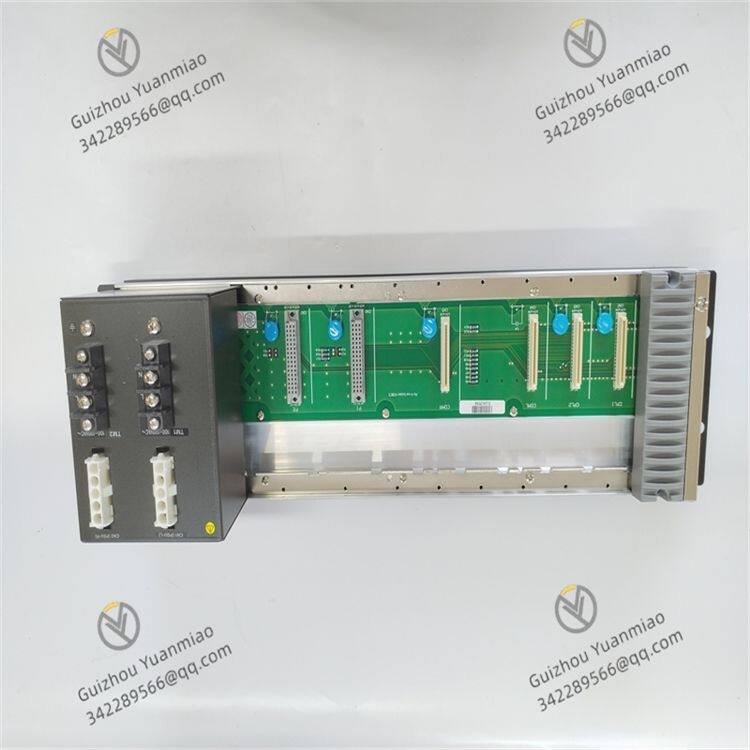

Yokogawa AVR10D-Q22020

Overview

The AVR10D-Q22020 is a network device specifically designed for industrial applications, aiming to provide reliable and secure network functions for various scenarios. It can be used in industries such as manufacturing, energy, oil & gas, and transportation, offering reliable network connections for related equipment and systems to ensure efficient data exchange.

Functional Features

Strong Network Redundancy
Adopts a dual V-network architecture to enhance network redundancy and reliability. Even if part of the network fails, it can ensure the normal operation of the system.
Efficient Data Transmission
Equipped with high-performance routing functions, enabling safe and efficient data transmission in industrial environments to guarantee stable and fast network communication.
Superior Security Performance
Features advanced security functions, effectively resisting network threats, protecting industrial networks from external attacks, and ensuring information security of industrial systems.
Good Connection Compatibility
Can connect the CENTUM VP human-machine interface station (HISe) on Vnet/IP to CENTUM VP/CENTUM CS 3000/CENTUM CS stations on Vnet, as well as CENTRUM CS 1000 stations on the VL network in other domains.

Technical Parameters

Communication Speed

Vnet/IP side: 100Mbps, full-duplex, using UTP cable (CAT5e or better), RJ45 connector interface, compatible with 100Base-TX. The maximum distance between AVR10 and the Layer 2 switch is 100m.
V-network side: 10Mbps, connected with coaxial cable, BNC type.

Installation Method
Supports 19-inch rack installation, fixed by 4 M5 screws, and insulating bushings (accessories) can be used.
Connection Mode
Power supply, grounding, and contact output are all connected via M4 screw terminals. The V-network and VL-network sides use T-connector BNC connections, and the Vnet/IP side uses UTP cable connection.

Working Principle

The AVR10D-Q22020 receives, processes, and forwards data between different networks through internal routing chips and related circuits. It can identify data from the Vnet/IP network and correctly transmit it to target devices on the Vnet or VL network according to preset routing rules, and vice versa. Meanwhile, using the dual V-network architecture, it real-time monitors the network status and automatically switches to the backup network when the main network fails to ensure continuous data transmission. In addition, it filters and verifies transmitted data through built-in security mechanisms to prevent illegal data intrusion and ensure network security.

Common Faults and Solutions

Network Connection Interruption

Possible Causes: Loose or damaged network cable, interface failure, etc.
Solutions: Check whether the UTP cable on the Vnet/IP side and the coaxial cable on the V-network side are firmly connected and free of damage. If the cables are normal, try replacing the device's network interface or connecting to other normal interfaces for testing.

Abnormal Data Transmission

Possible Causes: Incorrect routing configuration, insufficient network bandwidth, or electromagnetic interference.
Solutions: Check whether the device's routing configuration parameters are correct, confirm if other devices occupy a large amount of network bandwidth, ensure the device is installed away from strong electromagnetic interference sources, and optimize the network or reconfigure the routing if necessary.

Power Failure

Phenomenon: The device has no power supply, and the indicator light is off.
Possible Causes: Incorrect power wiring, damaged power module, etc.
Solutions: Check whether the power input is normal and the wiring polarity is correct. If the power input is normal, the power module may be faulty, and professional personnel should be contacted for replacement.

Security Alarm

Possible Causes: The device's security function triggers an alarm, possibly due to a network attack or improper security settings.
Solutions: View the device's alarm log to determine the specific attack type or security violation, update security policies (such as setting access permissions, adding firewall rules), and contact network security experts for handling if necessary.

Product Tags: AVR10D-Q22020 , ATK4A-00 , SC42-SP34
