Factory Supply En10305-4 Precision Steel Hydraulic Tubes

Factory Supply En10305-4 Precision Steel Hydraulic Tubes photo-1
Factory Supply En10305-4 Precision Steel Hydraulic Tubes photo-2
Factory Supply En10305-4 Precision Steel Hydraulic Tubes photo-3
Factory Supply En10305-4 Precision Steel Hydraulic Tubes photo-4
Factory Supply En10305-4 Precision Steel Hydraulic Tubes photo-5
Negotiable MOQ: 100000 Tons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Seamless
Warranty:
12 months
Technique:
Hot Rolled
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
15 days
Type Seamless
Warranty 12 months
Technique Hot Rolled
Surface Treatment Other, Hot-DIP Galvanizing, Epoxy Coating/Spray Painting
Usage Pipeline Transport, Boiler Pipe, Oil/Gas Drilling, Food/Beverage/Dairy Products, Chemical Industry, Mining, Special Purpose
Material Stainless steel
Section Shape Round
Transport Package standard packing
Specification customized
Origin CHINA
Basic Info.
Model NO.
sAdYIFyzPZWX
Material
Carbon Steel
Surface Treatment
Hot-DIP Galvanizing, Epoxy Coating/Spray Painting
Usage
Oil/Gas Drilling, Machinery Industry, Construction & Decoration, Water Supply/Mechanical/Agriculture
Section Shape
Round/Square
MOQ
1 Ton
Delivery Time
2-3 Days
Provide Free Samples
Yes
Certification
ISO 9001, CE, API 5L, GB/T 3091
Specification
customized
Origin
China
Product Description
Product Description

Welded Carbon Steel Round Pipe/Seamless Carbon Steel Round Pipe/Welded Carbon Steel Square Pip

ISO 9001 Certified High Carbon Steel Pipe with Advanced Manufacturing Technology
1. Material and process advantages
High-strength material: Q195/Q235/Q345 or ASTM A53/A106 carbon steel, strong pressure and impact resistance.

Advanced technology: high-frequency welding (ERW)/submerged arc welding (LSAW)/seamless cold-drawn to ensure precise size and uniform weld seam.

Anti-corrosion treatment: hot-dip galvanizing, epoxy coating or spray painting are optional to extend outdoor service life.

2. Cost and delivery advantages
Favourable price: large-scale production, 30%-50% lower cost than seamless pipe.

Fast delivery: regular specifications in stock, customised sizes delivered in 7-15 days.

3. Certification and Quality Assurance
International Certification: Passed ISO 9001, CE, API 5L, GB/T 3091 and other standards.

1.Welded Carbon Steel Round Pipe
ParameterSpecification RangeCommon SizesStandard
OD10mm-2000mm21.3mm, 48mm, 114mmGB/T 3091, ASTM A53
Wall Thickness0.8mm-20mm2.0mm, 3.6mm, 6.0mmEN 10219, JIS G3444
Length1m-12m(Customisation up to 18m)6m, 12m
MaterialQ195, Q235B, Q345BASTM A36, SS400
ProcessERW/LSAW

2.Seamless Carbon Steel Round Pipe
ParameterSpecification RangeCommon SizesStandard
OD6mm-800mm25mm, 60mm, 168mmGB/T 8163, ASTM A106
Wall Thickness1mm-50mm3mm, 8mm, 12mmDIN 2448, API 5L
Length3m-12m(Customisation up to 15m)5.8m, 11.8m
Material20#, 45#, 16MnASTM A53 Gr.B, ST52
3.Welded Carbon Steel Square Pipe
ParameterRangeStock SizesStandardFeature
Side Length10×10mm - 500×500mm20×20mm, 50×50mmGB/T 6728, ASTM A500ERW,internal and external deburring
Wall Thickness0.8mm-20mm1.5mm, 3.0mmJIS G3463, EN 10219Flat weld seam, high strength
Length1m-12m(Customisation )6m, 12m----Flat cut, ±1mm tolerance
MaterialQ195/Q235B/Q345B/Q355ASTM A36, SS400----galvanized/painted
Applications
IndustryApplications
ConstructionBuilding frameworks, scaffolding, guardrails, roofing supports.
Oil & GasLow-pressure pipelines, casing pipes, water injection lines (API 5L compliant).
Water SupplyMunicipal water drainage, fire sprinkler systems, irrigation pipes.
MechanicalConveyor rollers, hydraulic cylinders, truck chassis components.
AgricultureGreenhouse frames, livestock fencing, grain storage bins.
Customisation service

Flexible size: support customized outer diameter (OD 10mm-2000mm), wall thickness (1mm-50mm), length (1m-12m)

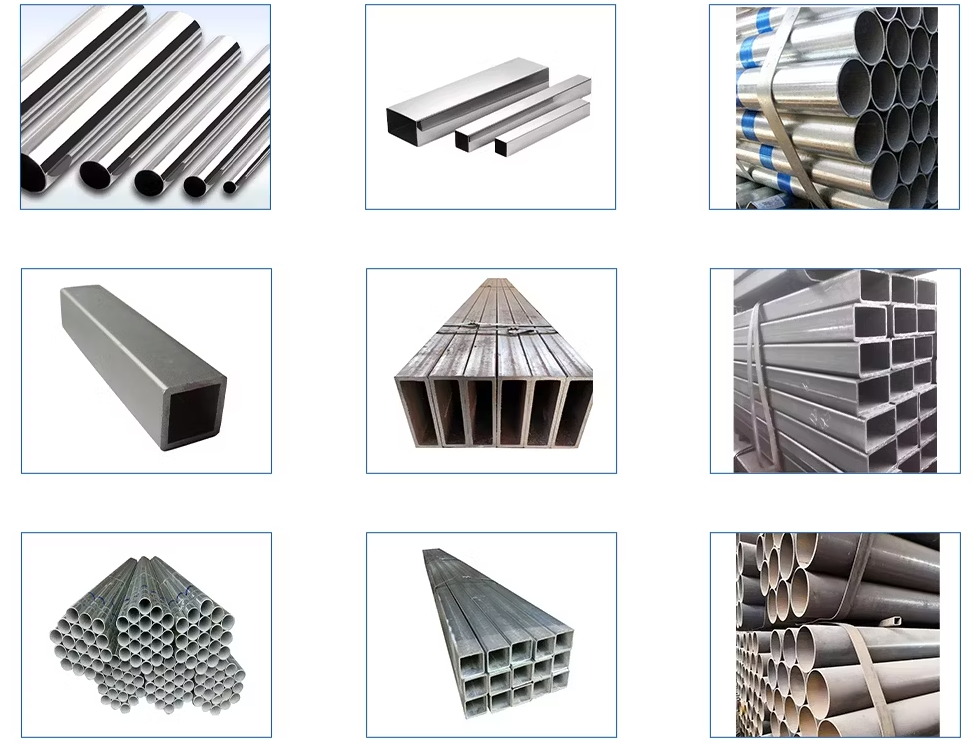

major product

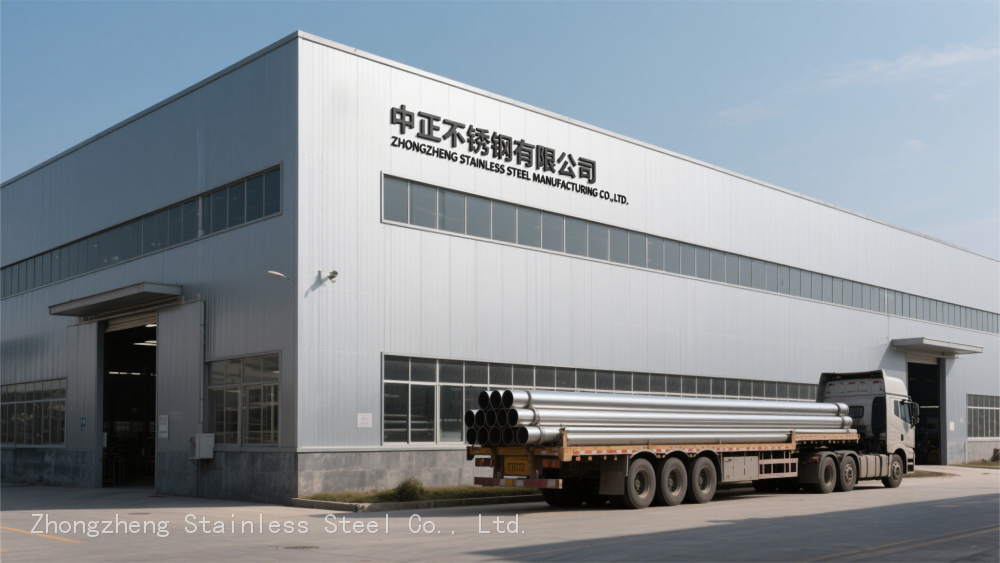

d5db4d64a95f7723367031e537944229.pngCompany Profile

Zhejiang Zhongzheng Stainless Steel Manufacturing Co., Ltd. specializes in stainless steel seamless tubes, with a range of 6-325mm in diameter. The materials include 304, 321, 316L, 2205, etc. Our stainless steel products are widely used in industries such as petroleum, chemical engineering, chemical fiber, metallurgy, medical machinery, papermaking, thermal insulation and refrigeration, mechanical equipment, food, power, water conservancy, construction, submarine engineering, marine shipping, and environmental protection. Zhejiang Zhongzheng Stainless Steel Manufacturing Co., Ltd. is a strong company that values credit, adheres to contracts, and guarantees product quality. With the business feature of multiple varieties and the principle of selling at a small profit but a large volume, we have won the trust of many customers. All the staff of our company sincerely welcome your inquiries!

厂房1Packaging & Shipping

包装和运输

FAQ
  1. 1.Q: What is the Minimum Order Quantity?
    A: 1 tons/size.

    2.Q: What are the Payment Terms?
    A: L/C or T/T, 30% deposit, 70% balance against copy of BL.


  2. 3.Q: How long is the Delivery Time?
    A: 30-50 days.
    Starting from production around 30 days, which including perforation,
    cycling pickling, cycling annealing, squeezing head, cold rolling, cold drawing,
    straightening, ultrasonic & eddy current flaw detection, cutting head&tail, tensile test
    and finished product inspection.


    4.Q:Warranty of Rebar Coupler?
    A: Any quality issues that do not comply with the contract before use of seamless
    steel tubes, we accept the return of the refund.
Product Tags: carbon tube , Factory Supply
