Neware Battery Tester for Lithium Battery PACK End-of-Line Test, robots, power tools, 3C battery packs; electric bicycles battery testing.

Hi,This is Ellie from  Neware Technology Company, a leading battery testing equipment manufacturer founded in 1998. From cell to module to pack, Neware testers are widely used by battery manufacturers, lab researchers, company engineers, battery technology, and battery applications. Thus far, Neware has provided flexible, high-accuracy battery testing equipment to more than 32,000 customers worldwide. Partners love the stable, cost-effective battery testing equipment and Neware's great service.

Our solutions—including battery testers, cyclers, and environmental chambers—are widely used by industry leaders like ATL, CATL, and LG for cell (3C/EV), module, and pack testing.

Why Neware?

✅ Proven reliability – Trusted by top-tier battery manufacturers

✅ End-to-end testing – From R&D to production line validation

✅ Customizable solutions – Tailored to your specific requirements

The price listed for the battery tester above is for reference only.

As the manufacturer, contact me for the most competitive pricing and efficient service tailored to your needs.

Information :  Ellile  Email: chengli@neware.com.cn   Wechat: 13417352441

As a leading provider for battery testing, I believe that our battery testing equipment can help your business or research to the next step.

Order classification: The price for the battery tester above is only for reference, please contact me at chengli@neware.com.cn

About the measurement: According to the different ranges of voltage and current for each type batteries, please contact me.

Testing objectives: cell, module, pack, etc.

Testing items: cycle-life, Pulse, DCIR, OCV, SOC, SOH, HPPC, C-Rate, EIS, CV, formation, grading, EV driving simulation, etc.

About the clamps: Based on the type of the batteries

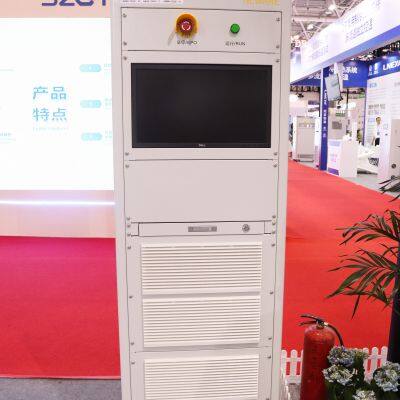

BTS-200V200A is used for Lithium Battery PACK End-of-Line Testing. It can be applied to systems ranging from 12V/24V/48V to 200V; used in robots, power tools, 3C battery packs; low-speed vehicles, electric bicycles; and energy storage battery packs testing. This test includes safety regulations testing, communication bus testing, I/O testing, charge/discharge function testing, capacity testing, and SOC (State of Charge) adjustment.

Comprehensive battery safety performance testing.

● High-voltage safety compliance testing: Supports insulation resistance (0.1MΩ–500GΩ) and DC/AC withstand voltage testing, ensuring battery systems meet international safety standards.

●Intelligent alarming and protection: Combines hardware-level overvoltage/overcurrent/overtemperature protection with software-programmable safety thresholds (voltage/current limits) for dual-layer risk mitigation.

● Failure mode simulation: Integrates short-circuit detection, HVIL (High Voltage Interlock) verification, and simulated collision signals to expose design flaws proactively.

High-precision battery performance testing.

● Integrated charge/discharge: Single-channel 40kW power with 0-200V/±200A range, covering full lifecycle testing of power batteries.

● Accurate resistance diagnostics: Dual-mode DCIR (±0.05% accuracy) and ACIR (3mΩ–300Ω range) measurements to rapidly identify cell inconsistencies.

● Dynamic performance validation: Current response time ≤3ms and minimum step duration 0.1s, compatible with fast-charging protocol validation and transient condition simulation.

Deep compatibility with mainstream BMS protocols.

● Full BMS functional verification: Supports CAN communication (DBC configuration), SOC calibration, cell balancing diagnostics, and fast/slow charge state simulation for BMS-battery system co-testing.

● Multi-dimensional data cdomparison: Automatically aligns BMS-reported data (voltage/temperature/voltage deviation) with device-measured values, visualizing accuracy deviations in real time.

Programmable testing & data processing platform .

● Customizable workflows: Define test parameters, items, and sequences flexibly.

● Data traceability: Supports TCP/IP communication and wireless barcode scanners (1D/2D codes) to automatically link test data with battery IDs.

● One-click reporting: Exports test results to Excel/TXT formats with automatic synchronization to MySQL databases.

MES/communication bus expansion.

● Multi-protocol support: CAN/CANFD, RS485, RS232, Line, LAN.

● MES integration: Compatible with custom MES systems via open APIs for secondary development.

● BMS universal compatibility: Built-in DBC converter for multi-standard BMS interfaces.

● Multi-device synergy: Controls environmental chambers, chillers, and auxiliary equipment for complex scenario simulations.

Warranty: 1 year  （our after-service network is globally)

Delivery: 7days after deposit

Contact information: Ellie  Email:  chengli@neware.com.cn

Technical Specification:

 More information about the Technical Specification please contact me.

About Neware： Neware Technology,  a leading battery testing equipment manufacturer founded in 1998. From cell to module to pack, Neware testers are widely used by battery manufacturers, lab researchers, company engineers, battery technology, and battery applications. NEWARE offers charge/discharge battery testing systems ranging from μA single cell applications up to 300kw packs. Thus far, Neware has provided flexible, high-accuracy battery testing equipment to more than 32,000 customers worldwide. Partners love the stable, cost-effective battery testing equipment and Neware's great service.
