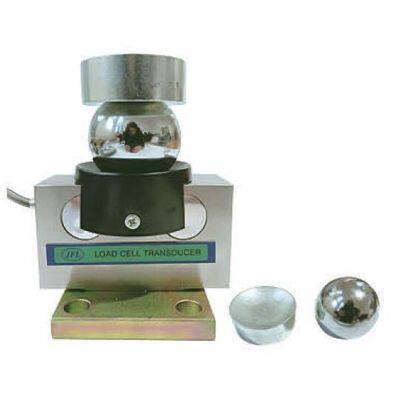

JFL-19QS short weighbridge ball cup load cell weight sensor for ground scale truck scale
- 100 Piece / Pieces per Month
- qingdao, tianjin, shanghai
- T/T
- 10 days
You May Like
-
JFL-19QS short weighbridge ball cup load cell weight sensor 10 ton 20 ton 30 ton
-
JFL-IQSNB 30 ton alloy steel load cell weighing sensor for hanging over crane
-
hydraulic universal testing machine equipment tester 300KN 600KN 1000KN 2000KN
-
hydraulic tensile testing machine equipment tester 300KN 600KN 1000KN 2000KN
-
hydraulic tensile testing machine equipment tester 30 ton 60 ton 100 ton 200 ton
-
universal testing machine hydraulic UTM hydraulic type hydraulic material testing machine
Product Details
Brand Name | JFL | Place of Origin | China | |
Model Number | JFL-19QS | Usage | Pressure Sensor | |
Theory | Resistance Sensor | Output | Analog Sensor |
Product Description
JFL-19QS bridge type weighing sensor
1. introductions
l made of alloy steel
l adopting laser welding seal or rubber seal treatment
l nickel plated surface, waterproof, anti-corrosion, suitable for various working conditions
l suitable for truck scale, railway scale, etc.
2.Specifications
No. | Item | Spec. | |
1 | Model | JFL-19QS | |
2 | Capacity | T | 10,20,30 |
3 | Output sensitivity | MV/V | 2.0±0.004 |
4 | Accuracy grade | --- | C3 |
5 | Comprehensive error | %RO | ≤±0.020 |
6 | Creep | %RO/30min | 0.016 |
7 | Temperature effect on sensitivity | %RO/℃ | 0.0016 |
8 | Temperature effect on zero | %RO/℃ | 0.002 |
9 | Zero balance | %RO/℃ | ±0.1 |
10 | Input resistance | Ω | 750±5 |
11 | Output resistance | MΩ | 700±3 |
12 | Insulation resistance | MΩ(50) | 5000 |
13 | Recommended excitation voltage | V | 10-15 |
14 | Compensated temperature range | ℃ | -10 to +40 |
15 | Working temperature range | ℃ | -35 to +80 |
16 | Safe overload capacity | %RO | 150 |
17 | Ultimate overload range | %RO | 200 |
18 | Wire connection | --- | Red input (+) black input (-) green output (+) white output(-) |
