Home > Products > load cell > JFL-13 2mv/v load cell weighing sensor C3 grade Creep 0.02 Output resistance 350MΩ

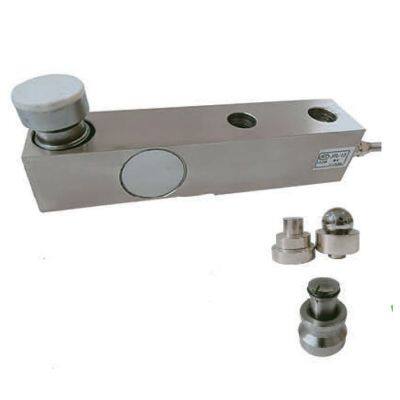

JFL-13 2mv/v load cell weighing sensor C3 grade Creep 0.02 Output resistance 350MΩ
- 100 Piece / Pieces per Month
- qingdao, tianjin, shanghai
- T/T
- 10 days
You May Like
-
JFL-19 ball cup load cell weight sensor 30 ton 40 ton capacity for weighbridge
-
JFL-19 weighbridge load cell weight sensor
-
JFL-19 30 ton 40 ton load cell weight sensor for truck scale ground scale weighbridge
-
JFL-19QS short weighbridge ball cup load cell weight sensor for ground scale truck scale
-
JFL-19QS short weighbridge ball cup load cell weight sensor 10 ton 20 ton 30 ton
-
JFL-IQSNB 30 ton alloy steel load cell weighing sensor for hanging over crane
Product Details
Brand Name | JFL | Place of Origin | China | |
Model Number | JFL-13 | Usage | Pressure Sensor | |
Theory | Resistance Sensor | Output | Analog Sensor |
Product Description
1. introductions
l made of alloy steel or stainless steel
l adopting laser welding seal or rubber seal treatment
l nickel plated surface, waterproof, anti-corrosion, suitable for various working conditions
l can be used in electronic weighing apparatus such as electronic platform scale, rail scale, weigh bridge scale
2.Specifications
No. | Item | Spec. | |
1 | Model | JFL-13 | |
2 | Capacity | T | 0.5,1,2,3,5,10,20,30,50 |
3 | Output sensitivity | MV/V | 2.0±0.1 |
4 | Accuracy grade | --- | C2 C3 |
5 | Comprehensive error | %RO | ≤±0.030 ≤±0.020 |
6 | Creep | %RO/30min | 0.02 |
7 | Temperature effect on sensitivity | %RO/℃ | 0.0016 0.0014 |
8 | Temperature effect on zero | %RO/℃ | 0.005 0.002 |
9 | Zero balance | %RO/℃ | ±0.1 |
10 | Input resistance | Ω | 365±10 (optional 1050±10) |
11 | Output resistance | MΩ | 350±3 (optional 1000±5) |
12 | Insulation resistance | MΩ(50) | 5000 |
13 | Recommended excitation voltage | V | 8-15 |
14 | Compensated temperature range | ℃ | -10 to +40 |
15 | Working temperature range | ℃ | -35 to +80 |
16 | Safe overload capacity | %RO | 150 |
17 | Ultimate overload range | %RO | 200 |
18 | Wire connection | --- | Red input (+) black input (-) green output (+) white output(-) |
P(t) | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | L1 |
0.5-3 | 203 | 95 | 98 | 64 | 22 | 43 | 37 | 30 | φ16 | φ32 | φ13 | 37 | φ35 | 10.4 | 44.9 | |
5,8 | 235 | 110 | 124 | 66 | 22 | 52 | 48 | 30 | φ22 | φ38 | φ21 | 48 | φ42 | 19.7 | 56.7 | |
10 | 279 | 133 | 140 | 82 | 32 | 67 | 60 | 20 | φ32 | φ48 | φ28 | 60 | φ57 | 55.7 | 80.7 | |
20 | 318 | 153 | 158 | 89 | 38 | 82.5 | 70 | 24 | φ38 | φ54 | φ34 | 70 | φ70 | 61 | 85 | |
30 | 374 | 189 | 181 | 76 | 44.5 | 115 | 90 | 32 | φ38 | φ54 | φ26 | 96 | φ70 | 53 | 91 | 51 |
50 | 416 | 210 | 196 | 92 | 48 | 143 | 100 | 32 | φ60 | φ44 | φ29 | 105 | φ85 | 65 | 102 | 56 |
