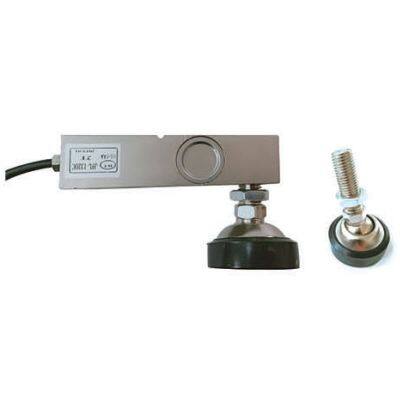

JFL-1320C shear beam load cell weight sensor 50kg 100kg 500kg 1 ton 2 ton 3 ton
- 100 Piece / Pieces per Month
- qingdao, tianjin, shanghai
- T/T
- 5 days
You May Like
-
JFL-1320L 3T 5T shear beam load cell weight sensor C3 grade
-
JFL-1320L 3T 5T 2mv/v alloy steel shear beam load cell weight sensor
-
JFL-1320L 3T 5T C3 waterproof anti-corrosion load cell weight sensor
-
JFL-1320L 3T 5T load cell weight sensor for electronic platform scale rail scale weighbridge scale
-
JFL-1320L load cell weight sensor for hopper scales tank and silo weighing belt scales
-
250kn universal testing machine customize
Product Details
Brand Name | wangtebei | Place of Origin | China | |
Model Number | JFL-1320C | Usage | Pressure Sensor | |
Theory | Resistance Sensor | Output | Analog Sensor |
Product Description
1. introductions
l made of alloy steel or stainless steel
l adopting laser welding seal or rubber seal treatment
l nickel plated surface, waterproof, anti-corrosion
l suitable for electronic weighing apparatus such as electronic platform scale, rail scale, weigh bridge scale
2.Specifications
No. | Item | Spec. | |
1 | Model | JFL-1320C | |
2 | Capacity | kg | 50,100,200,250,500,1000,2000,3000 |
3 | Output sensitivity | MV/V | 2.0±0.004 |
4 | Accuracy grade | --- | C3 |
5 | Comprehensive error | --- | ≤±0.020 |
6 | Creep | %RO/30min | 0.02 |
7 | Temperature effect on sensitivity | %RO/℃ | 0.0016 |
8 | Temperature effect on zero | %RO/℃ | 0.002 |
9 | Zero balance | %RO/℃ | ±0.1 |
10 | Input resistance | Ω | 365±10 |
11 | Output resistance | MΩ | 350±5 |
12 | Insulation resistance | MΩ(50) | 5000 |
13 | Recommended excitation voltage | V | 5-12 |
14 | Compensated temperature range | ℃ | -10 to +40 |
15 | Working temperature range | ℃ | -30 to +80 |
16 | Safe overload capacity | %RO | 150 |
17 | Ultimate overload range | %RO | 200 |
18 | Wire connection | --- | Red input (+) black input (-) green output (+) white output(-) |
