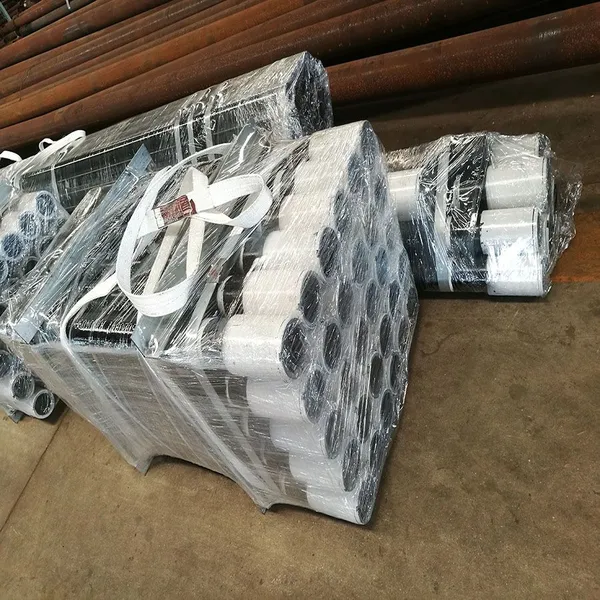

5. Tubing Nipples: Regular, Thickened, Lifting, Double Male, and Heavy-Wall
Tubing nipples are crucial connecting components in the process of oil extraction and transportation. They are primarily used to connect tubing and ensure the stability and safety of the tubing system. Currently, there are various types of tubing nipples available on the market, including regular tubing nipples, thickened tubing nipples, lifting tubing nipples, double male tubing nipples, and heavy-wall tubing nipples.
Regular tubing nipples are commonly used and can meet the basic requirements for connection and sealing in general oil well extraction. Thickened tubing nipples are enhanced versions of regular nipples, with increased tensile and torsional strength, making them suitable for high-pressure and complex downhole environments. Lifting tubing nipples are mainly used for lifting tubing and have good load-bearing capacity and stability. Double male tubing nipples have male threads on both ends, which makes connection convenient and allows for quick connections between tubing sections. Heavy-wall tubing nipples are designed for applications that require the ability to withstand greater pressure and weight, providing more stable connections.
In the manufacturing process of tubing nipples, advanced materials and technologies are employed. For example, high-strength steel and special anti-corrosion coatings are used to significantly extend the service life and reliability of the nipples. Precision machining equipment and strict quality inspection ensure the dimensional accuracy and sealing performance of the nipples.
In practical applications, users need to select appropriate tubing nipples based on the specific conditions of the oil well. For instance, in wells containing corrosive gases, nipples with anti-corrosion coatings should be chosen; in high-pressure oil wells, thickened tubing nipples are necessary. Additionally, the installation of tubing nipples is crucial and must be carried out strictly according to operating procedures to ensure the solidity and sealing of the connections.
With the continuous development of oil extraction technology, the design and manufacturing technologies of tubing nipples are also constantly innovating. In the future, more high-performance and high-reliability tubing nipple products will be introduced to the market, providing strong support for the sustainable development of the oil industry.
Welcome to the Online Store of Tianjin Longkailai Petroleum Equipment Co., Ltd.
Execution Standards: API-5CT, API-5L, API-5B, API 5D
Company Products: Tubing couplings, tubing collars, thickened tubing couplings, flush tubing couplings, variable thread tubing couplings, extended length tubing couplings, single-end threaded tubing couplings, internal thread tubing couplings, tubing connectors, variable thread tubing connectors, variable diameter tubing couplings, tubing conversion connectors, tubing coupling stock, tubing nipples, tubing short sections, thickened tubing nipples, tubing lifting nipples, double male tubing nipples, heavy-weight tubing nipples/short sections, lifting tubing nipples/short sections, variable thread tubing nipples/short sections, variable diameter tubing short sections/nipples, tubing conversion connectors, single-end threaded tubing nipples, coupling stock, thickened tubing, EUE thickened petroleum tubing, high-pressure tubing nipples, [casing short sections], [casing nipples], [double male casing short sections], [double male casing nipples], [casing variable thread couplings], [casing variable thread connectors], [external thread casing nipples/short sections], [casing conversion connectors], [high-pressure casing nipples], [casing thread protectors (cap)], [casing coupling stock], [finished casing products], casing couplings, coupling stock, short round thread casing couplings, long round casing couplings, tapered casing couplings, variable thread casing couplings, casing connectors, casing collars, variable diameter casing couplings, eccentric casing couplings, casing conversion connectors, API casing, single-end threaded casing couplings, coupling stock.
Casing Specifications: 4-1/2”-20” with thread types such as STC (Short Round), LTC (Long Round), BTC (Trapezoidal Thread), etc.
Tubing Specifications: 1.05”-4-1/2” with end processing forms NU (Non-Upset) and EU (Upset).
Custom Processing: We can process couplings, nipples, variable thread connectors, etc., in various lengths and sizes according to order drawings.
Processing Forms: Straight connection tubing nipples/connectors, PIN * PIN (double male nipples), PIN * BOX (male-female finished nipples), BOX * PIN (female-male finished nipples).
Materials: H40, J55, K55, N80, L80, C-90, C95, T95, P110, Q125, 13Cr-80, 13Cr-110, Super 13Cr, Nickel-based alloy tubing, etc.
Drill Pipe Specifications: 2-3/8”-6-5/8”, etc.
Thickening Forms: Internal thickening, external thickening, internal and external thickening. Custom-made products such as drill pipe variable thread connectors, drill pipe nipples, double male drill pipe nipples, and drill pipe conversion connectors in various lengths according to orders or drawings.
Materials: E-75, X95, G105, S135, etc.
Company Philosophy: We adhere to the management philosophy of people-oriented and customer-first. Based on advanced equipment and scientific management, we provide high-quality products for customers. With a complete marketing network and service system, we ensure satisfactory service for customers. Let's join hands to create a brilliant future!
