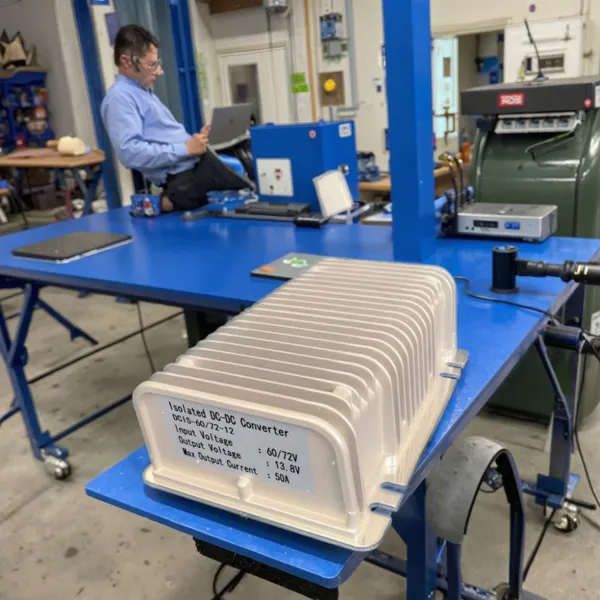

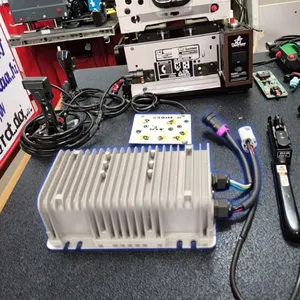

600w 500W Waterproof Isolated DC-DC Converter for EV

DCIS series isolated DC-DC converter adopt advanced high frequency power conversion technology and designed to transfer power battery voltage to 12V/24V voltage to supply vehicle mounteddevices such as lamps and audio systems. Its features include small size, high efficiency, stabilized output voltage, complete protection function and so on.

DCIS series isolated DC-DC converter is completely electrical isolated from input to output to ensure safety use;Stabilized output voltage can charge 12V batteries;Multi DC-DC converters can be used in parallel directly to increase output current.Specifications

Input Voltage: 48V/60V/64V/72V/80V/84V96V/108V/120V/144V

Output Voltage:             12V/24V

Output voltage(no-load)      13.8V/24.5V

Max Output Current:         50A

Maximum Efficiency:        ≥88%

Environmental Enclosure:     IP65

Operating Temperature:       -20℃-+60℃

Protections & Functions

Water & vibration Proofed:  All sealed by silica glue to get water and vibration proofed, which is suitable for all kinds of environment.

Key Switch Control:  The convert can be controlled by a key switch control wire instead of a input relay. (Option)

Over Heat Protection:   Auto reduce output current if the temperature is over 65°C, but it doesn’t shut down to ensure the continuous power for your car.

Protections

Water and Vibration Proofed: All sealed by silica glue to get water and vibration proof, which is suitable for all kinds of condition.

Input reverse polarity protection: Shut down, auto–reset.

Water Proofed Fuse: Input or output fuse, simple wiring.

No Arc: Input with no arc, can be controlled by key switch directly, without contactor

Short Circuit: Shut down with little plus current, auto–reset, ensure the wire safety.

Superheating Cutback: Reduce output current if the temperature is over 65°C, ensure the continuous power for your car.

Input Reverse Polarity:  Electronic protection, auto–reset.

Input Low Protection: Shut down, auto–reset, prevent the battery from over discharging
