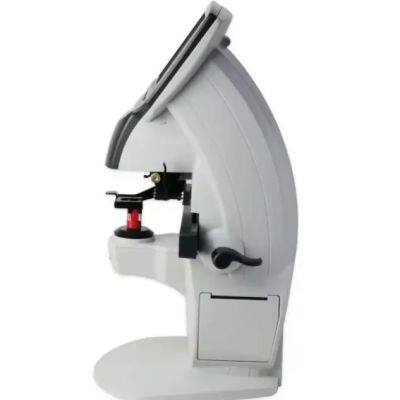

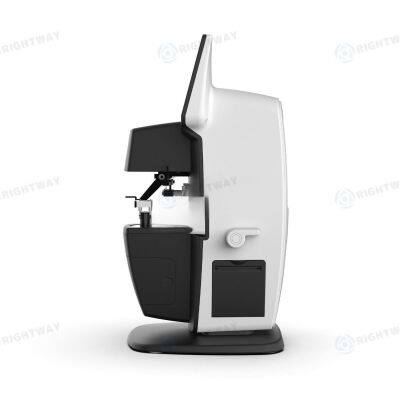

Made in China Auto Lens Meter New Products Automatic Lensmeter

FOB Price

US$ 200 - 500 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

BLACK AND WHITE OPTIONAL

7" Color and touch screen

Streamlined, faddish, abundant and atmospheric design

Green led light source ABBE compesation no required

Food-grade ABS material case, zero failure rate quality standard

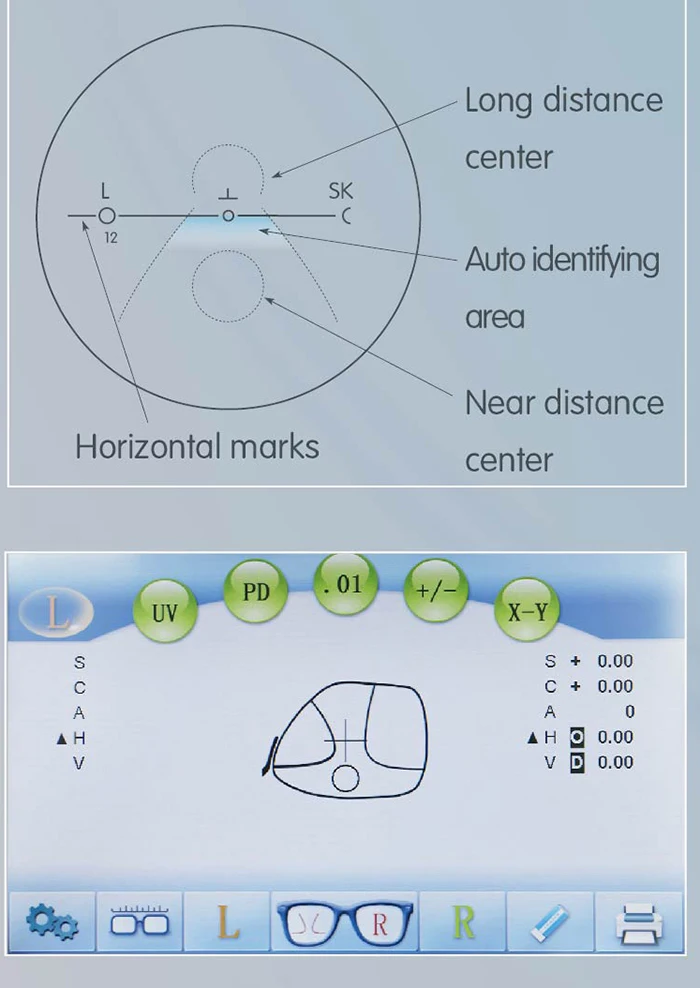

Rapidly and automatially determine and measure the progressive lens in high precision

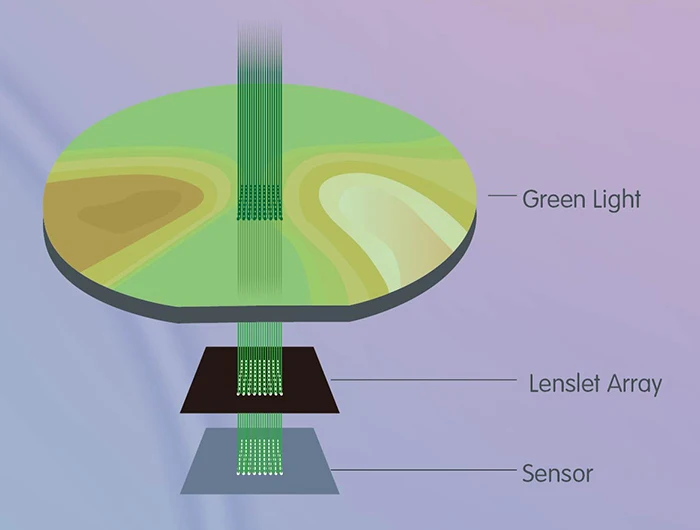

Urgraded hartmann intelligent measurement technology, faster , more accurate and more stable

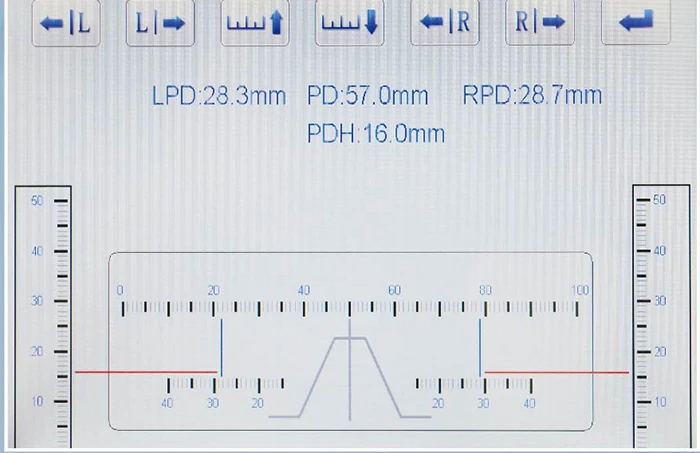

can measure frame PD PH Data .

Technical Data

Sphere	-35.00D-+35.OOD
Axis	0°-180° (1°step)
CYLINDER	0 - ±10D 0.01/0.06/0.25D steps
prism degree	0 - 15 Δ 0.01Δ steps
ADD	0 - ±10D 0.01/0.06/0.25D steps
Cylinder	+, +/-, -
Prism	X-Y, Cartesian Coordinates H:I. O.V .U.D P-B: Polar Coordinates mm: mm expression
Contact lens	Soft/hard
Measuring Mode	Single/progressive/automatic recognition
Diameter of Lens	φ20-φ100mm
PD	40~90mm, 0.5mm steps
Speed of measurement	0.1s
Display	TFT LCD (7.0") 640*480
Printer	Thermal Printer
Dimension	180(L) * 255(W) * 455 (H) mm
Package	620(L) * 390(W) * 390 (H) mm
Weight	About 12kgs
Power Supply	100~240V 50~60HZ
