Home > Products > Medium voltage transformer > ZJ10-12/150b Medium Voltage Current Transformer 10kV Current Transformer

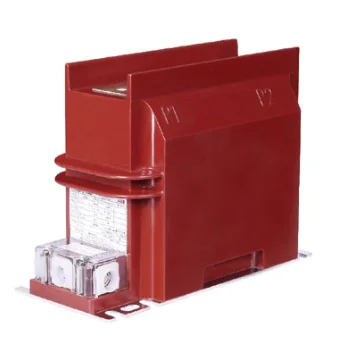

ZJ10-12/150b Medium Voltage Current Transformer 10kV Current Transformer
- GUANGZHOU/HONGKONG
- T/T
- 60 days
You May Like
-
ZJ10-12/185b Medium Voltage Current Transformer 10kV Current Transformer
-
LZZBJ9-36/250W3b Medium Voltage Current Transformer 36kV Current Transformer
-
LZZBJ9-36/250W3h Medium Voltage Current Transformer 36kV Current Transformer
-
LZZBJ9-36/250W3l Medium Voltage Current Transformer 36kV Current Transformer
-
LZZBJ9-36/250W3b(Ⅱ) Medium Voltage Current Transformer 36kV Current Transformer
-
LZZBJ9-36/250W3h(Ⅱ) Medium Voltage Current Transformer 36kV Current Transformer
Product Details
| Brand Name | ABB | Place of Origin | China | |
| Model Number | ZJ10-12/150b |
Product Description
ZJ10-12/150b Medium voltage current transformer
| Rated primary current I1n (A) | Rated secondary current I2n (A) | Accuracy class combination | Capacity (VA) | Ith (kA/s) | Idyn (kA) |
| 20,25,30,50 | 1 (5) | 0.5/5P10 | 5/5 | 100xI1n | 2.5xlth |
| 75,100,125 | 1,5 | 0.5/5P10 | 10/10 | 200xI1n | 2.5xlth |
| 150,200,250 | 1,5 | 0.5/5P10 | 15/15 | 25 kA/1 s | 63 |
| 300,400,500 | 1,5 | 0.2S/5P15 | 15/15 | 31.5 kA/1 s | 80 |
| 600,750,800 | 1,5 | 0.2S/5P20 | 15/15 | 31.5 kA/3 s | 80 |
| 1000,1200,1250 | 1,5 | 0.2S/5P20 | 15/20 | 31.5 kA/4 s | 80 |
Order List
LZZBJ9-12/150b/2
LZZBJ9-12/150b/4
LZZBJ9-12/185b/2
LZZBJ9-12/185b/4
LZZBJ9-12/185h/2
LZZBJ9-12/185h/4
LMZB1-10
LMZC-0.5
ZJ10-12/150b
ZJ10-12/185b
LZZBJ9-36/250W3b
LZZBJ9-36/250W3h
LZZBJ9-36/250W3l
LZZBJ9-36/250W3b(Ⅱ)
LZZBJ9-36/250W3h(Ⅱ)
LZZBJ9-12/150b/2S(VI)
LZZBJ9-12/150b/4S(VI)
LZZBJ9-10A1
LZZX-10Q
LZZBJ9-12/133b/1
LZZBJ9-12/133b/2
LZZBJ9-12/133b/4
LMZBJ1-10/250(II)
LMZBJ1-10/325(II)
LMZ4-100-50W2
LMZ4-100-50W3
LMZ4-100-50W4
LMZ4-100-50W5
LMZ6-226x15 5/220-75
LMZ6-226x18 5/145-65
LMZ6-266x16 6/183-80
LMZ6-266x27 0/220-180x80
ZJ10-12/133b
LZZBJ9-24/178b/2
LZZBJ9-24/178b/4
LZZBJ9-24/178h/2
LZZBJ9-24/178h/4
LZZBJ9-24/185b/2
LZZBJ9-24/185b/4
LZZBJ9-24/185h/2
LZZBJ9-24/185h/4
LZZB9-24/185b(Ⅱ)
LZZB9-24/185h(Ⅱ)
LZZBJ9-36/250W3l(Ⅱ)

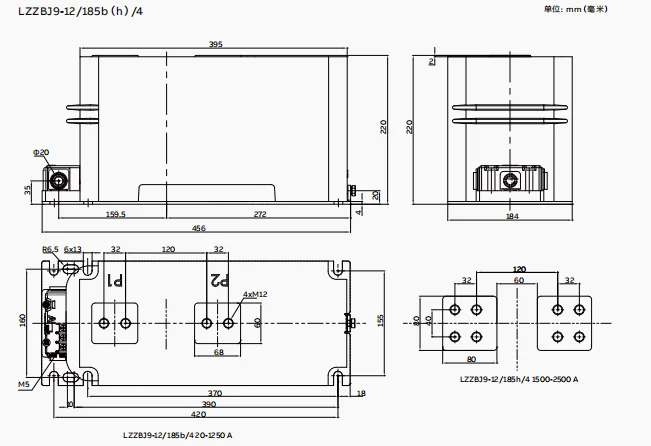

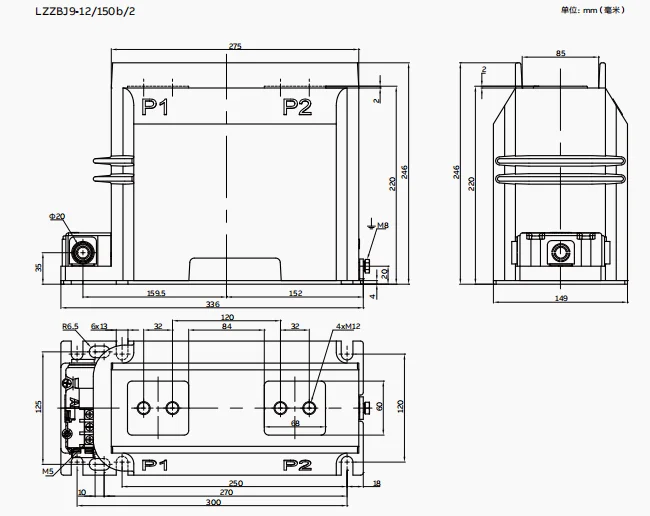

Dimensions
Packing & Shipping:
Payment methods:
Samples order: Paypal or Western Union
Main order: T/T
