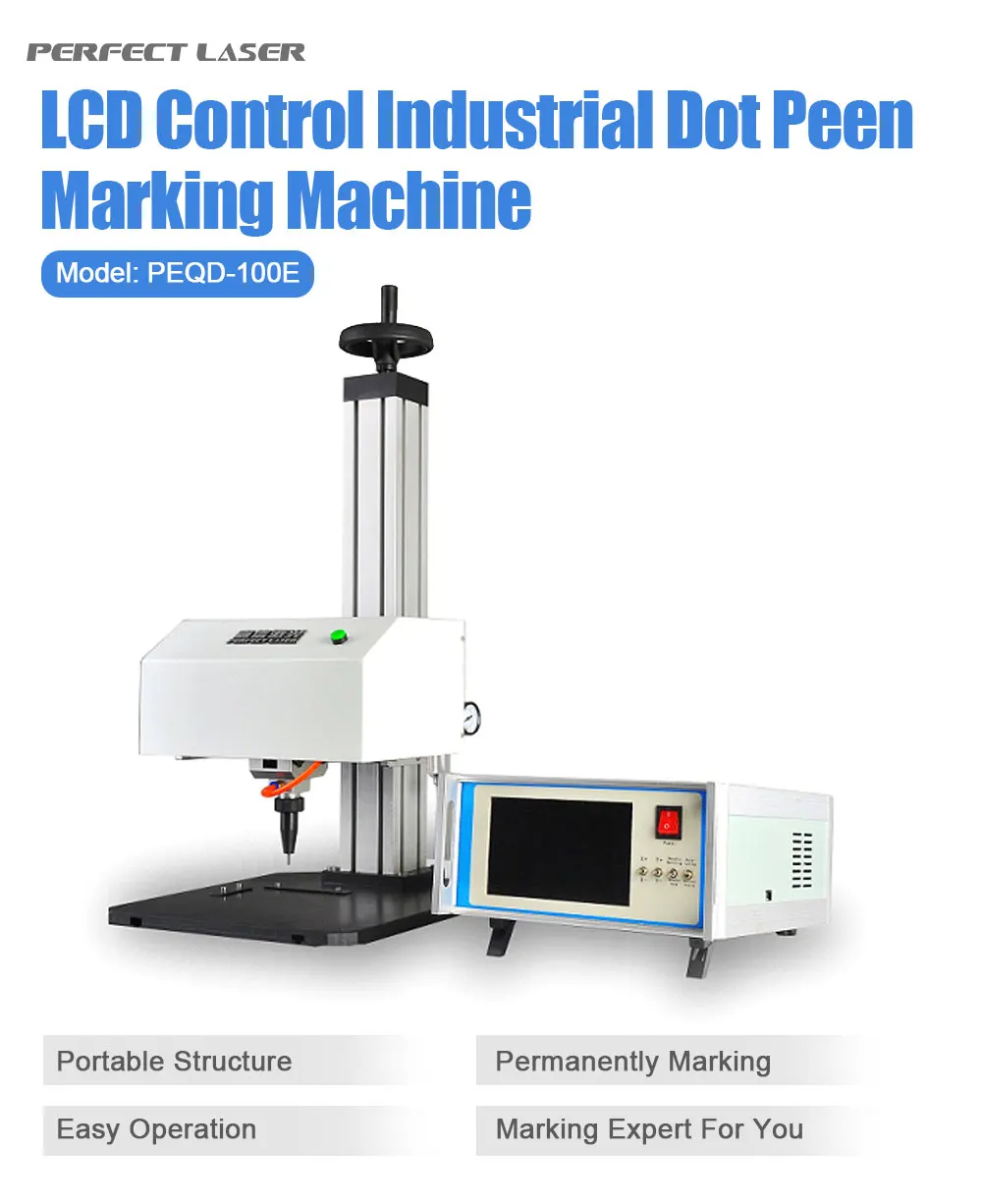

Perfect Laser Hot Selling Dot Peen Engraving Machine For Nameplate/Aluminum With LCD Touch Screen
(Model: PEQD-100E)

Contact: Sally    Whatsapp/Wechat: 0086-180-6262-3851


Product Description

 Perfect Laser is specializes in the manufacture and development of nameplate marking machines. At present, in order to meet the needs of the market for nameplate marking machines, a nameplate marking machine model PEDQ-100E was introduced.And permanent part marking takes complete LCD control screen, integrates PC, display, and control system into one unit. There is no need to work with computer, and its smaller size can save space, easier to operate and high efficiency

Why choose Perfect Laser: Perfect Laser is specializes in the manufacture and development of aluminum engraving machine . At present, in order to meet the needs of the market for nameplate marking machines, a nameplate marking machine model PEDQ-100E was introduced.And permanent part marking takes complete LCD control screen, integrates PC, display, and control system into one unit. There is no need to work with computer, and its smaller size can save space, easier to operate and high efficiency.

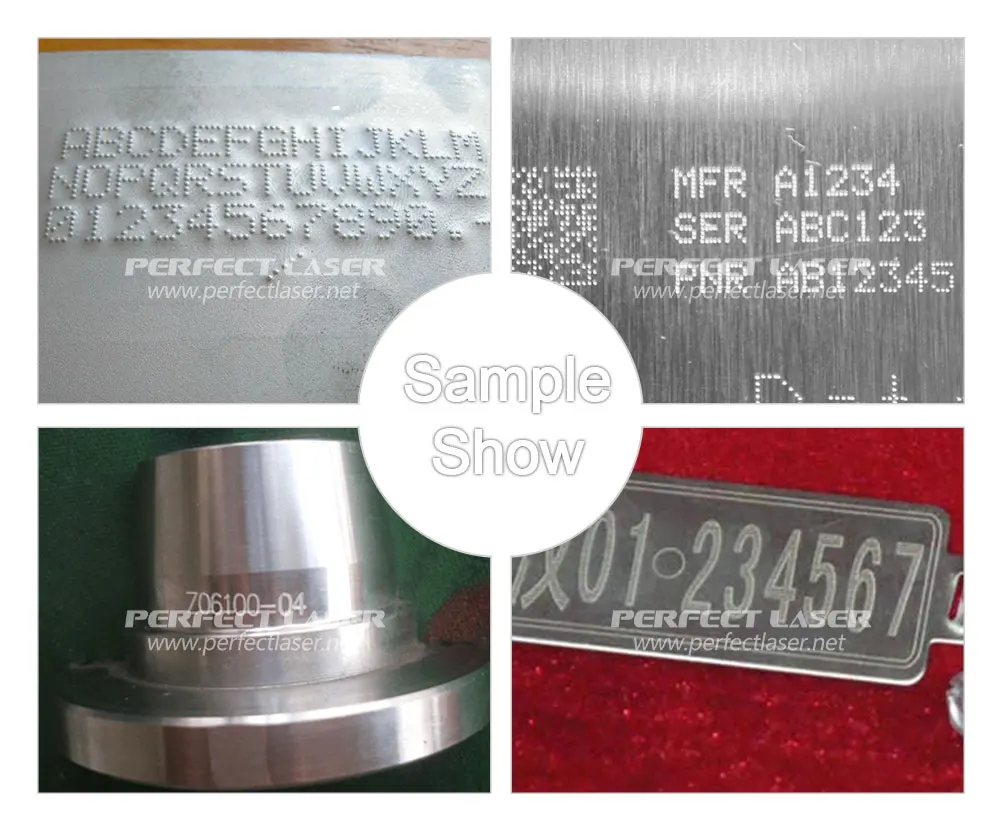

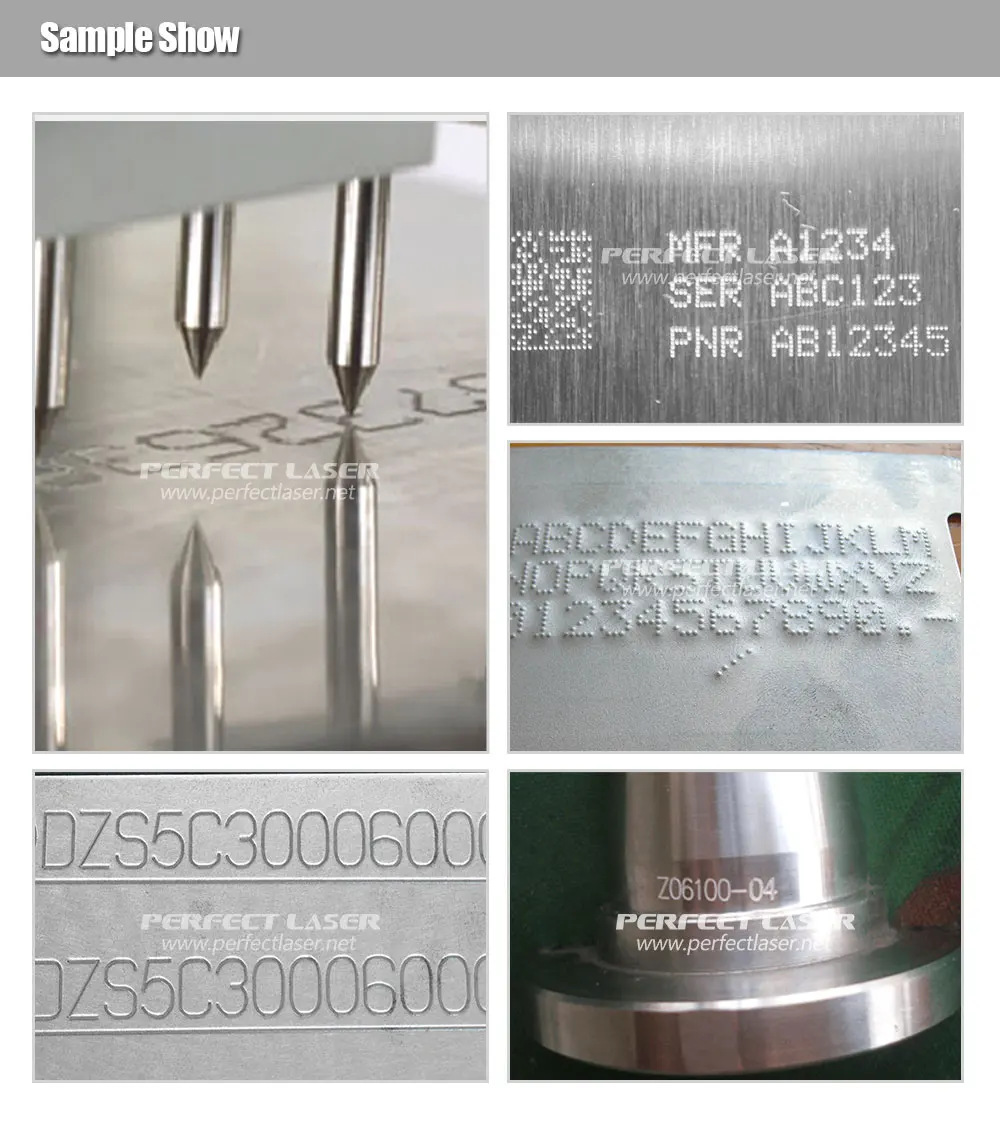

Application&Samples:



The LCD flat surface pneumatic marking machine is suitable for flat marking of various metal or non-metal signs, parts, and axial marking of cylindrical workpieces. Used on markings on various metals and hard plastics in automobiles, motorcycles, machinery, aerospace, electrical equipment, such as stainless steel, mild steel, iron, aluminum, copper, brass, and some coating materials.







Main Features:
1. Quality of needles: Imported hard alloys are used for molding once by precision moulds. Not only does it make the operation more efficient, it also makes the printed artifacts more perfect.

2. The processed letters, words, or graphics can be saved in a U disk, then input to the machine. Nameplate marking machine can work offline without computer, more convenient to operate and working efficiency much enhanced.

3. The nameplate marking machine use the high-quality imported materials: such as Japan's positioning switch, so that the machine's high-precision and stable performance are guaranteed. German original linear guides are also used to ensure the long-term stability and high-precision operation of the equipment.

4. The unique identification hull system is configured to greatly reduce the noise generated by the machine during operation.

5. The nameplate marking machine is maintenance-free and has a low overall operating cost. The service life of the machine is up to 10 years.

6. Permanent part marking supports fonts such as MG fonts, SHX fonts in Auto CAD, CHR in Borland, TTF in Windows, and more.

7.The nameplate marking machine software is with powerful edit function, can layout any kind of characters and graphics, and is compatible with AutoCAD software.

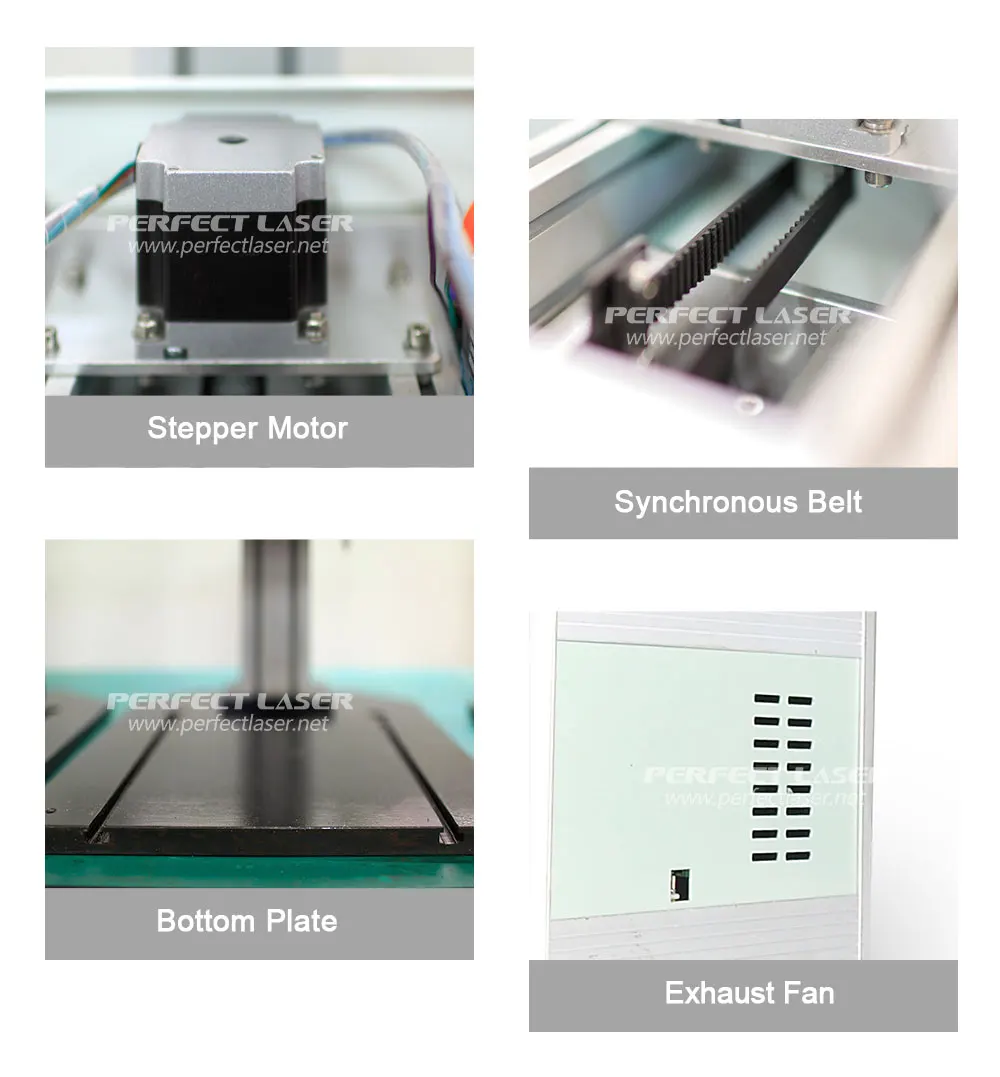

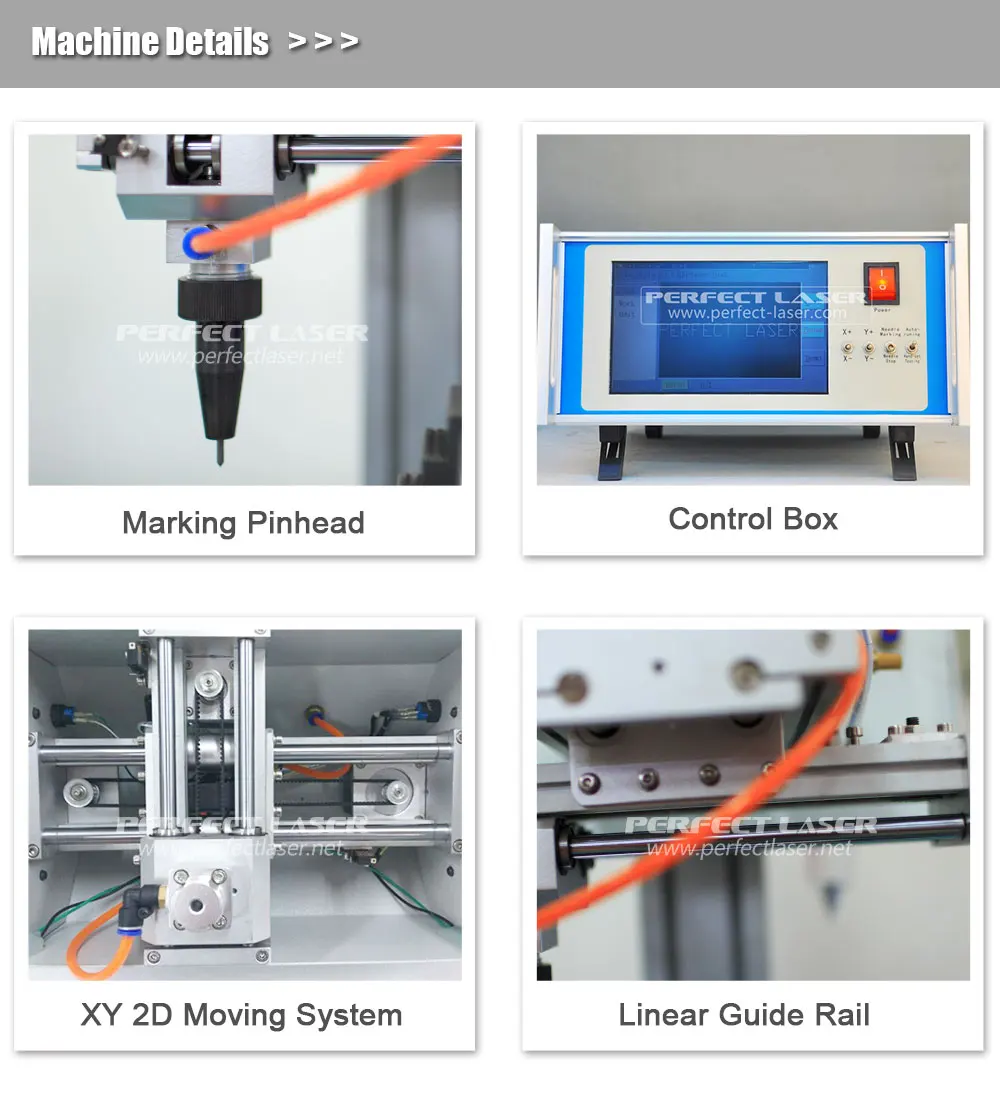

Dot Peen Marking Machine details:
Technical Parameters:

Item
LCD Desktop Nameplate Marking Machine
Model
PEQD-100E
Marking Area
150x100mm, 200x100mm, 300x200mm, 400x300mm
Marking Depth
0.01~2mm
Marking Speed
≤50mm/s (for characters height of 3mm / 3-4 numbers /second)
Air Pressure
0.2-0.6Mpa
Z Axis Lifting Range
0-300 mm or customized
Marking Accuracy
0.01mm
Pin Hardness
HRC 92
Power Supply
220V±10%, 50HZ
Air Pressure
0.2-0.6 Mpa
Machine Power
≤400 W
Working Environment
-5~40 °C
Whole Machine Weight
56KGS
Measurement
0.21CBM

Advantages:
aluminum engraving machine is one of our hotsale marking machine.It is a mature product on markert.
Low cost in consumables, easy operating and maintenance.
Permanent and deep marking ,the marking depth can reach to 0.01-2mm.
LCD screen display,seperate control box,mini body structure.
Pin Hardness is HRC 92 , reliable and have a long life span.
Standard Marking area size: 150*100mm,200*100mm,300*200mm,400*300mm for optional,also accept customized size.

Packaging & Shipping

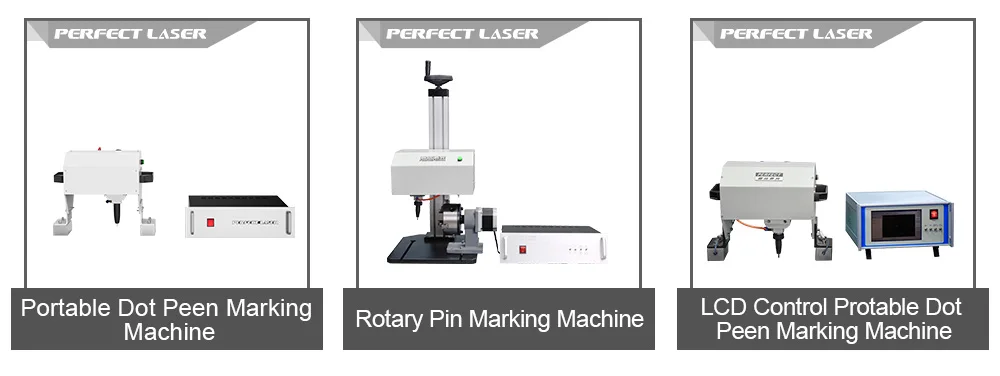

Pneumatic etching machine in this series:
You can choose with/without LCD control, rotary type, flat plate type, or handheld type.

Strict product testing process:
We have professional technical team ,and every machine will be tested after production. Make sure the machine function well.
Certification:
We have got patent certificate,Accrediated certificate,CE certificate,ISO certificate, certificate (USA)

Company Information

Perfect Laser is a professional manufacturer of industrial laser equipments, in China "Optics Valley" - Wuhan City. Since 1995, we focused on the development and production of various types of laser machinery and CNC equipments.


Welcome to visit our website at
Company Introduction (5).jpg

Perfect Laser on Exhibition:
Company Introduction (7).jpg

Supplier Contact

Perfect Laser Co, Ltd. (China)
Contact:Sally/ Sales Manager
MP:008618062623851
Tel:008627-86791986
Fax:008627-86775865
Email: sales30(@) perfectlaser net
Whatsapp:008618062623851
Skype: perfectlaser030
WeChat:18062623851
QQ:1537721659
Add: Heng Ruichuangzhi Technology Park, No 13 YangQiaohu Road
Jiangxia District, Optical Village, Hubei, China(430200)

business card -1.jpg


Product Tags: engraving machine for nameplates , nameplate engraving machine , aluminum nameplate engraving machine
