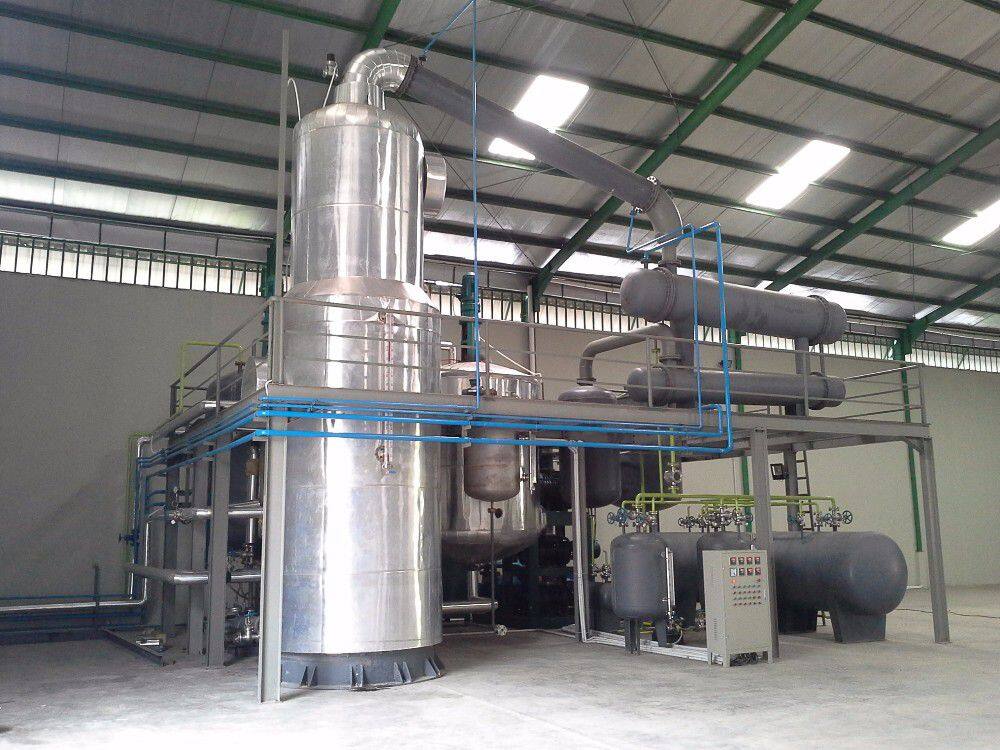

Our company researches the new waste oil vacuum distilling machine (DIR waste vacuum oil distillation machine) from 2005,We’re the first factory to produce the vacuum oil distillation plant and with ten years of improvement, our technology is very mature, it is special for distilling and regenerating the black waste lube oil, including waste engine oil, lube oil, hydraulic oil, gear oil, dirty diesel oil, mixed oils etc. This equipment adopts physicochemical way to polymerize, passivity, absorb, eliminate impurities and harmful contaminations. DIR waste oil distillation machine heat the waste oil to (from 110℃ to 300℃) different temperature under high vacuum condition, making Hydrocarbon molecules break out, and re-order combination, forming diesel oil, lubricating base oil etc. This newest techonology machine is very suitable for the small oil refinery company, also for the small oil company who want to make the oil by self.
There are optional ways to heat the oil, like the Battery heating, boiler way by using fuel, natural gas or coal. Also, if machine is small capacity, we can use the electric heating way.
2. By using the high vacuum distilling way, so the distilling temperature is low, energy saving and safety.
3. Using the special chemicals to catalyze the waste oil, which makes sure the final diesel oil, gasoline oil and base oil are good anti-oxidation with good color, there is no bad odor. The final oil can be storage for one year without color change and odor change.
4. Oil cooler system adopts the SS304, which has the good heating exchange function, long life time.
5. Environmental friendly, there is only 5-8% of the oil residual under the distilling kettle, which can be use as the boiler heavy fuel, so there is no pollution.
6. The final oil is high purity; gasoline/diesel oil and lube base oil be loaded in different oil tanks.
7. Machine design life is 15 years, long working life time.
8. Easy operation, only 1 or 2 workers can operate the machine.
2. Environmentally friendly, without secondary pollution.
3. The machine can recycle gasoline oil, diesel oil, engine oil, rubber oil and other lubricant oil to clean oil.
4. High quality refined oil, no any discoloration caused by oxidation, no any bad smelling.
5. Low cost contain:
1) only need the catalyst chemical, the cost is less thanUS$30 to refine one ton waste oil.
2) Heat consumption: 105kcal per ton waste oil
3) Power consumption: 40Kwh to recycle 1 ton waste oil
6. High degree of automation.
recovery rate: The recovery rate base oil of this machine is more than 85%.
2. Additive and production cost: The additive cost is about US$25-US$30 to refine 1000Liter waste oil.we will send all specification to you when you make the order.
3. How to deal with the residue: The final residue is semi solid and can be processed by our DDRseries machine to get diesel or you can use the residue as fuel( mixed with diesel to sell or as fuel for boiler).
4. Why we need to add the additive: Additive will keep the recycled oil stabilization, avoiding the recycled oil oxidate and color change back to black if u wanna storage more than half year.Additive can help the oil recycled in a shorter time. So the recycled oil from our machine will keep yellow at least half year or one year.( But the additive is not necessary, if not use it)
5. Why the machine need work under vacuum condition: The machine work under negative pressure, the boiling rage of the used oil is lower under high vacuum condition, if without vacuum unit, the oil will crack when temperature up to 420-450 degree( and the oil will become to diesel when temperature is 450 degree). The vacuum system can guarantee the whole system in high safety, the explosion won’t be happen.
6. Treated oil analysis(take the waste diesel engine oil for example): During processing, harmful substance removed, but the base oil and the existing additives are basically remained, so the invariability, antioxidation, de-emulsibility ect. better than the ordinary base oil. Below is a test report of a recycled oil sample produced from domestic used engine oil. Different countries’ black engine oil is a little different. Welcome to visit us, and take back the final base oil, oil residue and the black engine oil to your country to check by yourself according to your country’s standard.
