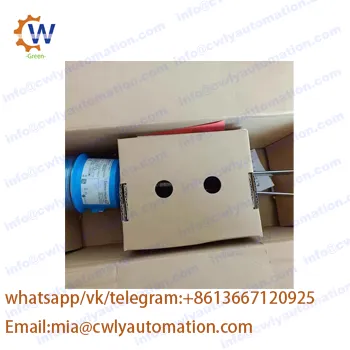

Endress+Hauser Vibronic Point Level Detection Soliphant FTM50-AGG2A2A12AA

Endress+Hauser Vibronic Point Level Detection Soliphant FTM50-AGG2A2A12AA thumbnail-1
Endress+Hauser Vibronic Point Level Detection Soliphant FTM50-AGG2A2A12AA photo-1
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Endress+Hauser
Place of Origin:
Switzerland
Model Number:
FTM50-AGG2A2A12AA
Contact Supplier Request Quote Chat Now
CW Green Tech(wuhan) Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
WUHAN
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Endress+Hauser
Place of Origin Switzerland
Model Number FTM50-AGG2A2A12AA

Endress+Hauser Vibronic Point level detection Soliphant FTM50-AGG2A2A12AA


Specs at a glance

Process temperature

-50°C ... 280°C

(-60°F ... 540°F)


Process pressure / max. overpressure limit

Vacuum ... 25 bar

(Vacuum ... 360 psi)


Min. density of medium

Standard fork: 10 g/l

Short fork: 50 g/l


Field of application

Soliphant FTM50 is a robust point level switch for use in silos containing fine-grained or powdery solids even with a low bulk density. Suitable for a wide range of applications with international certificates for use in dust or gas hazardous areas. Available with polished fork and stainless steel housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk.


Point level switch for fine grained solids and powder.


Process connections: Threads, flanges and hygienic connection (Tri-Clamp)


Temperature: -50 to +280°C (-60 to +540°F)


Pressure: -1 to +25bar (-14.5 to +360psi)


Sensor length: 145mm, 200mm


Sensor material: 316L (3,2µm, 0,8µm, PTFE coated, ETFE coated)


International explosion protection certificates


Benefits

SIL2 in accordance with IEC 61508


No mechanically moved parts, free of maintenance


Measurement not affected by build-up or external vibration


Various electronic inserts: e.g. NAMUR, relay, thyristor and PFM-signal outputs for optimum alignment with the plant control system


Build-up and abrasion display selectable, density setting and switching delay selectable


Choice of coated or polished sensor


Build-up and corrosion detection


Measuring principle

Vibration Solids


Characteristic / Application

Compact point level switch for fine grained solids and powder

Grain size

Fork sensor

No calibration required

Not affected by build-up or external vibration

Robust

Switch value visible from outside


Specialities

Build-up and corrosion detection

Remote version

3 temperature versions available

SIL 2


Supply / Communication

10-55V DC PNP 3-wire

19-253V AC 2-wire

19...253V AC / 19V...55V DC 2 relay contact

8/16mA

NAMUR

PFM


Ambient temperature

-50°C ... 70°C

(-60°F ... 160 °F)


Process temperature

-50°C ... 280°C

(-60°F ... 540°F)


Process pressure / max. overpressure limit

Vacuum ... 25 bar

(Vacuum ... 360 psi)


Min. density of medium

Standard fork: 10 g/l

Short fork: 50 g/l


Main wetted parts

selectable:

316L 3,2um

316L 0,8um

316L PTFE coated (to avoid build-up)

316L ETFE coated (to avoid corrosion)


Process connection

Thread

R 1 1/2"

1 1/4" NPT

1 1/2" NPT

EN Flange DN50...DN100

ASME Flange 2"...4"

JIS Flange 50A...100A


Process connection hygienic

Tri-Clamp ISO2852


Sensor length

Standard: 200mm (8")

Short: 145mm (5.7")


Communication

DC PNP 2-wire

AC Thyristor

DPDT relay

8/16mA

NAMUR

PFM


Certificates / Approvals

ATEX, FM, CSA, CSA C/US, IEC Ex, JPN, INMETRO, NEPSI, EAC


Safety approvals

SIL


Design approvals

EN 10204-3.1


Options

Glass cover

Temperature spacer

EN10204-3.1


Components

PFM: FTL325P, FTL375P

NAMUR: FTL325N, FTL375N
