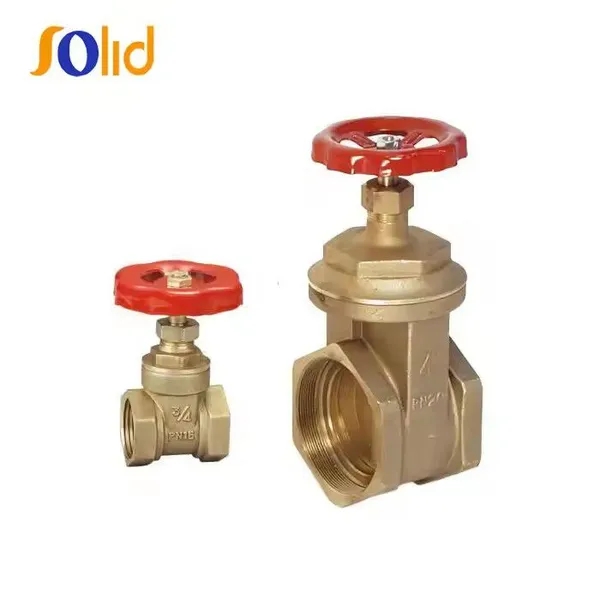

CW617N Forged Bronze Brass Full Way Gate Valve

Shanxi Solid Industrial Co.,ltd

Negotiable MOQ: 1 Ton (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2006

Annual Export Value:

Above US$100 Million

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Specification Of Product
Name	gate valve
Size	1/2 inch to 2 inch
Material	brass according to customer requirements, the GeneralHPB57-3 HPB58-3 HPB59-3 DZR cw617n CW614N
Surface treatment	brass, nickel plated or chrome
Channel	straight
Fonction	Gate valve is an opening and closing a gate, direction and perpendicular to the direction of flow of the gate valve can only be fully open and close
Works	Sealing face has two gate, two of the most commonly used mode gate valve sealing surface form a wedge, the wedge Angle vary with the valve parameters, usually for 5 °, medium temperature is not high for 2 ° 52 '
Applications	1, small flow resistance. Body internal media channel is direct, medium flows in a straight line, small flow resistance. 2, more energy when opening and closing. Is compared with the cut-off valve, because whether on or off, ram direction are vertical to the phase with medium flow. 3, height, opening and closing time is long. Gate opening and closing of the trip is bigger, is through the screw. 4, water hammer is not easy to produce. Reason is the closing time is long. 5, medium can be on both sides to any direction, easy to install. Gate on both sides of channel is symmetric.
