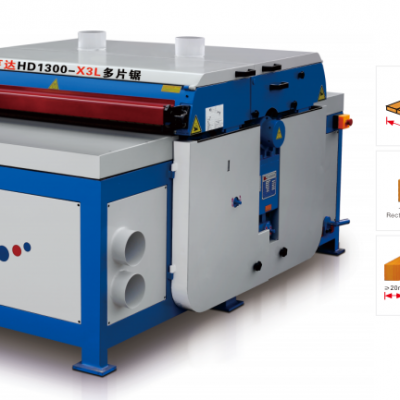

CNC Woodworking Machine Wood Panel Plywood Multi Blade Rip Saw Machine

Product Name: CNC Automatic Board Cutting Machine Multi Blade Rip Saw

Model: HD1300-X3L

Application: Cutting of solid wood composite flooring, laminate flooring, panel furniture, sound-absorbing panels, wooden packaging boxes, laminated lumber, photo frames, bed frames, and other types of boards into multiple pieces of equal or varying specifications at one time; processing grooves on the surface of the boards.

Technical Parameters:

Features:

· The frame adopts standardized profiles, which undergo aging vibration and annealing post-welding, followed by integral processing. The frame's reference surface is precisely flattened, ensuring superior stability of the machine.

· The spindle bearing seat is crafted from high-grade ductile iron casting and annealed, guaranteeing stability and reliability during high-speed operation. The spindle undergoes hardening and tempering, coupled with dynamic balancing, resulting in minimal vibration and robust durability.

· The machine features a closed safety cover and an automatic power cutoff protection device upon opening, ensuring safety and reliability in operation.

· The material pressing mechanism of this machine utilizes manual synchronous lifting and lowering. The eight sets of pressing rollers adopt a stable spring clamping method, ensuring synchronized pressing and quick, convenient adjustments.

· Equipped with a variable frequency motor for feeding, saving power, flexible, and precise, resulting in smooth sawing edges and reduced wear on the saw blade.

· Enhanced safety. A dual anti-rebound protection system is implemented: a set of anti-rebound protection devices that adjust with the plate thickness, coupled with a fixed anti-rebound protection device.

· Equipped with three sets of wear-resistant nitinol rubber feeding rollers, totaling 12 rollers, at the front and rear. These rollers offer superior anti-slip properties, enhancing smooth feeding and ensuring consistent power output. A set of pressure wheels above the spindle prevents board jumping during sawing, maintaining sawing smoothness. The front and rear surfaces feature power rollers, facilitating board feeding.

· The variable frequency adjustable feeding mechanism enables the feeding speed according to the thickness and hardness of various sheets, promoting smoother and more stable material feeding.
