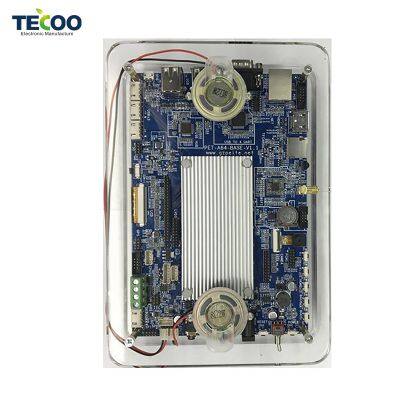

Custom Circuit Board Assembly

Custom Circuit Board Assembly Services

PCB Assembly Types: Surface Mount Technology (SMT), Ball Grid Array (BGA), uBGA/Micro BGA, Chip Scale Package (CSP)

Soldering techniques: selective wave soldering, high melting point (HMP) soldering, Pb88 soldering and Au80 soldering

Solder Type: Lead Solder, Tin Solder, Lead Free Solder/RoHS Compliant

Testing and Inspection: Flying Probe Testing (FPT), Automated Optical Inspection, X-ray Inspection

Provide you with various PCB prototype assembly services, including wiring harness assembly, injection molding, conformal paint.

Custom Circuit Board Assembly test program

Before final shipment, the assembled board will be subjected to various test methods:

Visual inspection: general quality inspection.

FAI: Full quality inspection of the first PCB to pass all stages of production.

X-ray inspection: Inspect BGAs, QFNs and bare circuit boards.

AOI Test: Check solder paste, 0201 components, missing components and polarity.

3D AOI testing: Check for missing and misplaced SMT components in three dimensions.

3D SPI Testing: Measure the precise volume of solder paste for SMT assembly.

ICT (Online Test).

Functional testing (as per your testing procedure).

ISO certification

Tecoo's production facilities are ISO9001 certified to ensure we exceed your expectations.

If you need a quote for PCB design, fabrication or assembly, please call +86-577-89776016, or email sales@tecoo.com. We need basic information such as board Gerber and BOM.
