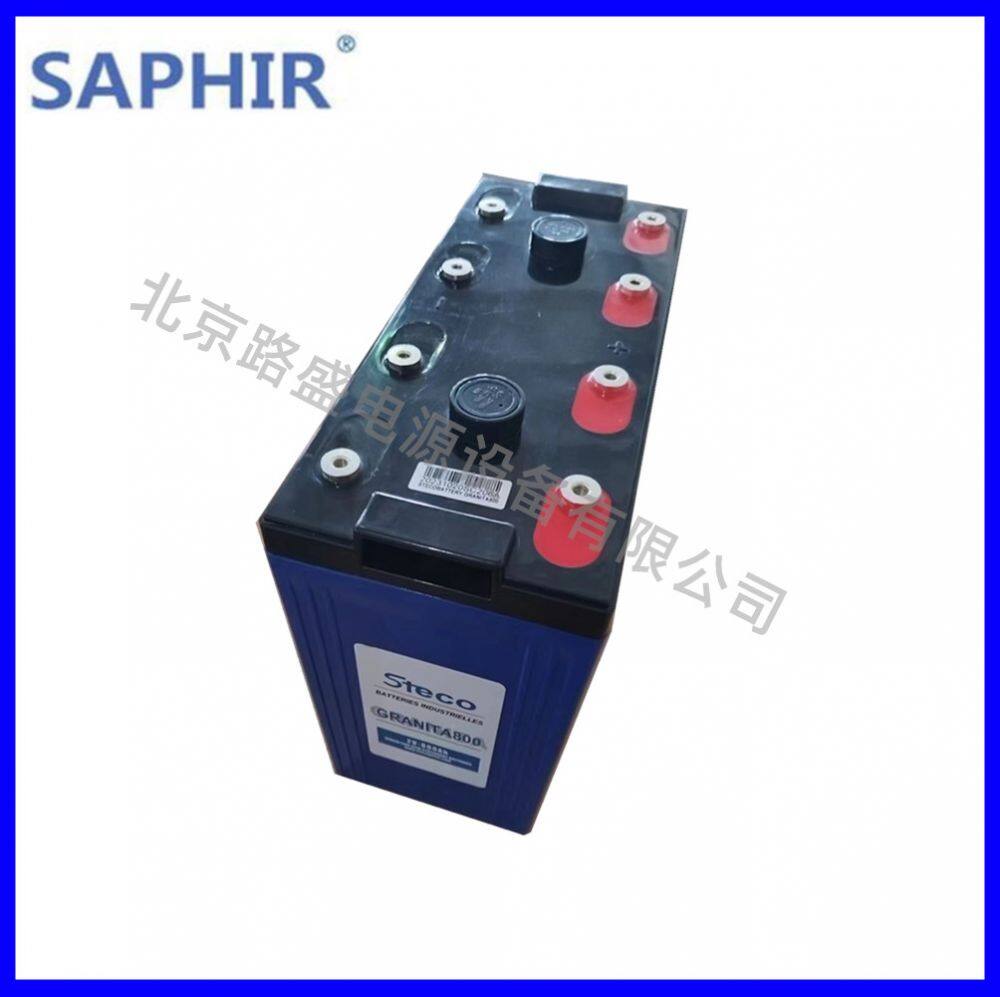

STECO high battery PLATINE12-38/UPS DC screen 12V38AH industrial grade

1、 Main technical characteristics of French SAPHIR batteries

SAPHIR batteries and accessories are only produced in OUTARVILLE, France, and quality is a guarantee of confidence.

2. The use of colored high impact resistant and fully flame-retardant polypropylene material as the battery casing has a flame retardant rating greater than 28% LOI standard, extremely low water vapor permeability, minimal maintenance, and longer lifespan. At the same time, anti-counterfeiting function is added to ensure the quality of the battery.

3. The side of the shell adopts thick vertical integrated ribs, which are common bulging phenomena in small and medium-sized batteries.

4. Unnecessary battery cabinets or rooms, suitable for outdoor use without affecting their electrical performance.

5. The safety valve on the top of the battery is equipped with an external gas recombination mechanism. The gas that cannot be recombined inside the battery is absorbed by the oxygen excess principle of the recombination mechanism, so that there is no harmful exhaust gas or acid liquid discharged from the battery. Therefore, it can be directly installed in the control room of the computer room without any harm to the human body.

6. The battery adopts a humanized design, and each battery is equipped with a handle for easy carrying, installation, and maintenance

7. Using lead tin titanium alloy as the electrode material of the battery, the discharge performance and stability of small and medium capacity batteries are achieved. (Moderate tin helps with electrode strength, silver improves electrode discharge performance, and titanium helps prolong electrode life)

The SAPHIR series batteries of high quality are the top rated products among small capacity sealed batteries, which can meet the limit requirements of EUROBAT regulations. Under normal use, there is no need for uniform charging, reducing maintenance workload.

9. SAPHIR is designed for use in harsh environments or important locations, suitable for outdoor use, and therefore requires minimal maintenance.

10. After high-temperature acceleration testing, its float charging life reached 15 years longer than that of small and medium-sized batteries

11. Due to the adoption of gas composite uniform control technology, alloy electrode plate technology, slot type chemical control technology, and liquid addition process, the uniformity of SAPHIR battery performance fully meets the limits of UTE NO NFC15-100. In future expansion and renovation sites, whether connected in series, parallel, or mixed series, the stability of the entire performance can be guaranteed. And there is no need to invest in replacing the battery.

2、 Precautions before installation

After checking for any abnormalities in the battery, install it at the designated location (e.g. battery room);

If the battery is placed in the battery room, it should be placed as low as possible in the battery room;

3. Avoid installing batteries near heat sources (such as transformers);

4. Due to the possibility of producing flammable gases during battery storage, installation should avoid proximity to devices that generate sparks (such as fuses);

Before connecting, polish the battery terminals to give them a metallic shine;

6. Be careful to short-circuit the positive and negative terminals of the battery with conductive materials.

When using multiple batteries together, first ensure that the batteries are connected correctly before connecting them to a charger or load. In this case, the positive pole of the battery should be connected to the positive pole of the charger or load, and the negative pole should be connected to the negative pole. If the battery and charger are not connected correctly, the charger will be damaged, so be careful not to connect them incorrectly. Remember to connect correctly.
