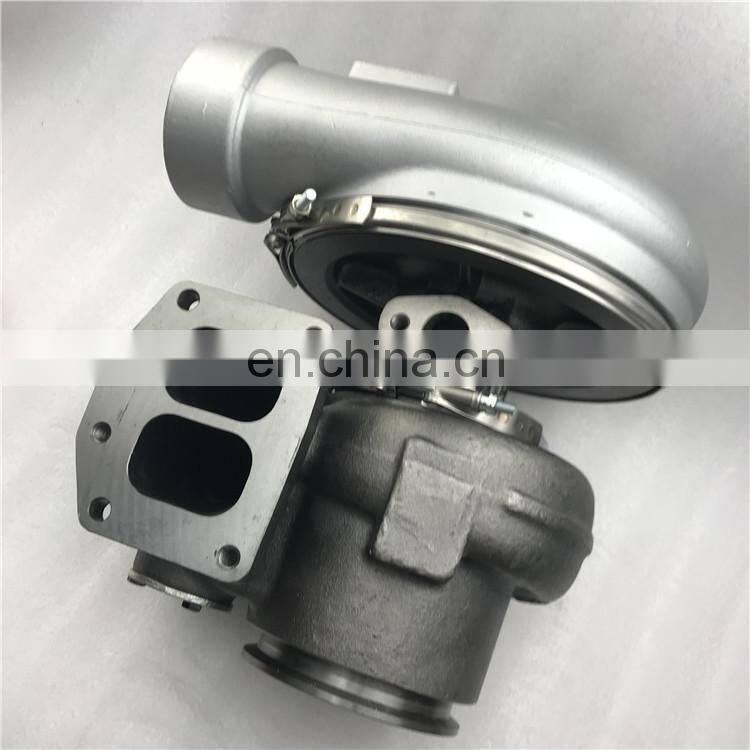

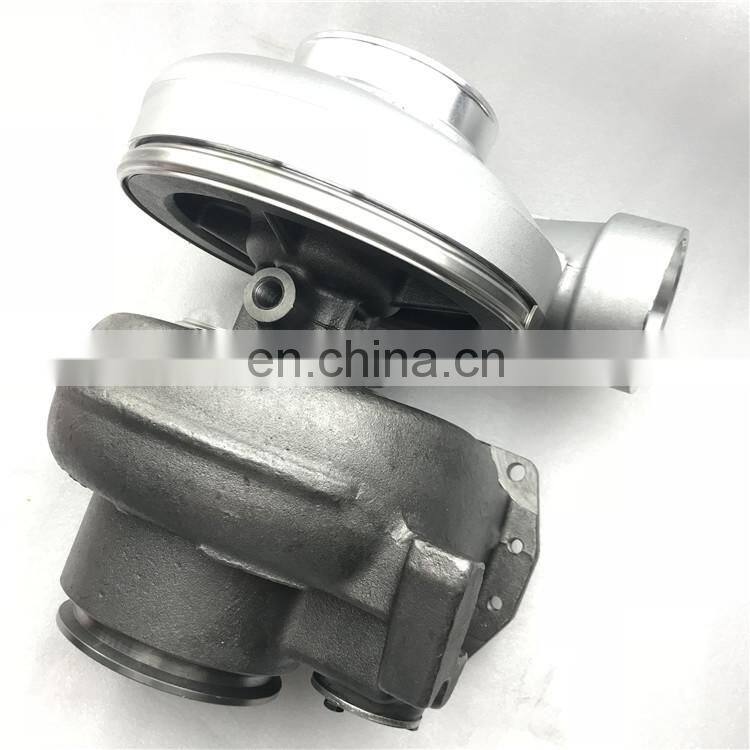

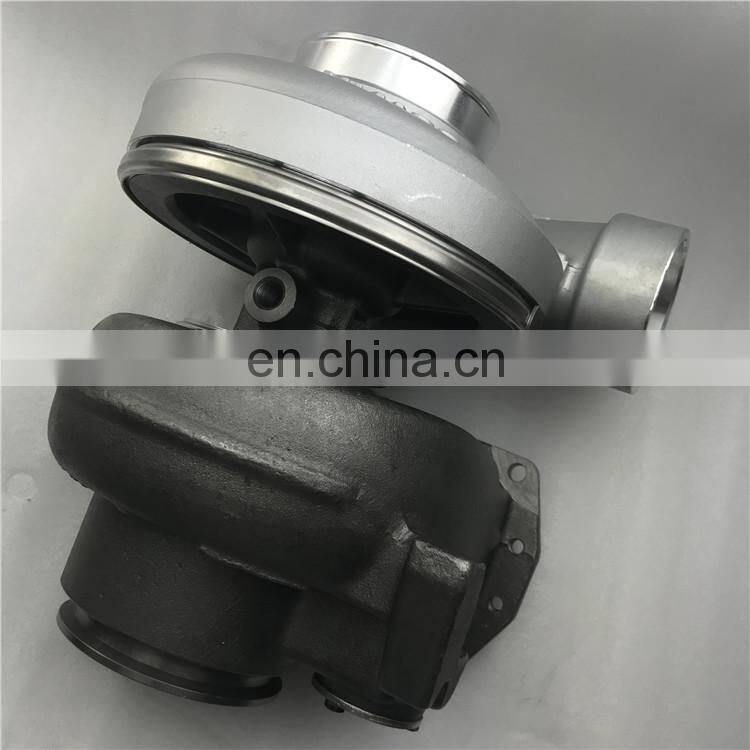

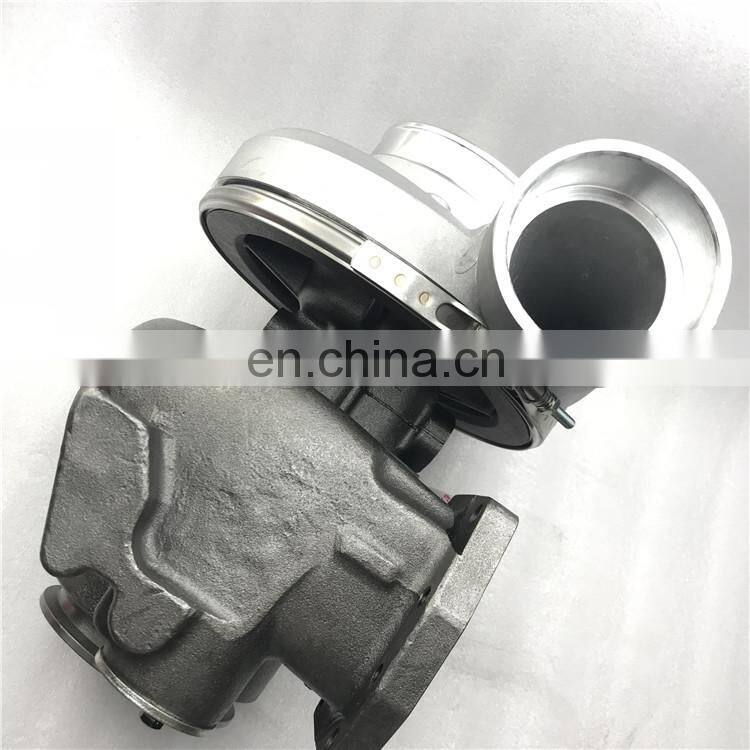

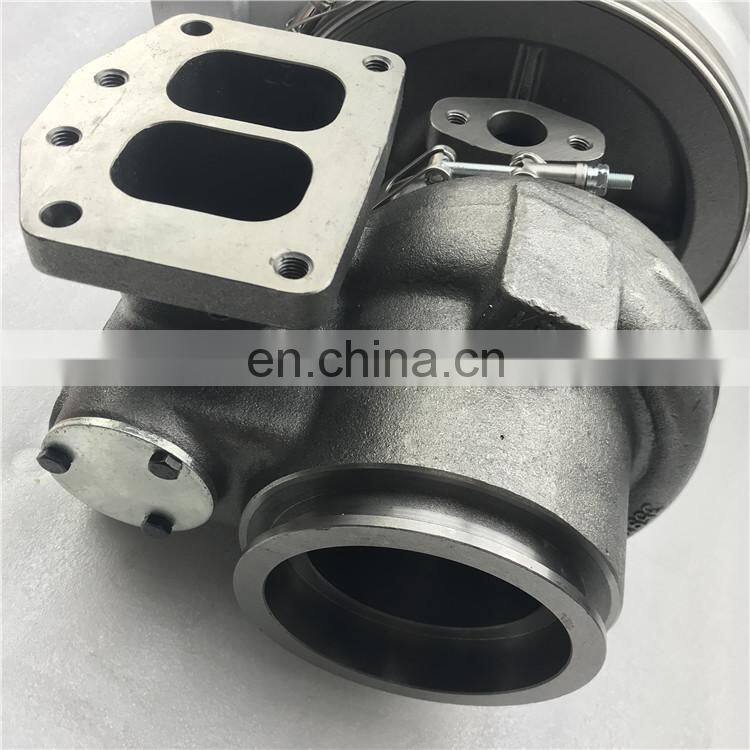

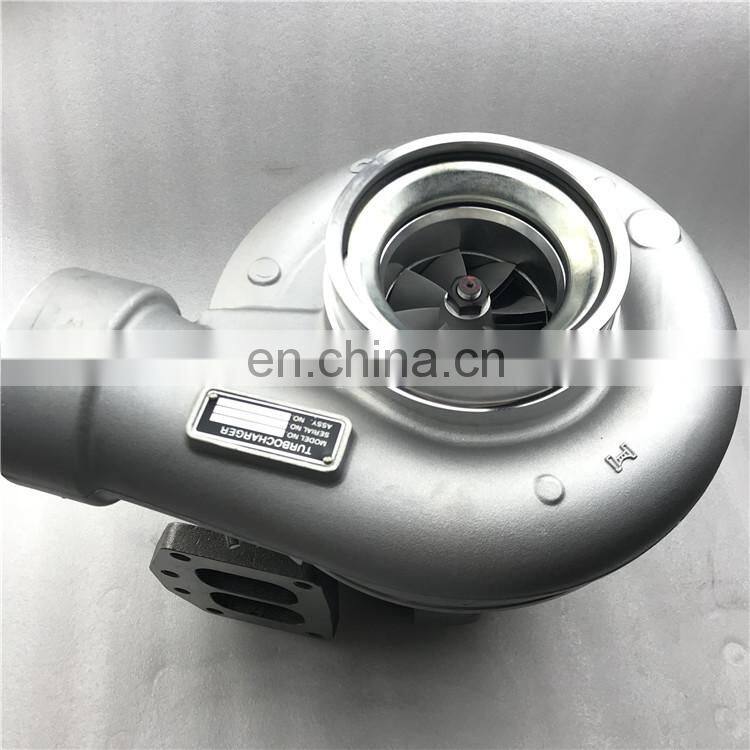

HX60 Turbo 4045532 3597488D 4045532D 3592376 3592377 DT16.02 Engine Truck SERIES 4

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

HX60 turbo 4045532 3597488D 4045532D 3592376 3592377 DT16.02 Engine Truck SERIES 4

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : _15

QQ: 1127776325

Products description

Part Number	4045532-D
Previous Version	4045532, 3597488-D, 4045532D, 3592376, 3592377
OE number	3596267, 1425385, 1489615, 574391, 1489615
Description	Truck, Series 4 Truck
CHRA	4027257 $1,301.02
Turbo Model	HX60-0988K/AV27LA1A, HX60
Engine	DT16.02, DT1602
Engine Manufacturer	Scania
Displacement	16.0L, 15600 ccm, V8 Cylinders
KW	353/480/580 HP
Fuel	Diesel
Angle α (compressor housing)	159º
Angle β (turbine housing)	67º
Bearing Housing	3536009 $406.86
Turbine Wheel	3532198 (353219800) (76. mm, 109. mm, Trim 49, 11 Blades) $698.56
Comp. Wheel	3531538 (78. mm, 109. mm 8+8 Blades) $499.00
Back plate	3531917 $67.06 NEW IN STOCK
Heat shield Number	3519155 $44.09
Repair Kit	4027881/3580568/3545345 (1153060750) $125.00 NEW IN STOCK
Turbine Housing	4045538
Compressor Cover	3592352
Lock nut,turbine shaft	3519535
Source Reference	1489615
Gasket (turbine inlet)	409038-0000 (132040, 52231083002) $17.21
Gasket (oil outlet)	210018 (129120,210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (Paper) (1900000025) $4.38
Replaced by	4045532D, 3597488D

Application

1996-11 Truck SERIES 4 with DT16.02 Engine

Products show

Company Profile

Wuxi Booshiwheel Power Technology Co.,Ltd is specialized in manufacturing turbochargers used for various vehicles and ships, including car, pickup truck, light truck, SUV and mechanical engineering. Our factory was established in 2003 in Wuxi City, covering an area of 3,000 square meters. Our business is comprehensive, integrating industry and trade. Our turbocharger is complete and varied for different engines and brands.
Our company has introduced advanced assembly lines from Japan, production lines, high-speed balancing and advanced detection equipment and produced a series of new items which can pass the test of the market.
The principle of our company is to provide high-quality turbochargers, professional service, and honest communication. Welcome all friends to place trial order for creating a long-term business relationship.

Exhibition show

Booshiwheel has attended the Auto exhibition in Shanghai China ,Thailand ,Turkey,Dubai, Russia,Germany,U.S.A and Panama

Welcome to inquiry!
