G25 Cartridge Turbo G25-550 858161-5002 871389-5005 Series Dual Ball Bearing 92AR V-Band Turbine Housing
- T/T Credit Card
You May Like
-
BOOSHIWHEEL G25 858161-5002S AR 0.72 871389-5005S G25-550 Ball Bearing 92AR V-Band Stainless Steel Turbine Housing
-
G25 858161-5003S AR 0.92 G25-550 Stainless Steel Turbine Housing Ball Bearing Turbo
-
G25-660 Standard Rotation AR 0.72 V-Band Cast Iron Turbine Housing Floating Bearing Turbocharger 871389-5010s Without Wastegate
-
G25-550 Standard Rotation AR 0.72 V-Band Cast Iron Turbine Floating Bearing Turbocharger Without Wastegate G Series 871389-5001s
-
G25-660 Standard Rotation AR 0.72 V-Band Cast Iron Turbine Housing Floating Bearing Turbo With Wastegate
-
G25-550 Standard Rotation Floating Bearing Turbo Charger AR 0.72 V-Band Cast Iron Turbine Housing With Wastegate 858161-5002s
Product Description

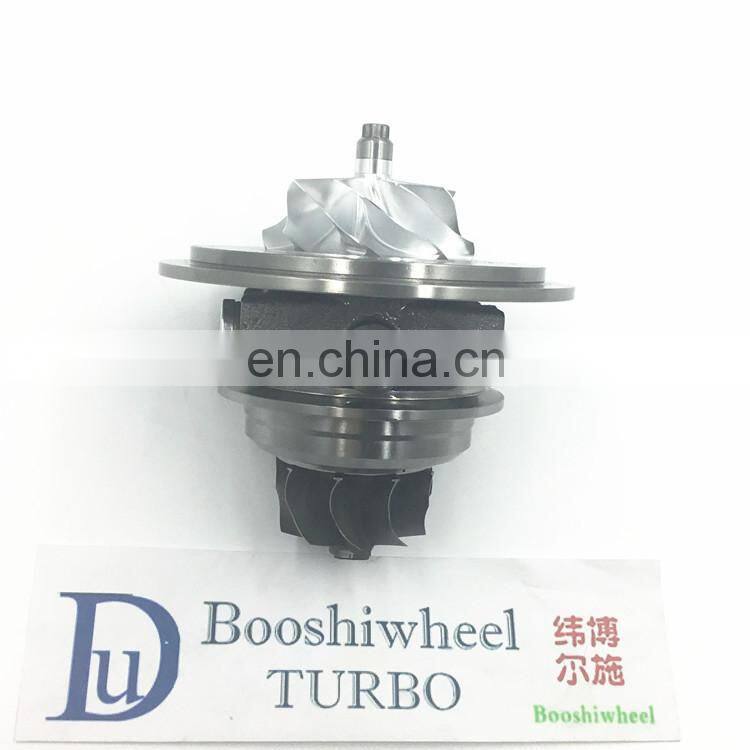

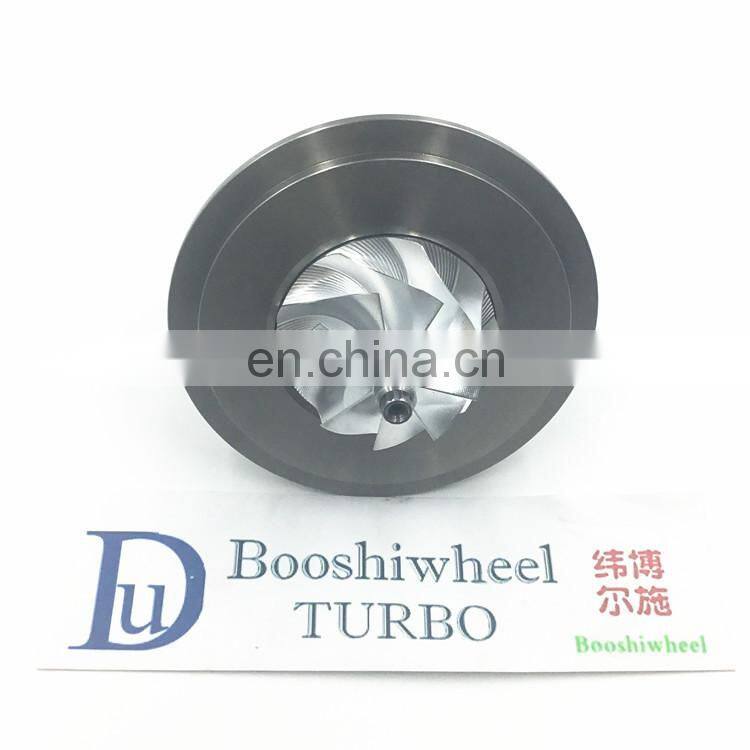

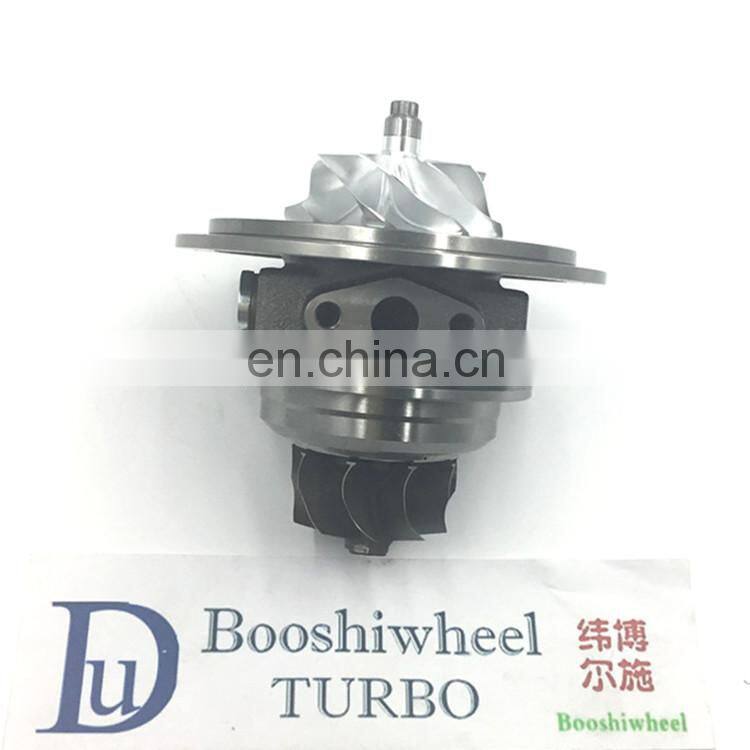

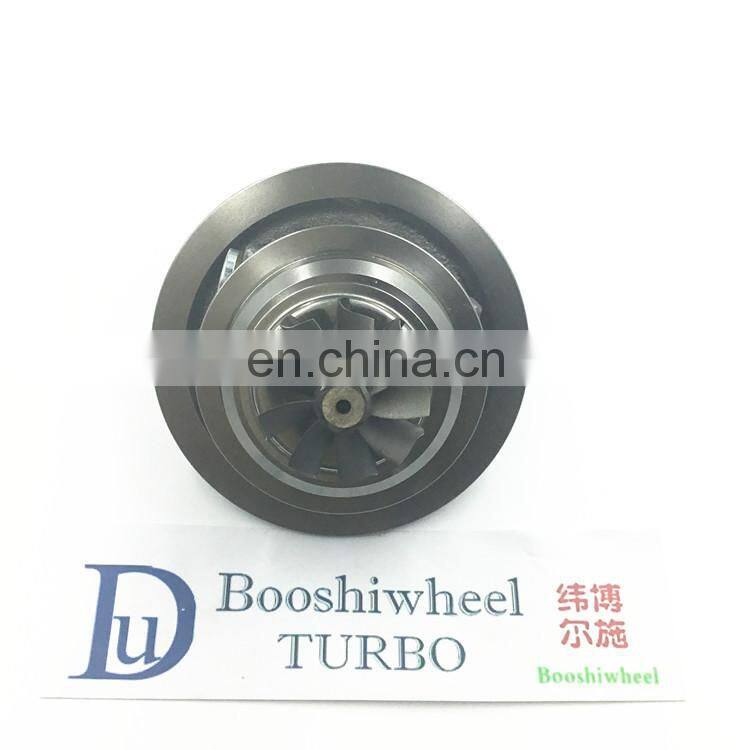

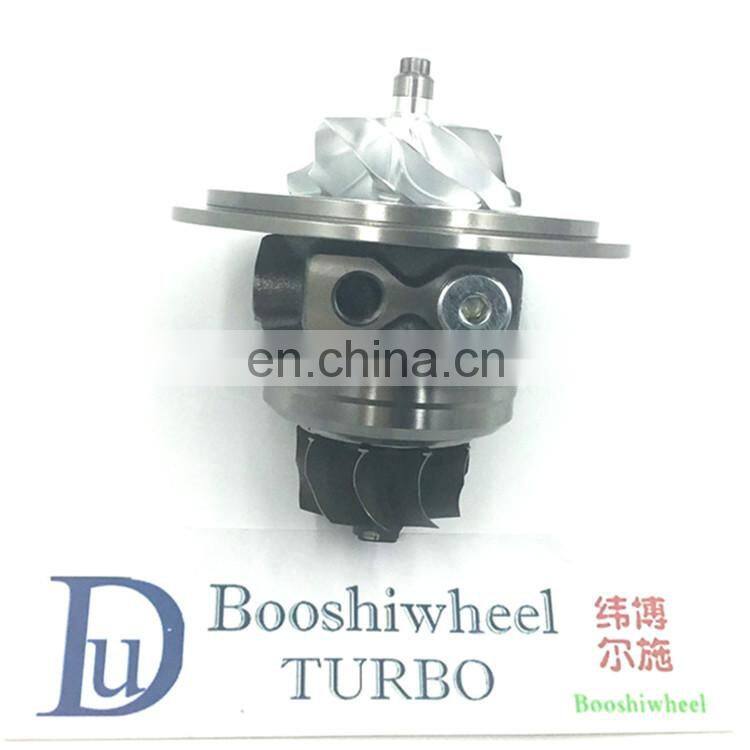

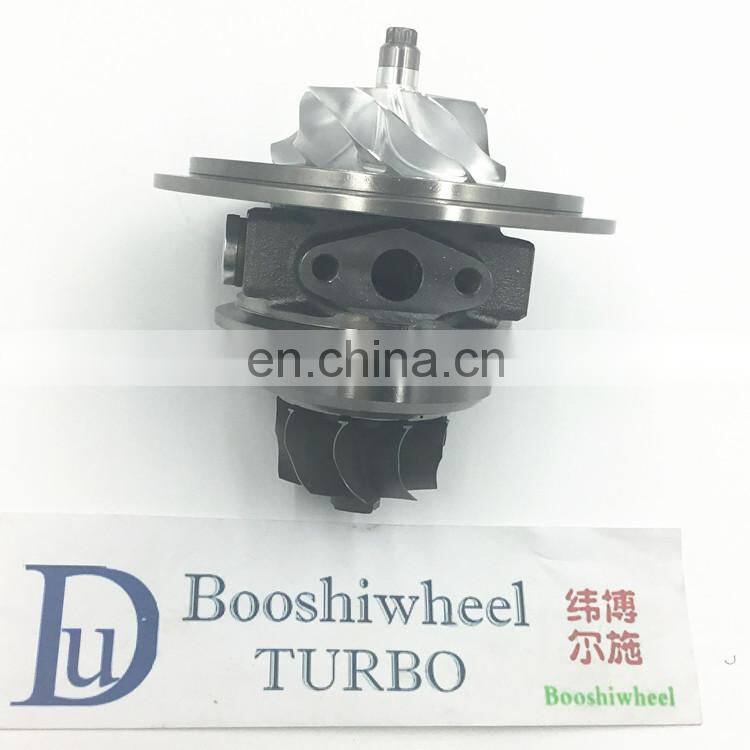

G25 cartridge turbo G25-550 858161-5002 871389-5005 Series Dual Ball Bearing 92AR V-Band Turbine Housing
Welcome to contact us :
Whatsapp / Wechat :+86 13606178432 Skype : _15
QQ: 1127776325
Products description
PRODUCT DESCRIPTION:
The Garrett G-Series G25-550 advanced small frame ball bearing turbocharger;
including a Garrett stainless steel V-Band Inlet & V-Band Outlet .92 A/R turbine housing (Garrett Part #871389-5005S). 550HP from a small frame package!
Ultra High Flow G-Series Compressor Wheel
Revolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
Includes -4AN oil feed fitting and -6AN coolant/water fittings
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 48mm
Compressor Wheel Exducer: 60mm
Compressor Wheel Trim: 65
Compressor Housing Inlet: 3 Inch Diameter
Compressor Housing Outlet: 2 Inch Diameter
Compressor Housing A/R: .70
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 49mm
Turbine Wheel Trim: 84
Turbine Housing Inlet: 3 Inch O.D. V-Band
Turbine Housing Outlet: 3.55 inch O.D. V-Band
Includes Oil Feed (1mm) Restrictor Fitting to -4AN
Includes two Coolant Fittings to -6AN
1.Our main products are turbocharger,turbo cartridge/chra/core,nozzle rings,electric actuator valve ,turbo repair kit and so on
2.We usually supply original size turbo ,and also we can modify size according to customers requirement .
3.Our own factory ,high quality and lowest price .
4.Our aim is :quality assurance ,credit first ,mutual benefit ,customers first .
Products show
Packages
plastic paper, shock bubble, neutral carton,pallet or as your requirements
CVE Electron Beam Welding from UK
Studer CNC grinding machine from Switzerland
Okuma CNC machine from Japan
Schenck balancing machine from Germany
Rotor shaft production workshop
Turbine wheel production workshop
Turbine housing production workshop
Bearing housing production workshop
Turbocharger assemble workshop
Booshiwheel has attended the Auto exhibition in Thailand ,Turkey,Dubai, Russia,Germany,U.S.A and Panama in 2018 year
Why you choose us?
1.We are Assessed Gold Supplier and trade assurance .
2.We have our own factory , best production capability ,best quality control, Best Service .
3. Inspected by the Inspection Institution of SGS /CE /ISO.
4. 100% qualified inspection Before Shipment .
Company Profile
1.Wuxi Booshiwheel Power Technology Co,Ltd.,established in 2002,is engaged in designing and producing turbochargers and turbo parts that are used in vehicle and engineering machinery.We can also provide maintenance and technological services.
2.The company has imported Japanese advanced equipments,such as assembly line,processing production line and high speed balance,as well as the latest testing facilities.
3.The company’s business concept are “make contribution to the development of society by technology” and “talent is the biggest and unique wealth”,focus on manufacturing global the most cost-effective turbochargers.
Last ,we are looking forward to cooperating with you .
