Air Dryer for Compressor

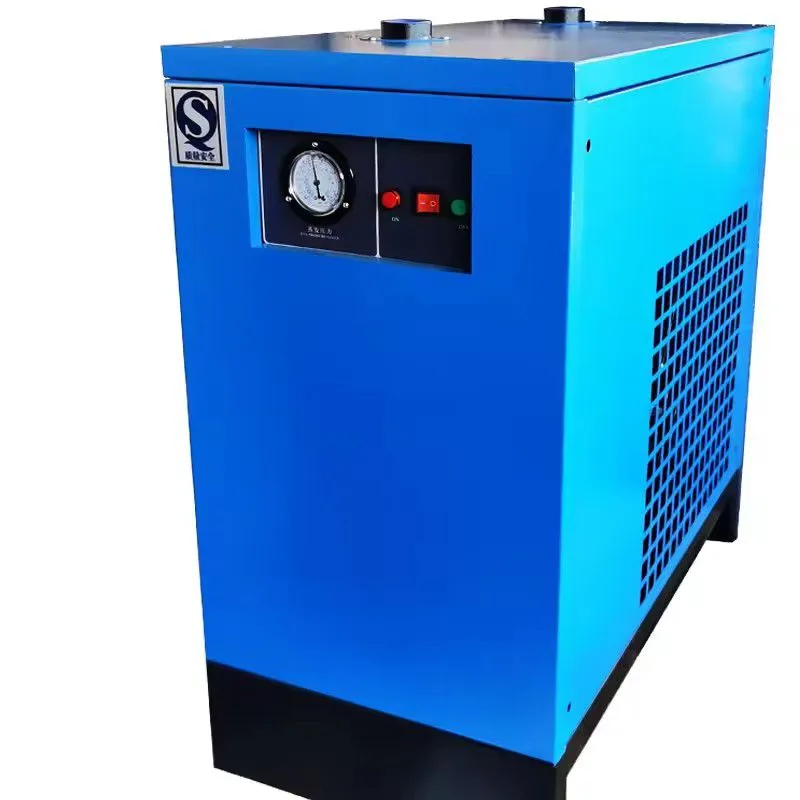

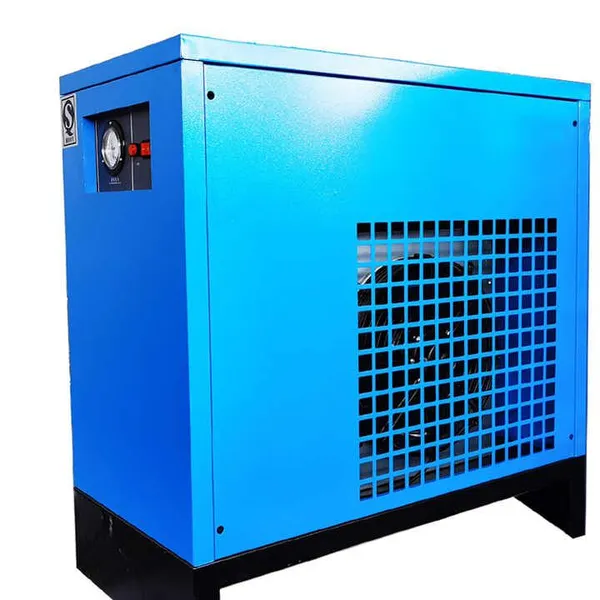

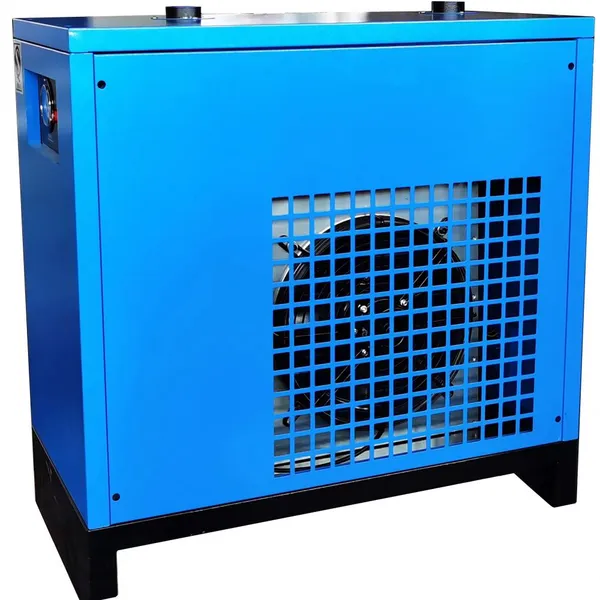

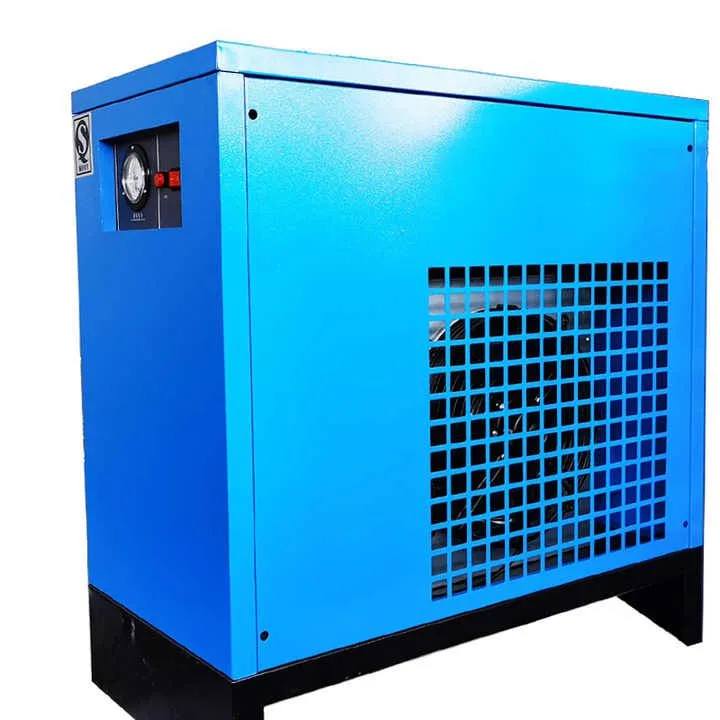

Air dryer refrigerated type 13bar compressed air dryer for compressor
Main Features
Energy saving: aluminum alloy three-in-one heat exchanger design minimizes the process loss of cooling capacity and
improvesRecycling of cold capacity, the total input power of this model is reduced by 15~ under the same processing capacity50%.
High efficiency: the integrated heat exchanger is equipped with guide fins to make the compressed air uniform inside Heat
exchange, built-in gas-water separation device with stainless steel filter screen, water separation is more thorough.
Intelligent: Multi-channel temperature and pressure monitoring, real-time display of dew point temperature, automatic recording
of accumulated operating time, self-diagnosis function, display of corresponding alarm codes, and automatic protection of
equipment.
Environmental protection: In response to the international Montreal agreement, this series of models all use R134a and R410a
environmentally friendly refrigerants, which have zero damage to the atmosphere and meet the needs of the international market.
Stable: The standard is equipped with a constant pressure expansion valve, and a standard configuration with intelligent
temperature control. In the laboratory test, when the intake air temperature reaches 60°C and the ambient temperature reaches
35°C, it still runs stably, and has a temperature Degree pressure double antifreeze protection. While saving energy, it extends
the service life of the equipment.
| Model No. | Pressure (Mpa) | Capacity (m3/min) | Power (kw) | Connecton Size | Noise dB(A) | Weight (kg) | Dimension (mm) |
| BK7.5-8G | 0.8 | 1.2 | 7.5 | G3/4 | 72 | 200 | 800x620x800 |
| BK11-8G | 0.8 | 1.7 | 11 | G1 | 72 | 280 | 1000x670x1090 |
| BK15-8G | 0.8 | 2.4 | 15 | G1 | 73 | 280 | 1000x670x1090 |
| BK18-8G | 0.8 | 3 | 18.5 | G1 | 74 | 350 | 1200x800x1120 |
| BK18-10G | 1 | 2.7 | |||||
| BK22-8G | 0.8 | 3.6 | 22 | G1 | 74 | 390 | |
| BL22-10G | 1 | 3.2 | |||||
| BK22-13G | 1.3 | 2.7 | |||||
| BK30-8G | 0.8 | 5 | 30 | G1 1/2 |
75 | 470 | 1340X850X1330 |
| BK30-10G | 1 | 4.4 | |||||
| BK30-13G | 1.3 | 3.6 | |||||
| BK37-8G | 0.8 | 6 | 37 | G1 1/2 |
76 | 560 | |
| BK37-10G | 1 | 5.5 | |||||
| BK37-13 | 1.3 | 4.6 | |||||
| BK45-8G | 0.8 | 7.1 | 45 | G1 1/2 | 78 | 720 | 1480X1030X1365 |
| BK55-8G | 0.8 | 10 | 55 | 80 | 790 | ||
| BK75-8 | 0.8 | 13 | 75 | G2 | 81 | 1200 | 1800X1190X1710 |
| BK90-8 | 0.8 | 16 | 90 | 1240 | |||
| BK110-8 | 0.8 | 21 | 110 | DN65 | 82 | 1680 | 2100X1230X1730 |
| BK132-8 | 0.8 | 24 | 132 | 1750 |
