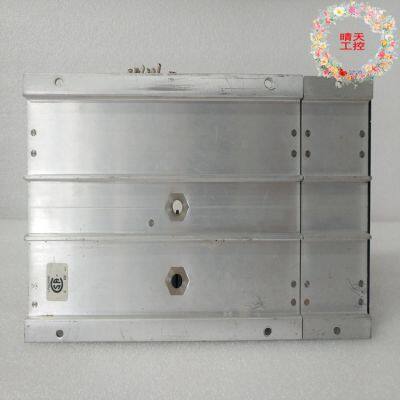

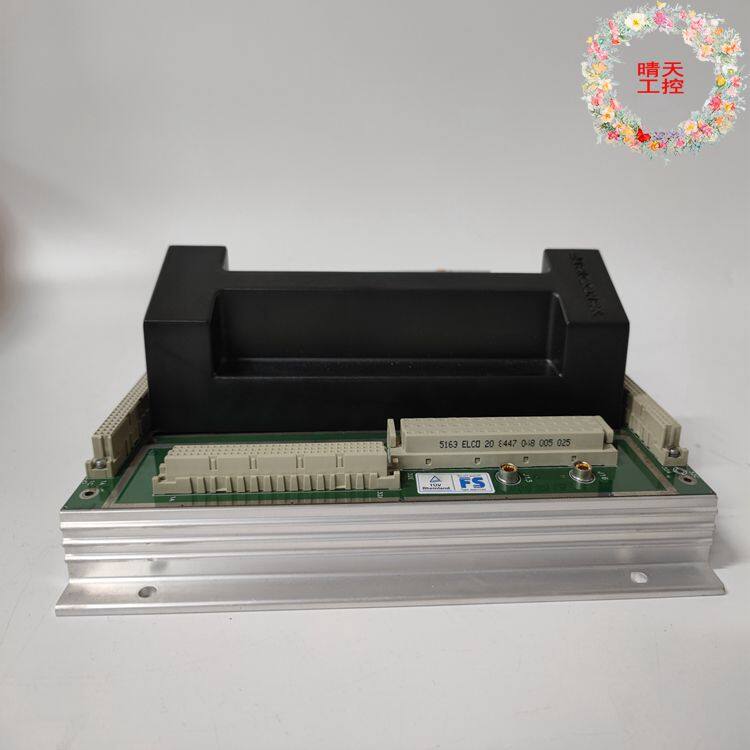

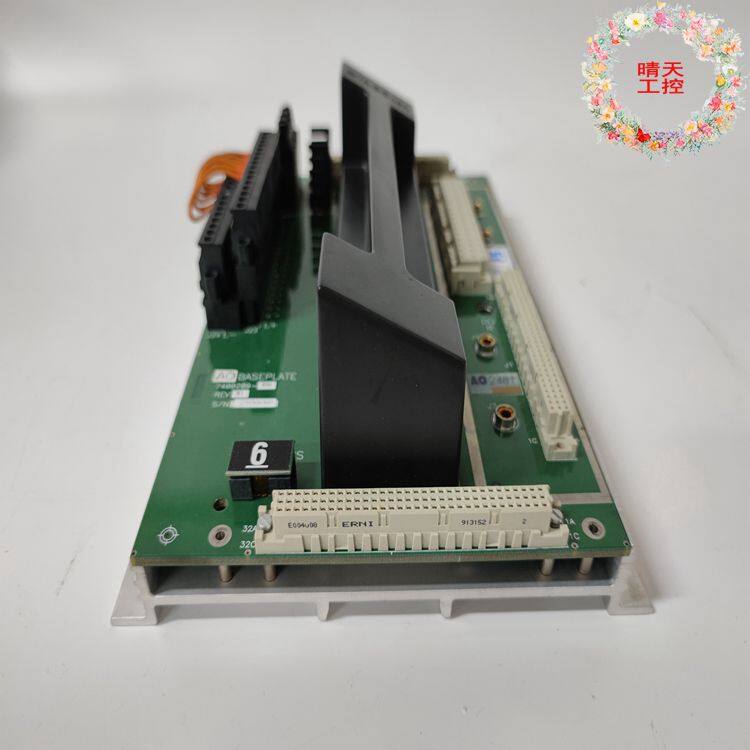

TRICONEX 2481/AO2481 Module

 TRICONEX 2481 module

The TRICONEX 2481 is a widely used module in industrial automation and control systems with a range of important parameters and functions.

Here is some information about the TRICONEX 2481:

Interface and communication:

The TRICONEX 2481 module has eight ports that can be addressed on 8-bit, 16-bit, or 32-bit boundaries.

Thirteen jumpers are provided to provide infinitely short data input/output address mapping options.

Equipped with differential signal input features, common-mode input voltage ranges from -30 to +66V and input sensitivity is ±100mV.

The module also features a high input impedance (33 kω) and single-ended signal input with 1% threshold accuracy.

Physical characteristics: TRICONEX 2481 modules typically weigh about 1.6 kg to 2 kg.

Application environment: The module is suitable for industrial automation and process control, and is often used in applications requiring high reliability and stability.

Encoder function:

The TRICONEX 2481 module is able to trace the input signal to the encoder and convert multiple input signals into fewer output signals through specific coding rules, which is very useful in reducing the number of pins, the number of signal transmission lines, or simplifying other systems.

Software and Accessories:

The accompanying software includes tools for configuration, debugging, and troubleshooting, as well as software for building a browser-based interface.

The learning hub pack may include other hardware components such as processors, power supplies, input/output modules, etc.
