Azerbaijan YDS-15 Liquid Nitrogen Cell Storage Tanks TcCryo Semen Storage Tank

Azerbaijan YDS-15 Liquid Nitrogen Cell Storage Tanks TcCryo Semen Storage Tank photo-1
Azerbaijan YDS-15 Liquid Nitrogen Cell Storage Tanks TcCryo Semen Storage Tank photo-2
Azerbaijan YDS-15 Liquid Nitrogen Cell Storage Tanks TcCryo Semen Storage Tank photo-3
Azerbaijan YDS-15 Liquid Nitrogen Cell Storage Tanks TcCryo Semen Storage Tank photo-4

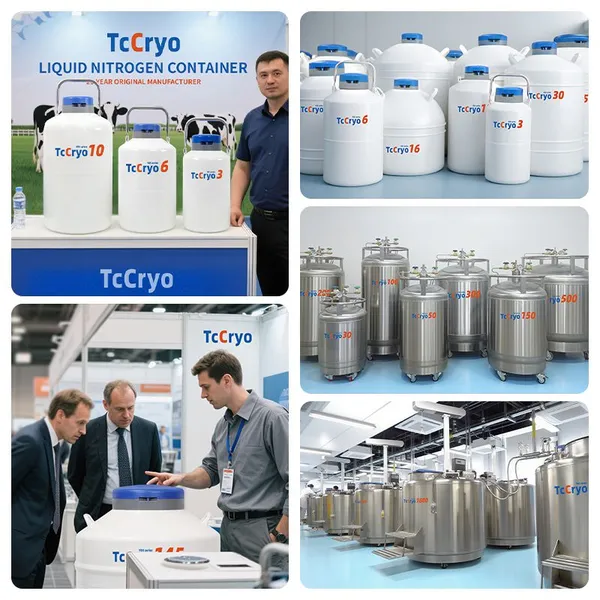

Azerbaijan YDS-15 Liquid Nitrogen Cell Storage Tanks TcCryo Semen Storage Tank photo-5

Product Spotlights

Animal Breeding LN₂ Tanks • High Capacity: Custom design maximises AI semen storage. • Field-Ready: Rugged, lightweight aluminium for remote ranches. • Efficient: Superior vacuum extends LN₂ retention times. • Reliable: ISO/CE certified with a 5-year vacuum warranty.
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Low Temperature Storage & Transportation Equipment
Certification:
ISO9001, GB, Other, CE
Warranty:
1 year
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
7 days

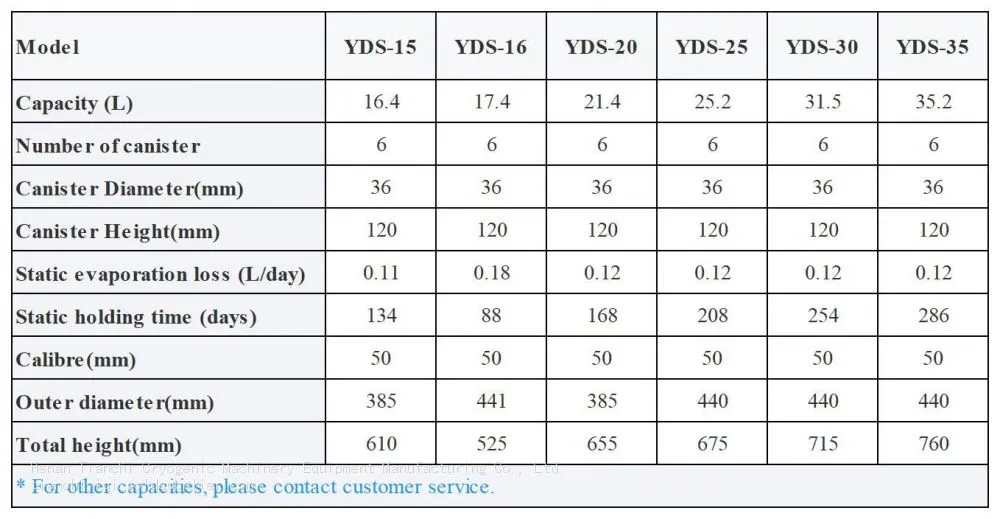

Type Low Temperature Storage & Transportation Equipment
Certification ISO9001, GB, Other, CE
Warranty 1 year
After-sales Service 1 year
Tank Marerial Other, Aluminum
Storage Objects Liquid
Customized Non-Customized
Condition New
Tank Volume 16.4L
Tank Diameter 50mm

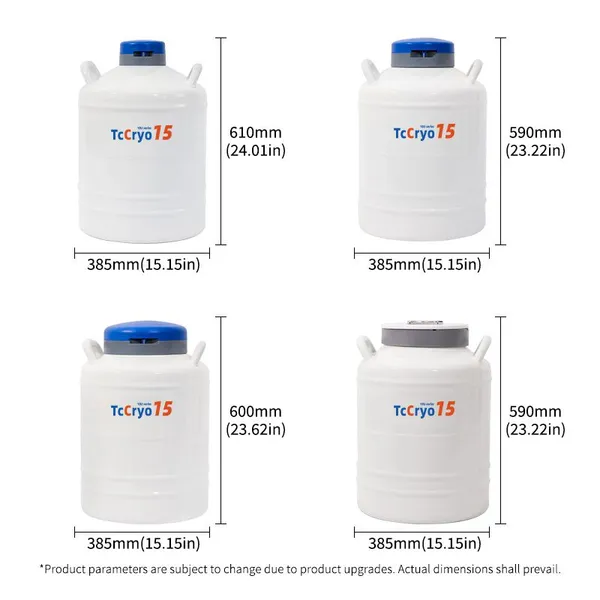

Total Height 610mm
Outer Diameter 385mm
Static Evaporation Rate 0.11 L/day
Static Shelf Life 134 days
Transport Package Carton
Specification YDS-15
Trademark TcCryo
Origin China

Portable liquid nitrogen tanks, with their lightweight design and easy operation, are ideal for use in laboratories, healthcare organisations and the livestock industry. Available in a wide range of sizes from 1 litre to 10 litres, the TcCryo liquid nitrogen tanks provide the perfect solution for both small laboratory sample and liquid nitrogen storage and large scale livestock frozen sperm transport.

Product Features:

Diversified capacity options: 1 litre, 2 litres, 3 litres, 6 litres, 10 litres, with various specifications, there is always one for you.

A variety of calibre design: 1 litre and 2 litre calibre is 35mm, 3 litre calibre is 50mm, 6 litre and 10 litre have 50-210mm calibre, adapting to the needs of various occasions and ensuring the safe storage of samples of different sizes.

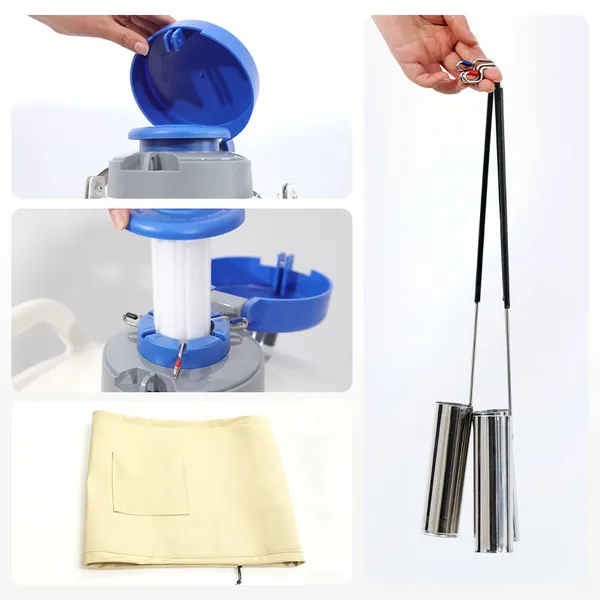

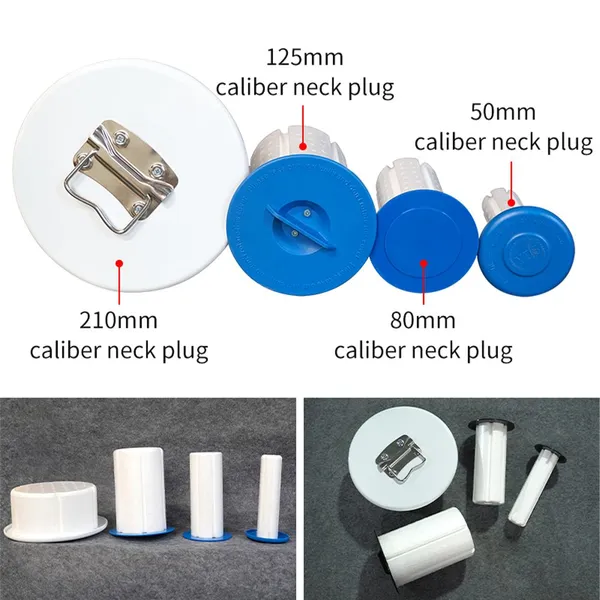

Complete accessories: the portable liquid nitrogen tank comes standard with a locking lid, PU protective sleeve, polyurethane foam neck plug, and 3 round buckets.

Although the model is small, the storage capacity is not small: among them, the commonly used 3-10 litre liquid nitrogen tank can be placed in 6 round buckets, and the size of the buckets is about 38mm*120mm. When frozen fine tube is 0.25ml, each bucket can store about 298 pcs, the whole can be loaded with about 1788 pcs; when frozen fine tube is 0.5ml, each bucket can store about 132 pcs, the whole can be loaded with about 792 pcs. 2 litres, the size of the bucket is a little smaller, the amount of frozen fine tube is 204, 90 pcs or so.

In addition, there are.

High-strength aluminium alloy material: lightweight and durable, easy to carry, adapt to a variety of working environments.

High vacuum multi-layer adiabatic: effectively reduce the daily evaporation of liquid nitrogen, prolong the preservation time of the sample.

5-year vacuum quality assurance: our commitment to product quality, so that you can use without worry.

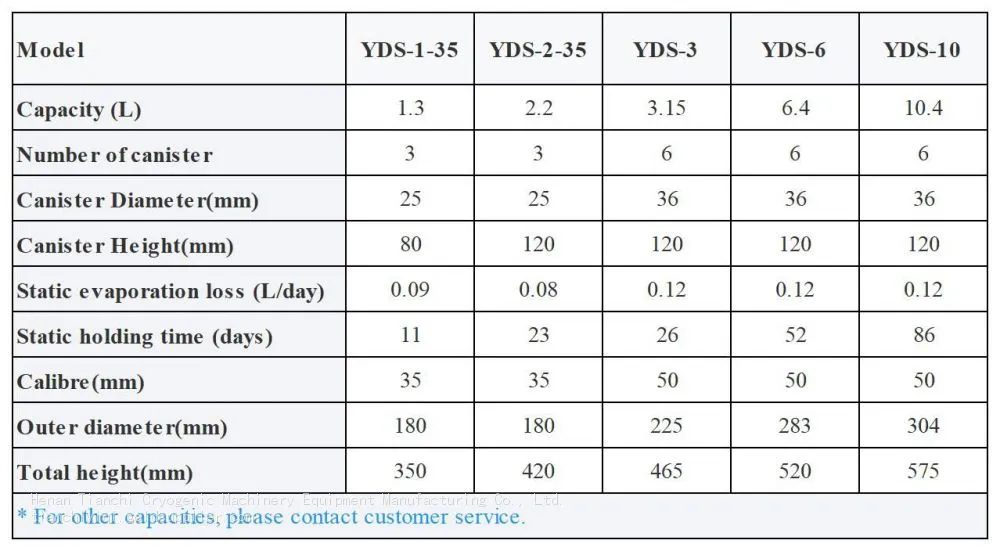

Technical parameters highlights:

Model YDS-2-30: static liquid nitrogen preservation period up to 30 days. (3 litre 50 is the same)

Model YDS-6-50: Static liquid nitrogen preservation period up to 63 days.

Model YDS-10-50: Static liquid nitrogen shelf life up to 98 days.

Notes for use:

Portable liquid nitrogen tanks are designed for liquid nitrogen storage and cannot be filled with liquid ammonia or liquid oxygen.

Please wear warm gloves during operation to avoid injury caused by liquid nitrogen splash.

Check the liquid level regularly and replenish the liquid nitrogen in time.

Maintenance and care:

Clean at least 1-2 times a year to ensure that the inner liner is clean and maintain the quality of the sample.

Make sure it is fixed firmly when transporting, avoid impact and collision.

Choose TcCryo liquid nitrogen tank to provide professional, safe and efficient solution for your sample storage. Contact us now to learn more about our products and customise your own sample cryogenic storage equipment.

Email: tcln2container@126.com

Whats App: +8618903712477

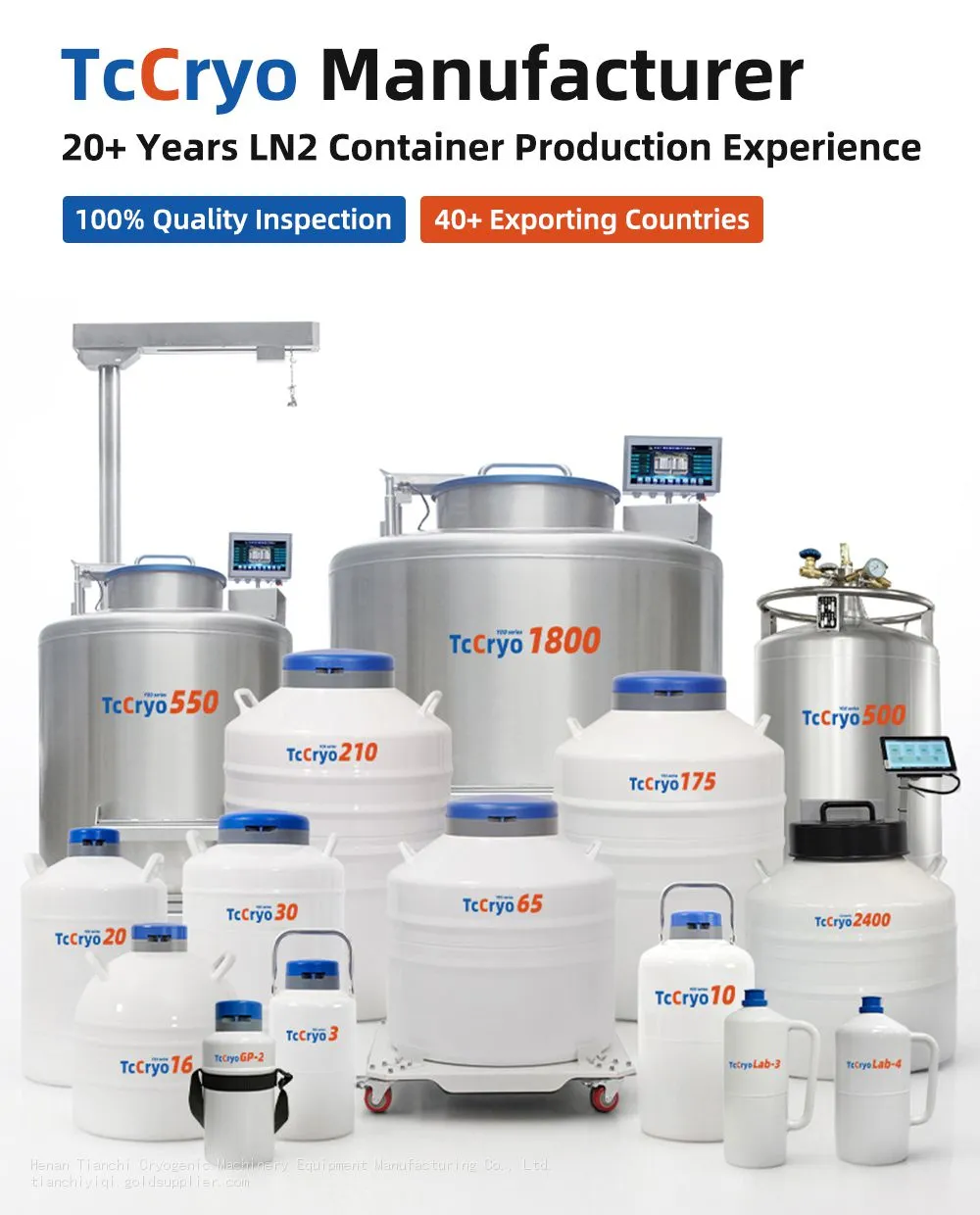

TcCryo liquid nitrogen container

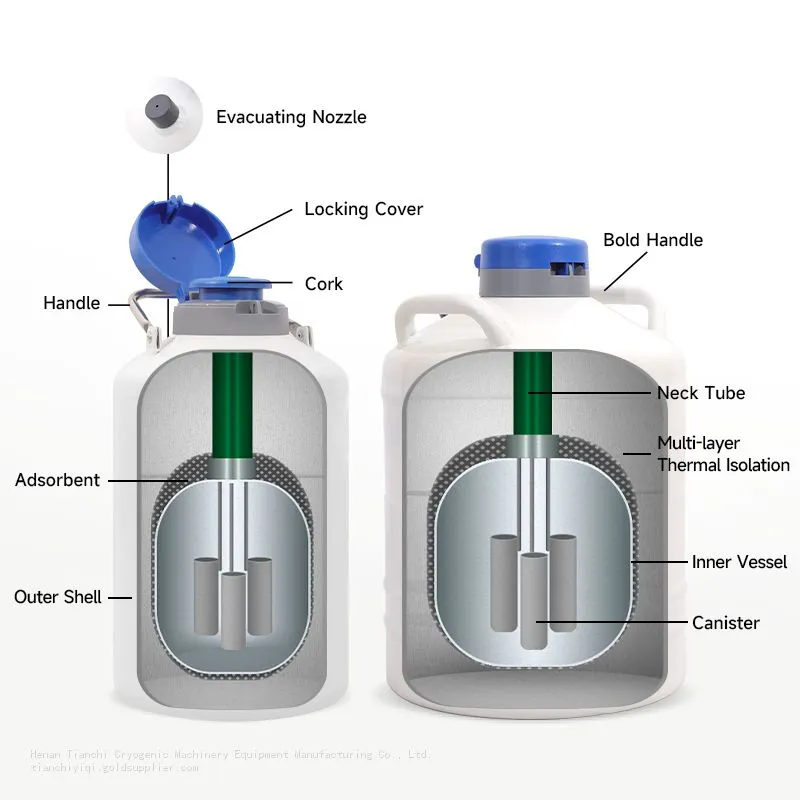

TcCryo Structure of Cryogenic Vessels

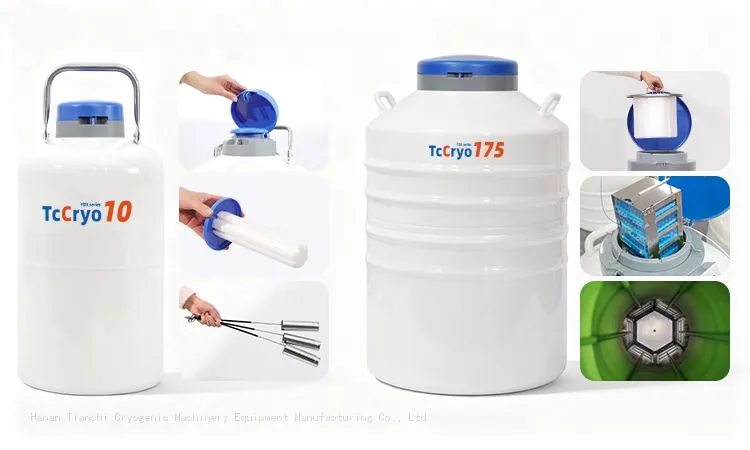

Liquid Nitrogen Tank Components

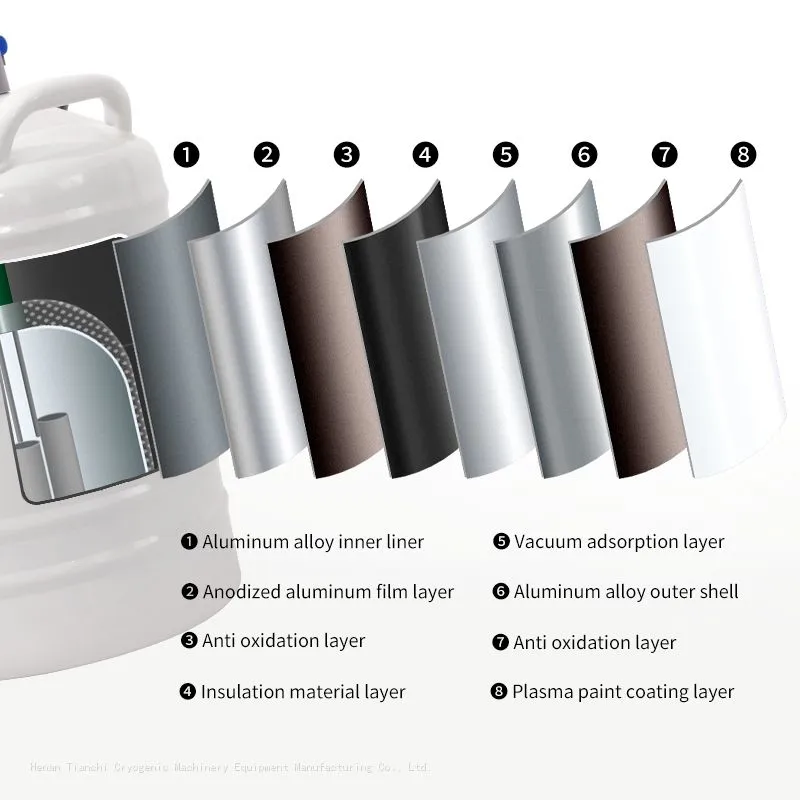

TcCryo Multi-Layer Insulation for Liquid Nitrogen dewarsTcCryo Applications of Liquid Nitrogen Tanks

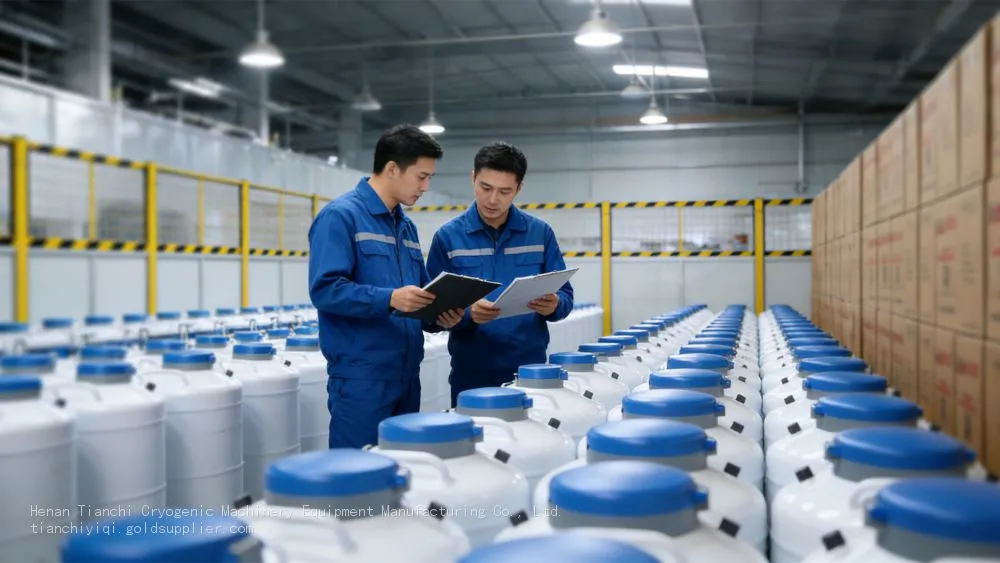

TcCryo LN2 supply

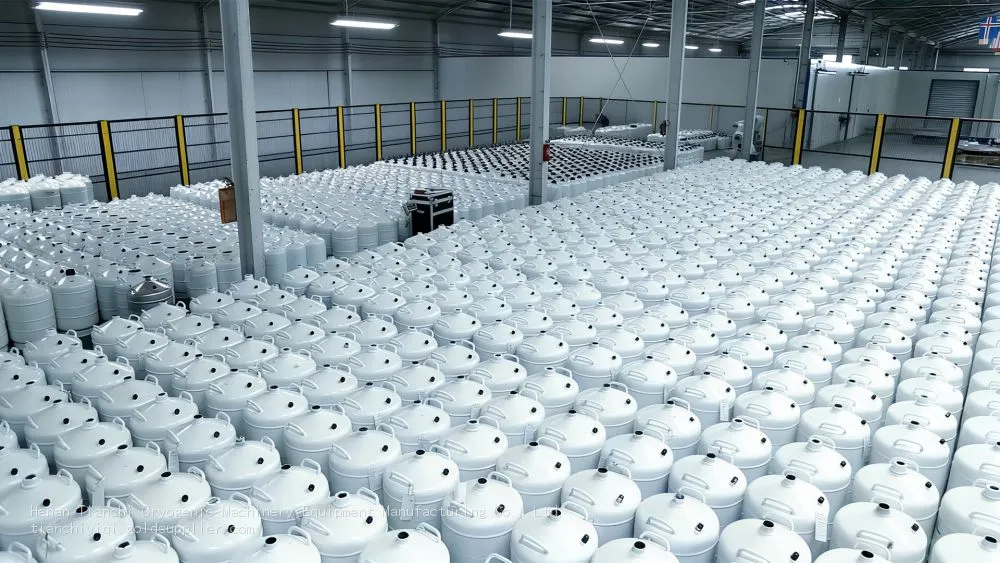

TcCryo liquid nitrogen container manufacturer
