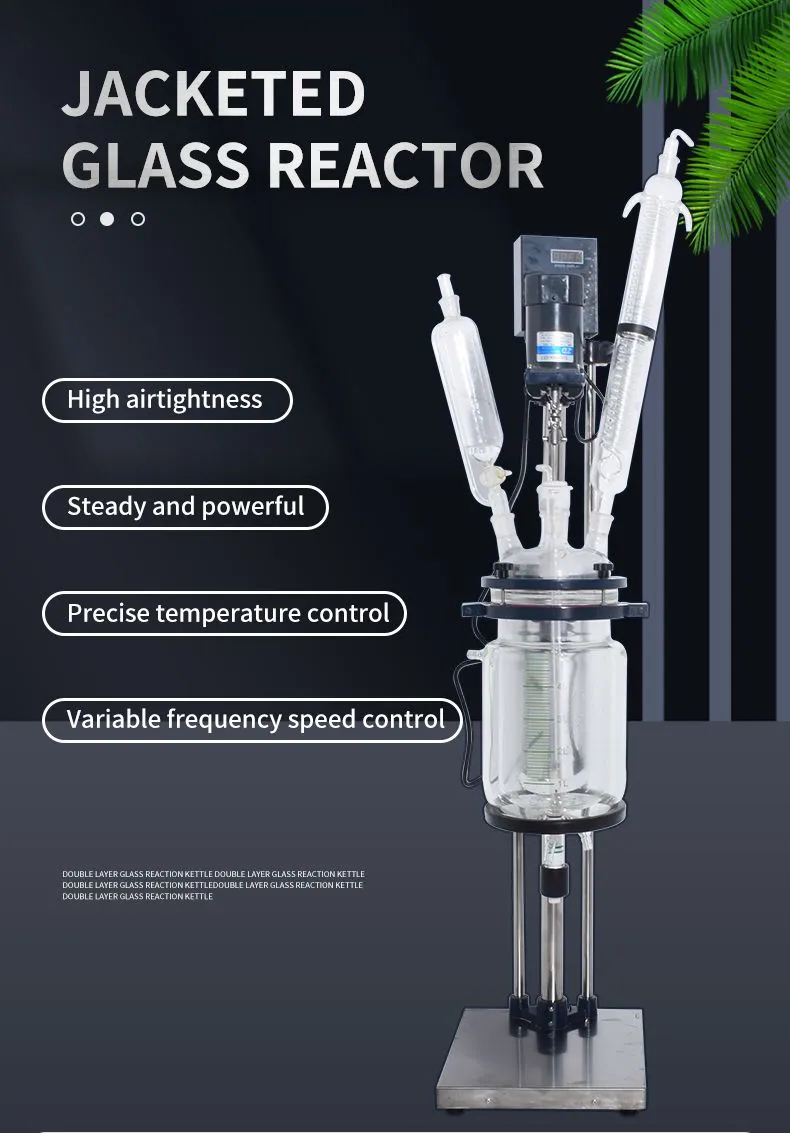

Small Jacketed Glass Reactor Double Layer Reaction Systems for Laboratory
Brief introduction:
The kettle body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the
reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the
reaction can also be used in high temperature, low temperature, or vacuum experiment reflux and distillation of the
reaction solution. It is the ideal equipment for primary and secondary schools of modern chemistry experiments,
biopharmaceutical and synthesis of new materials.
Features:
1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties
2. Limit temperature of 250°C for high temperature experiments, and limit temperature of -60°C for low
temperature experiments.
3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.
4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more
convenient.
5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and
continuous work.
6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.
7. The bottom flanged discharge port with a Teflon value, aluminum parts flange fixed container no dead ends.
Technical parameter:

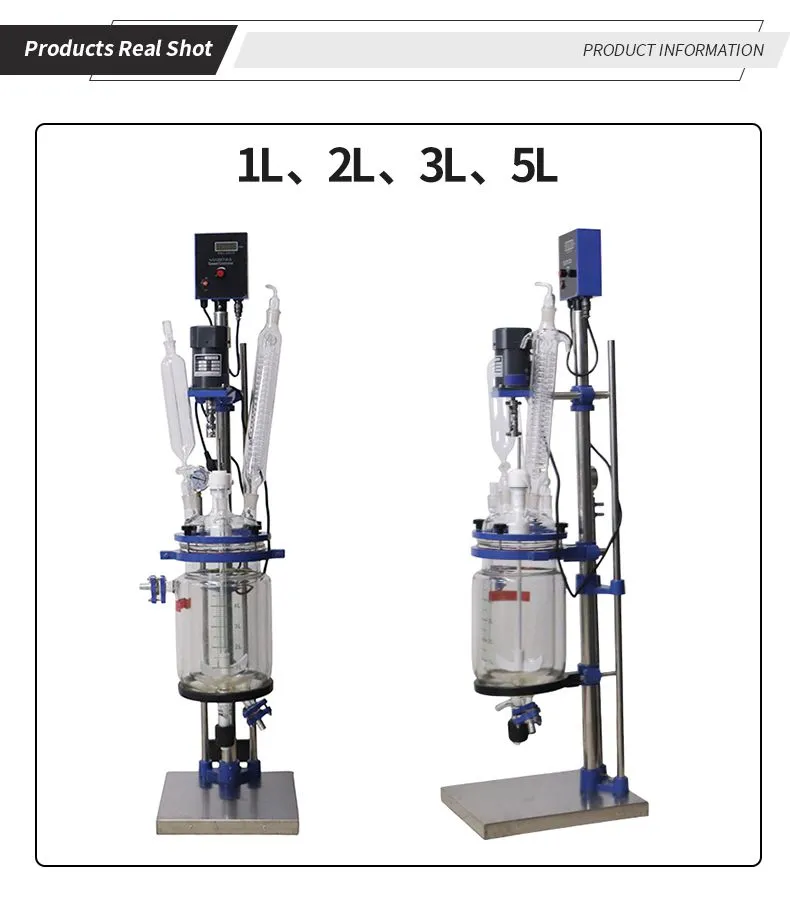

Models |
NB-5L |
NB-3L |
NB-2L |
NB-1L |
Volume(L) |
5 |
3 |
2 |
1 |
Power(w) |
90 |
60 |
60 |
60 |
Speed(rpm) |
20-600 |
|||
Mixing torque(1300r/min) |
5000g.cm |
5000g.cm |
5000g.cm |
2400g.cm |
Inside and outside tube diameter |
200*230 |
200*230 |
150*180 |
150*180 |
Size(cm) |
44*32*84 |
44*32*84 |
44*32*84 |
35*27*65 |
