Railroad Gear Rail Track Jacks

Railroad Gear Rail Track Jacks photo-1

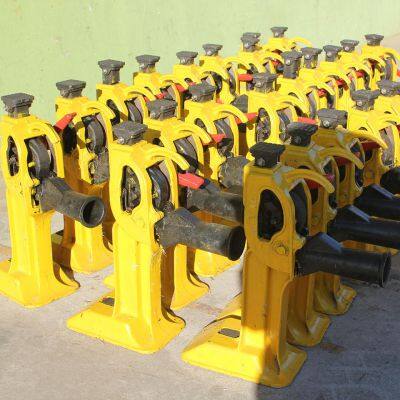

Railroad Gear Rail Track Jacks photo-2

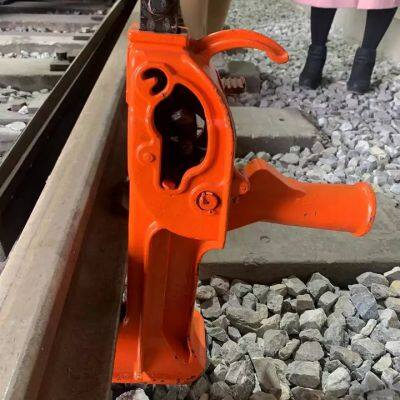

Railroad Gear Rail Track Jacks photo-3
Railroad Gear Rail Track Jacks photo-4
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Linkage
Place of Origin:
China
Model Number:
LJ-QD15
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
15 days
Brand Name Linkage
Place of Origin China
Model Number LJ-QD15
Material Stainless Steel
Dimensions (L x W x H) (mm) 310*165*520mm
Track Jacks
Track jack a device for raising railway track during ballasting or other track operations. Mechanical track jack is the simplest & sturdiest types of the jacks and widely used in Oil Fields, Railway Track Work,Ship Yards, Mining Operation, Construction &Heavy Duty Industrial Maintenance & Establishments. These Track jacks can be used to lifting both on down and up strocks. They're not only be lowered tooth by tooth but also can be made to tripped off by just moving the trip control.
Specification
Model
LJ-QD15
Type
Rail Track Jack
Material
Stainless Steel
Dimensions (L x W x H) (mm)
310*165*520mm
Rated top lifting force
147HN (15T)
Rated hook lifting force
78kN
Lifting stroke
≥270mm
Initial height
60mm
Weight
≤25kg

Product Tags: Railroad Gear Jacks , Rail Lifting and Lining , Track Jack
