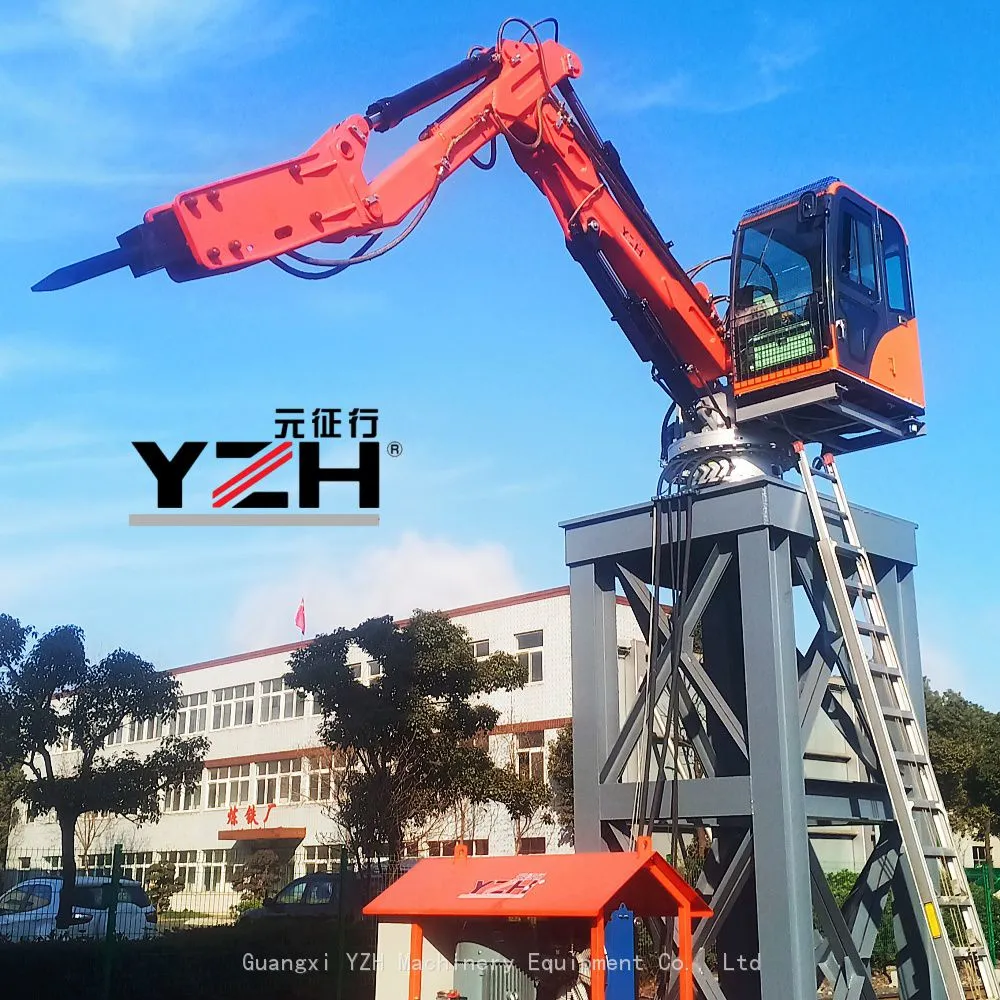

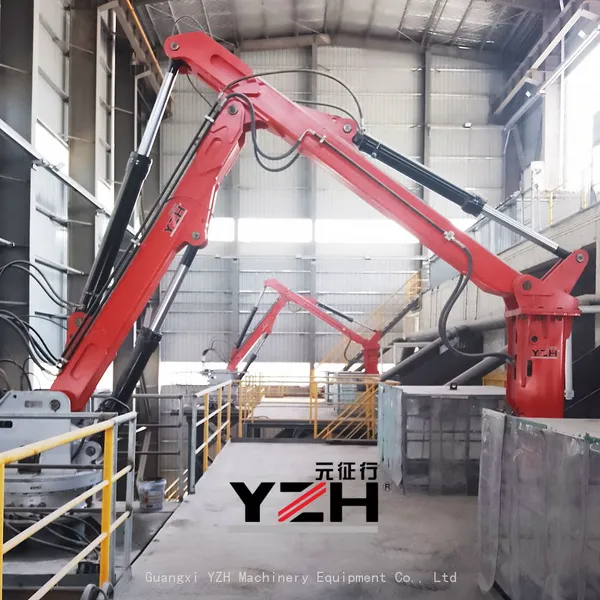

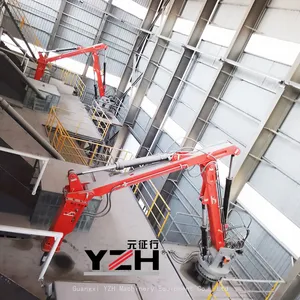

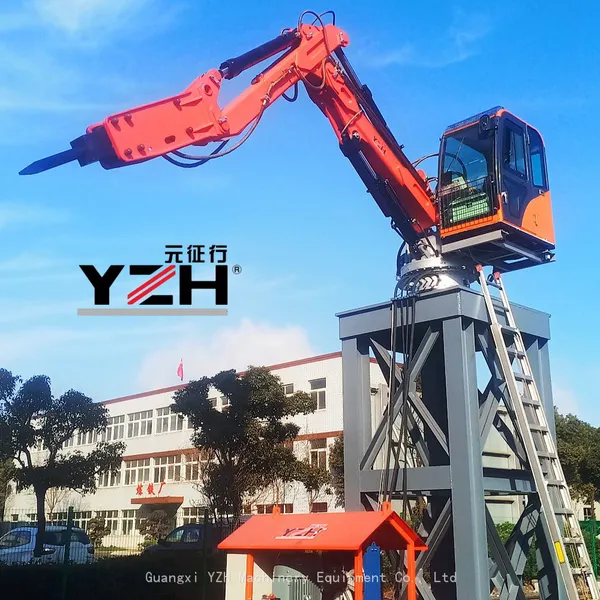

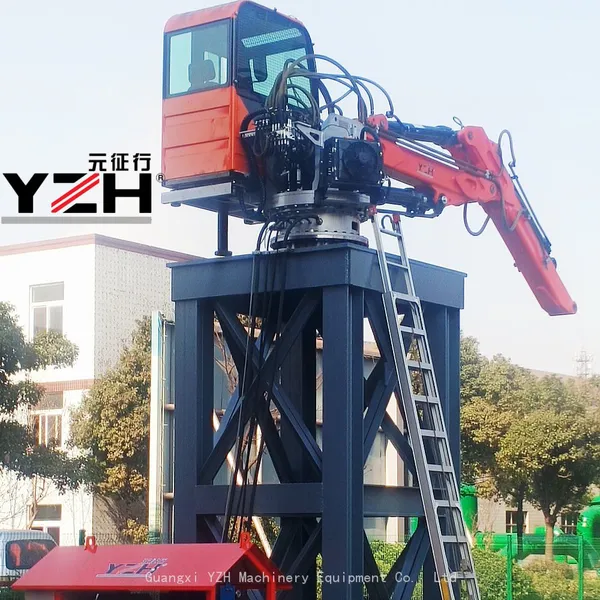

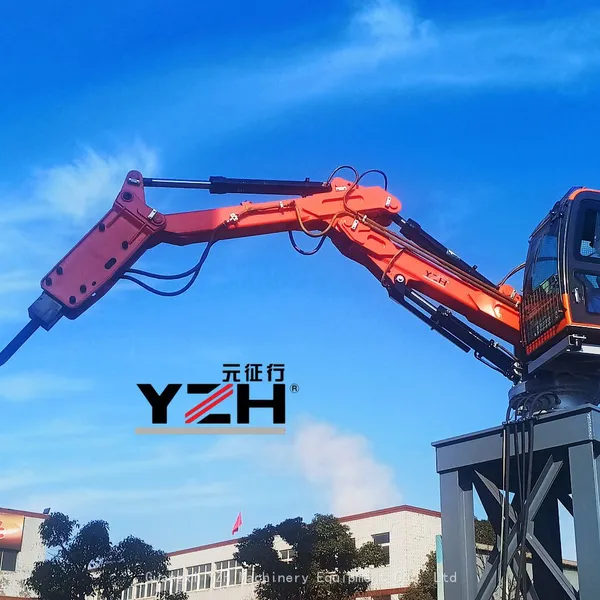

Pedestal rockbreaker boom system
YZH's operation principle is "Quality is The Lifeblood Of Enterprise''.We keep up with the market trend and always provide customers with highly efficient and satisfactory one-stop service.YZH accepts customized services, and is fully capable of customized design and production according to the actual working conditions and requirements of customers to meet all the specific needs of customers.
The body of the Pedestal rockbreaker boom system is composed of a base, a rotating mechanism, a working device and an operating room (optional). The whole machine is modeled by three-dimensional drawing software for multi-directional simulation to determine the best working and installation range, and the structure is analyzed by finite element method to ensure that its performance meets customer requirements. Due to its unique working principle and structural characteristics, Pedestal rockbreaker boom system has many advantages in the sand and gravel industry:
1. Video surveillance + remote control can be used to achieve accurate fixed-point positioning, far away from the operation site, and improve the working environment.
2, equipped with high-quality hydraulic hammer, work efficiency is significantly improved; Overall system integration optimization design, better performance; High maintenance, the failure rate is reduced by 80% compared with traditional diesel equipment.
3, the configuration of high-performance damping system, reduce the impact load on the whole machine and infrastructure damage; The core components are configured with international first-class brands, and the quality is guaranteed.
4, motor drive, clean, energy saving, environmental protection and no pollution; The energy consumption cost is more than 50% lower than that of traditional diesel equipment.
| Model No | BHB350 | |
| Max.Horizontal Working radius | mm | 5890 |
| Max Vertical working radius | mm | 3830 |
| Min Vertical working radius | mm | 1790 |
| Rotation | ° | 360 |
| Boom weight | kg | 3030 |
