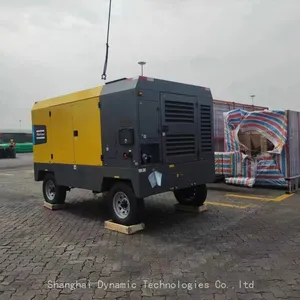

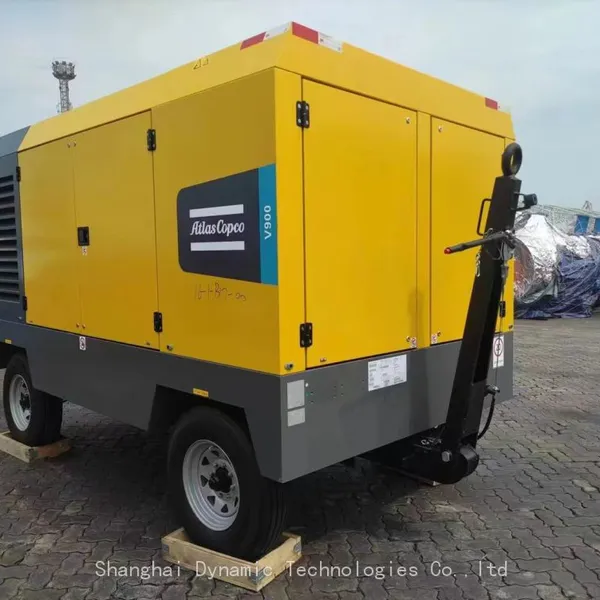

New Atlas Copco Mobile V900

Name: New Atlas Copco Mobile V900
Brand: Atlas Copco
SKU: 172484373

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Atlas Copco

Place of Origin:

China

Model Number:

V900

Shanghai Dynamic Technologies Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Atlas Copco

Place of Origin China

Model Number V900

Type Screw

After-sales Service Provided Overseas service center available

Warranty 1year

Weight 4600KG

Dimension(L*W*H) 4252*2100*2500

Condition New

Mute No

Lubrication Style Lubricated

Power Source Diesel

Configuration Portable

1、Main technical parameters

Air compressor form: secondary screw compression, air cooling, diesel engine drive, field mobile operation

technical parameter		V900
Free Air Delivery	m³/min	25.4-22.8
working pressure	bar	16-25
Engine maximum speed (full load)	rpm	1700-1900
Minimum engine speed (unloading)	rpm	1200
Volume of the screw lubricating oil	L	89 (Replacement volume per maintenance cycle)
Storage tank (gas separation tank) volume	L	143
Fuel tank volume	L	420
Oil content at the compressed air outlet	ppm
Compressed air outlet temperature (based on rated reference condition)	⁰C	100
Noise level (sound pressure level)	dB(A)	N/A
Rated reference conditions
Absolute intake pressure	bar	1
relative air humidity	%	0
Imported air temperature	⁰C	20
Extreme working conditions
Minimum gas storage tank pressure	bar	4
Maximum gas reservoir pressure	bar	26.5
Maximum ambient temperature	⁰C	50
Minimum start temperature	⁰C	-10
Highest altitude	m	3000（Used in lower working conditions over 3000 meters）

2、Diesel engine

Manufacturer		Cummins
Model		QSL8.9-C360-30
Output power at the rated rotation speed	kW	264
load factor	%	92
coolant		coolant
Number of cylinder		Inline 6 cylinder
Lubricating oil system volume	L	21 (Replacement volume per maintenance cycle)
Cooling system volume	L	58

3、Overall machine size and weight

Overall length-four-wheel trailer type	mm	4250 mop fold up (5050 mop set flat)
Machine length-box-type unit	mm	3830
Complete width	mm	2140
Overall height-four-wheel trailer type	mm	3020
Machine height-box-type unit	mm	2760
Operating weight (trailer / box)	kg	4600 / 4400
Air valve size	in	One 2-inch internal thread, high-performance safety slide valve
