4A Zeolite Molecular Sieve Desiccants for Methane Deep Drying

1. Introduction

4A molecular sieve is an alkali metal aluminosilicate, which can adsorb water, NH3, H2S, sulfur dioxide,

carbon dioxide, C2H5OH, C2H6, C2H4 and other molecules with a critical diameter ≤ 4A.

 It is widely used in the drying of gases and liquids, and can also be used for the refining and purification

of certain gases or liquids, such as the preparation of argon.

2. Technical Sepcifications

3. Application

3.1 Polyester additives

The function of 4A molecular sieve as a detergent additive is mainly to exchange calcium ions in water to produce

softened water, remove dirt and prevent dirt redeposit. 4A molecular sieve is currently the most used and most

mature product in phosphorus detergents. 4A molecular sieve replaces sodium tripolyphosphate as a detergent to

solve environmental pollution. 4A molecular sieve can also be used as a molding agent for soap and a friction

agent for toothpaste.

3.2 Sewage treatment

4A molecular sieve can remove NH3-N and Pb2, Cu2, Zn2, Cd2, etc. in sewage. The sewage discharged from industry,

agriculture, civil use and aquatic animal husbandry contains ammonia nitrogen, which not only endangers the survival  of fish, pollutes the breeding environment, but also promotes the growth of algae, resulting in the blockage of rivers and

lakes. Due to the high selective exchangeability of 4A zeolite to NH4, it has been successfully applied in this field. It comes

 from the sewage discharged from metal mines, smelters, metal surface treatment and chemical industries, and the heavy

metal ions contained in it are extremely harmful to the human body. Treating these sewage with 4A molecular sieve can not

only ensure qualified water quality, but also recover heavy metals.

3.3 Other uses

(1) Hard water softener -- water treatment can replace the sulfonated coal widely used in China, thereby reducing  cost.

(2) Metallurgical industry --separation agent to separate and extract potassium, rubidium, cesium, etc. in brine.

     It is used in industry for enrichment, separation and extraction of metals and other processes;

(3) Petrochemical industry ---- catalyst, desiccant, adsorbent;

(4) Agricultural ---- soil amendments;

(5) Silver zeolite antibacterial agent for pharmaceutical.

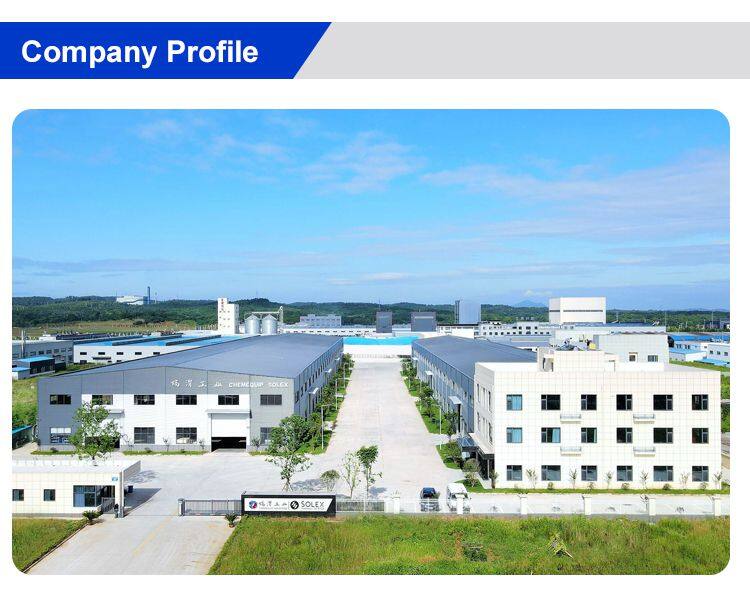

4. Company Introduction

Chemequip New Material Ltd. molecular sieve production line is a kind of fully automated airtight tumble pelletizer system, which has a stable production capacity and a high product quality. The company establishes a molecular sieve production base with an annual output of 20,000 tons in the Xuancheng Economic Development Zone, it covers an area of 35 acres with a factory area of 23,000 m2 and an R&D center of 1500 m2. It can provide molecular sieves types includes the 3A, 4A, 5A, 13X-APG, 13X-HP and also it can be custom-made according to the special requirements, shapes, or sizes required by customers.

5. Packing and Shipping

6. Customers Visit and Exhibition
