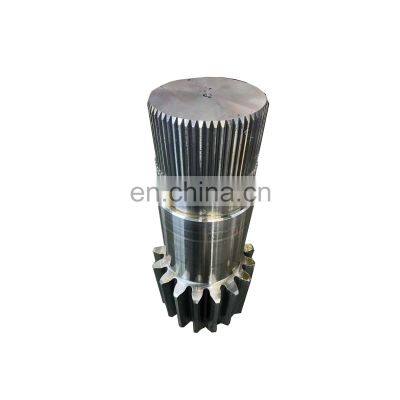

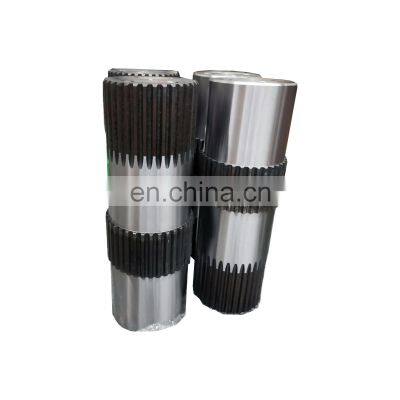

Motorcycle Transmission Parts and Main Transfer Case Steel Shaft Gear Shaft
US$ 80 - 80
/ Set
1 Set(Min. Order)
- T/T Credit Card
You May Like
-
High Quality Made in China Spline Shaft and Transmission Shaft
-
LYHGB Unequal Holes Slewing Ring Bearing With Hardening Tooth
-
LYHGB Heavy Duty Steel Bearing Housing Pillow Block
-
Factory Heavy Duty Grinding Mill Steel Bearing Housing Rotary Kiln Bearing Chock Big Bearing Block
-
LYHGB OEM Slewing Ring Bearing for Crane Excavator Slewing Bearing Large Diameter Swing Bearing
-
LYHGB Slewing Ring Bearing Manufacturer of Slewing Bearings
Product Description
Product Description
Our company can supply precision gears, shafts and flanges, and according to different working conditions, we can do normalizing, quenching and tempering, carburizing and quenching and other tooth surface heat treatment processes.
A gear shaft is a mechanical part that supports rotating parts and rotates with them to transmit motion, torque, or bending
moment. It is generally in the shape of metal rods, and each segment can have different diameters. The rotating parts of the machine are mounted on the shaft.
Equipment processing capacity:
The company has high-precision gear rolling, inserting and grinding machine tools, with CNC lathe, milling machine, internal and external grinder, and surface grinder as the basis, which can process spline shaft, spur gear shaft, helical gear shaft and other shaft products.
The production capacity:
Module: 8-120
Gear Grinding: Max module 25
Diameter of Gear Wheel : Max 13000 mm
Diameter of Spiral Gear : Max 2200 mm
Length of Gear Shaft : Max 5000mm
Material selection: 40CrMo, 42CrMo, 20GrMnTi carburizing and quenching, etc. The hardness of the shaft can reach HRC60, and non-standard customized services can also be provided.
Overall quenching and tempering: the roughness of the shaft is less than or equal to Ra0.8. The surface treatment can be conducted by blackening, zinc plating, chromium plating, nickel plating, hard anodizing and other processes.
Shaft category: smooth shaft, spline shaft, spur gear shaft, helical gear shaft, etc. The shaft can be processed according to the drawing, with a minimum of 1 piece.
A gear shaft is a mechanical part that supports rotating parts and rotates with them to transmit motion, torque, or bending
moment. It is generally in the shape of metal rods, and each segment can have different diameters. The rotating parts of the machine are mounted on the shaft.
Equipment processing capacity:
The company has high-precision gear rolling, inserting and grinding machine tools, with CNC lathe, milling machine, internal and external grinder, and surface grinder as the basis, which can process spline shaft, spur gear shaft, helical gear shaft and other shaft products.
The production capacity:
Module: 8-120
Gear Grinding: Max module 25
Diameter of Gear Wheel : Max 13000 mm
Diameter of Spiral Gear : Max 2200 mm
Length of Gear Shaft : Max 5000mm
Material selection: 40CrMo, 42CrMo, 20GrMnTi carburizing and quenching, etc. The hardness of the shaft can reach HRC60, and non-standard customized services can also be provided.
Overall quenching and tempering: the roughness of the shaft is less than or equal to Ra0.8. The surface treatment can be conducted by blackening, zinc plating, chromium plating, nickel plating, hard anodizing and other processes.
Shaft category: smooth shaft, spline shaft, spur gear shaft, helical gear shaft, etc. The shaft can be processed according to the drawing, with a minimum of 1 piece.
1.Q: Are you trading company or manufacturer ?
A: We are professional slewing bearing manufacturer with 20 years' experience.
2.Q: How long is your delivery time?
A: Generally it is 4-5 days if the goods are in stock. or it is 45 days if the goods are not in
stock, Also it is according to quantity.
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample, it is extra.
4.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
5.Q: Can you provide special customization according to the working conditions?
A: Sure, we can design and produce the slewing bearings for different working conditions.
6.Q: How about your guarantee?
A: We provide lifelong after-sales technical service.
