ChinaHome > Products > BM Series Analog Signal Isolator > Acrel Isolated safety barrier, CCC certified Widely used in petroleum, chemical and other industries BM200-DV/I-C22
Acrel Isolated safety barrier, CCC certified Widely used in petroleum, chemical and other industries BM200-DV/I-C22
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C
You May Like
-
Acrel 2 independent DC voltage signals are isolated and output 2 independent DC0/1-5V or 0/2-10V signals.BM200-DV/V-C22
-
Acrel 1 DC current signal is isolated and outputs 1 DC0/4-20mA Current input isolation safety barrier BM200-DI/I-B11
-
Acrel BM200-TR/I-B11 Thermal resistance input isolation safety barrier Widely used in petroleum and chemical industries
-
Acrel 1 channel pt100 signal input, after isolation, proportionally outputs 1 channel DC0/1-5V or 0/2-10V signal BM200-TR/V-B11
-
Acrel 1 channel pt100 signal input, after isolation, proportionally outputs 2 channels of independent DC0/4-20mA signals
-
Acrel Thermal resistance input isolation safety barrier widely used in petroleumchemical and other industries BM200-TR/V-C12
Product Description
BM200 isolated safety barrier can transmit signals between the safe area and the dangerous area, and limit the energy transfer from the safe area to the dangerous area caused by the fault. The voltage, current, temperature, resistance signals generated by the equipment (transmitter) on the dangerous side are isolated and converted into corresponding linear voltage and current signals outputting to the safe area. The product requires independent power supply, and the input/output/power supply is isolated. It can be used in current source, two-wire, three-wire transmitter equipment.
① DC voltage/current input
② Using magnetic isolation technology
③ Response time<400ms
④ TS35 rail installation
⑤ Plug-in terminal
⑥ Temperature drift coefficient: ≤200ppm/℃ at 0.5 level
Technical Parameter

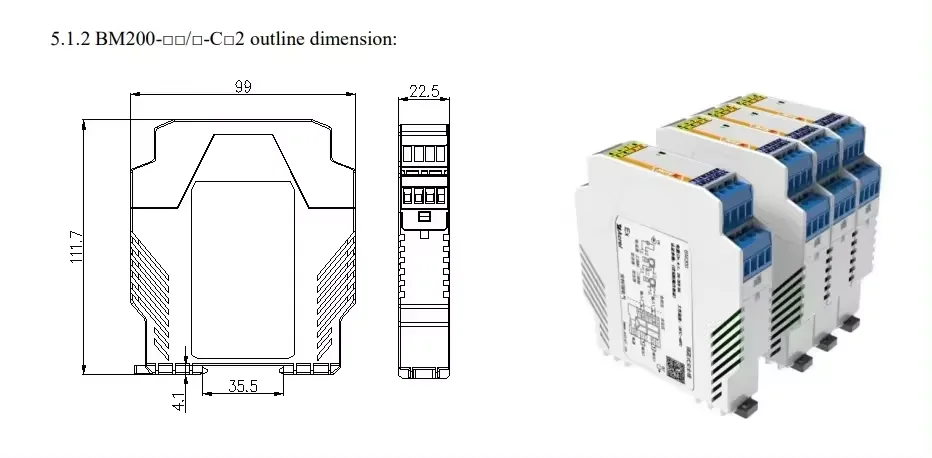

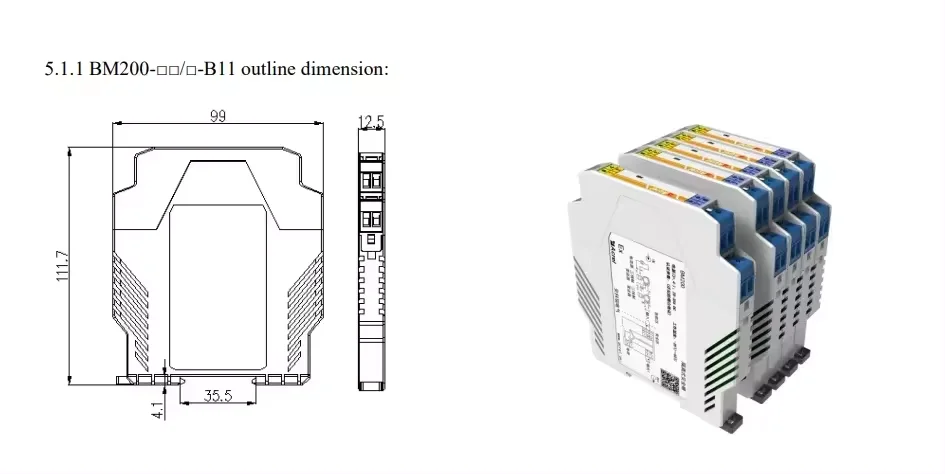

Dimension

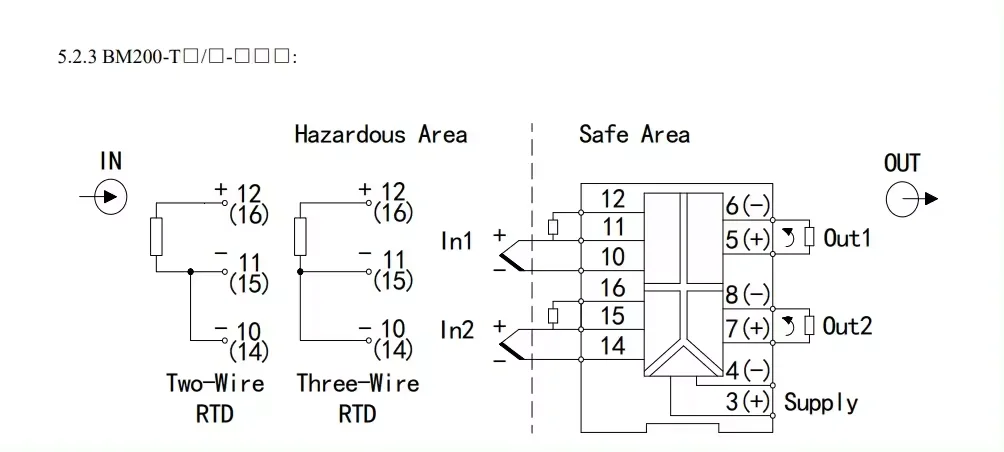

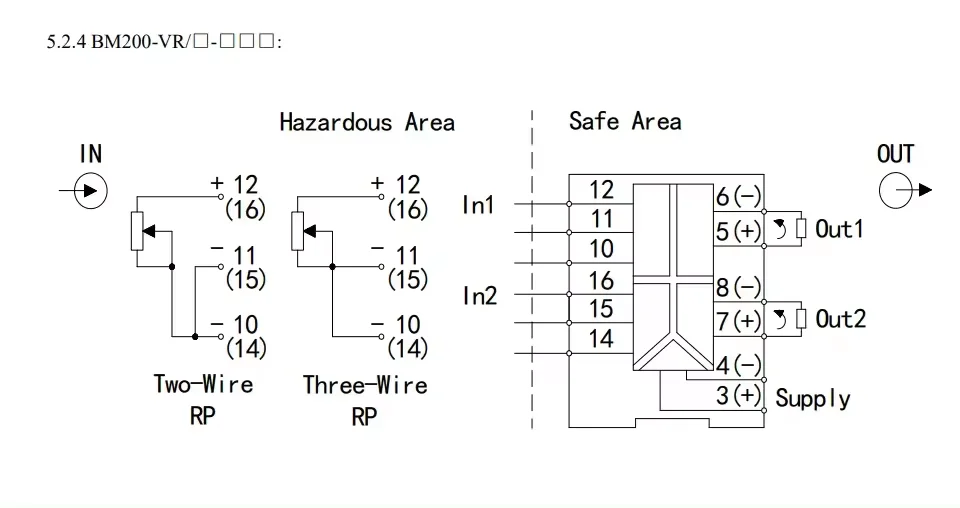

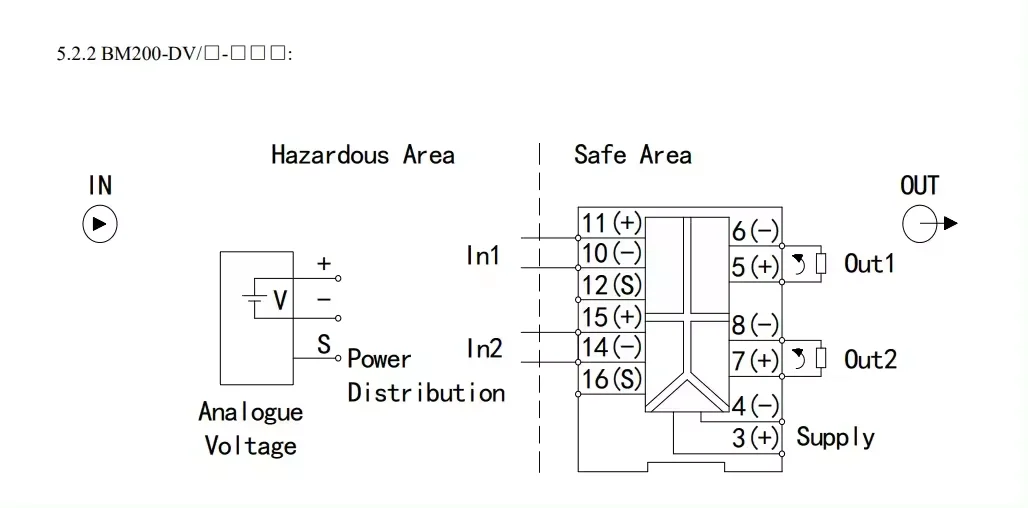

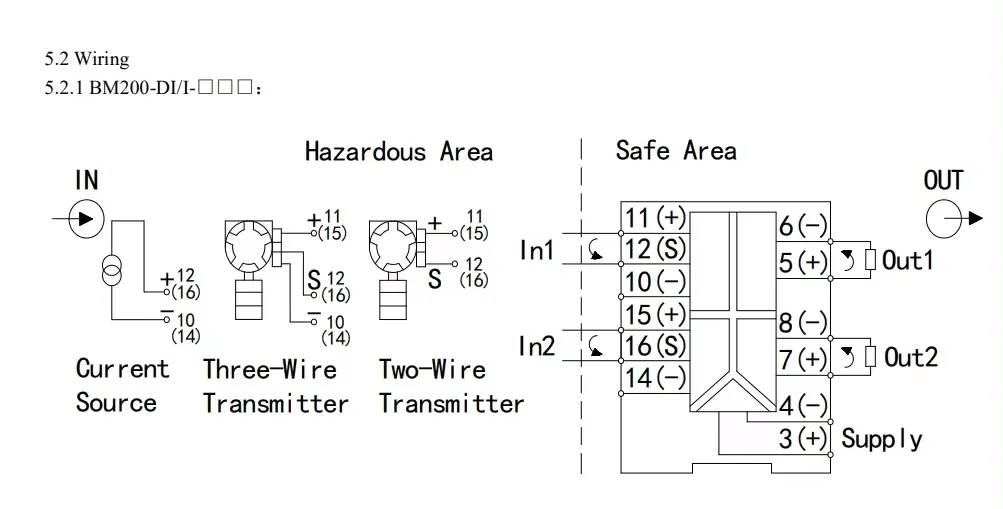

Wiring
Solution Structure
Application
Payment & Delivery
Company Profile
Contact Us
