Danfoss ETS250 YORK 025-41565-000 valve for YORK chiller units
US$ 1 - 10
/ Piece
1 Piece(Min. Order)
- T/T
You May Like
-
Trane X15111210290 VAL12002 Valve with Module Driver MOD02688 Trane spare parts
-
New Carrier CEPL131258-01-R display replaced PIC6 7inch HVAC System Touch Screen Controller Display Carrier chiller parts
-
Carrier chiller parts pressure sensor carrier refrigeration spare parts
-
Carrier pressure sensor OOPPG000002000
-
Carrier air conditioner parts pressure sensor OOPPG000003000
-
wholesale Carrier temperature sensor Carrier Chiller Parts HH79NZ059
Product Description

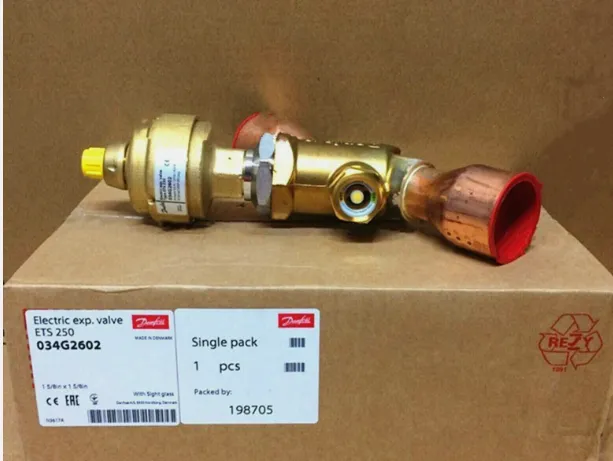

Danfoss valve ETS250 034G2602
| Gross weight | 2.044 Kg |
| Net weight | 1.737 Kg |
| Ambient temperature range [°C] [max] | 60 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 140 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CE EAC LLC CDC TYSK UL UKCA |
| Balanced port [Yes/No] | Yes |
| Compatible Danfoss controllers | EKE 1A EKE 1B EKE 1C |
| Connection material | Bi-metal: Steel/copper |
| Direction | Straightway |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 |
| Electrical connection size | 4 pin |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Bi-flow |
| Fluid Group | 2 |
| Full travel time speed [s] [max] | 23 s |
| Full travel time speed [s] [min] | 11.5 s |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Solder ODF |
| Inlet size [in] | 1 3/8 in |
| Lubricants compatibility | MO POE |
| Manual operation option | AST-G service driver |
| Max allowed duty cycle [%] | 100 % |
| Max tot PowerCons CurrDrive[W] | 1.3 W |
| Max tot PowerCons VoltDrive[W] | 5.5 W |
| Max. Working Pressure [bar] | 45.5 bar |
| Max. Working Pressure [psig] | 660 psig |
| MaxOPD [bar] | 33 bar |
| MaxOPD [psi] | 478.6 psi |
| MaxOPD reverse [bar] | 33 bar |
| MaxOPD reverse [psi] | 478.6 psi |
| Motor type | Bi-polar |
| Outlet connection type | Solder ODF |
| Outlet size [in] | 1 3/8 in |
| Packing format | Single pack |
