BMX Racing timing system

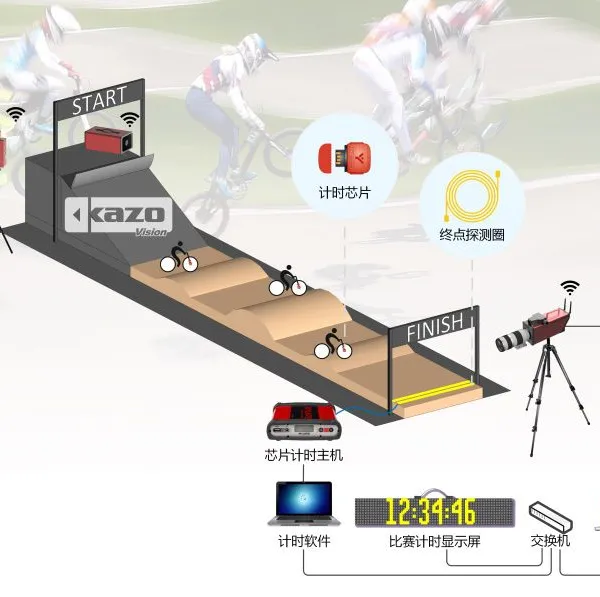

The BMX Racing timing system is an automatic timing system that combines software and hardware. It works together
through multiple systems such as timing software, electronic signaling system, chip timing host, timing chip, endpoint
detection coil, competition timing and LED screen display software, endpoint camera timing system, and competition score
management server. It adopts high-speed color CCD digital camera and advanced image data processing technology, The
timing accuracy of the equipment meets the requirements of professional competitions, and it has the characteristics of high
timing accuracy，
fast and accurate interpretation, strong stability, easy operation, easy carrying and installation, and low consumables.
1. Competition timing and LED screen display software
Features::
Support simultaneous operation of shooting and grade evaluation.
When the computer crashes and the software restarts, the timer can be restored with just one click.
The output accuracy of the grade is 0.0001 seconds to 1 second, which is optional.
Support multiple commands and reset command timing.
Support zero time calibration function.
Support stopping timing to continue shooting.
Automatic image cropping, filtering out excess images.
Support large screen display of grades and images.
2. Chip timing host
Specification:
Chip timing host model: KS-Prochip Decoder
Size: 180x160x45 (mm)
Weight: 720 g
Track width: 2-16 m
Features:
By connecting the detection coil, the signal from the timing chip can be converted into the ID information
of the contestant and the precise time of passing through the detection coil.
3. timing chip
Specification:
Model: KS-STM100
Order host size: 23 × thirteen point five × 5.5 cm
Weight: 1.5 KG
Speaker size: 31 × twenty-six × 33 cm
Weight: 7 KG
Features:
Supports wired and wireless audio.
Supports electronic command guns.
The maximum distance for issuing orders is 2000 meters.
Support wireless command button for sending commands.
Supports microphone voice input.
Dual output of voice and firing gun sound.
4. Color endpoint camera timing system
Specification:
Model: KS-PHFC10
Host size: 29.8 × fourteen × 15.6 cm
Weight: 2 KG
Power adapter: 14.8-16.8V/1-2A
Color: Full color image
Features:
Supports automatic image exposure processing.
Support positioning athlete sprint images.
Support frontal capture of sprinter chest number fabric.
Support multiple commands and reset command timing.
Support zero time calibration function.
Support stopping timing to continue shooting.
Support local image enlargement function.
Automatic image cropping, filtering out excess images.
Support remote image interpretation, with one computer capturing and one computer interpreting
images.
Support thumbnail display and quickly locate athletes.
Support video recording playback.
Supports PNG and BMP image generation.
5. Meet Management Server (OVR)
Specification:
Model: KS-MMS-MINI
Size: 260x135x35 (mm)
Weight: 1.0 KG
Features:
Easy to create a match, and import the match entry information.
Arrangement the match with variants of game systems. Including
elimination, round-robin, etc.
Provide the match information to the scoring software on each
venue/court.
Gather the real time score and statistics information from the scoring
software. Monitor the progress of the match.
Summary and print integrated report.
Generate standard reports for the match, including start-list, results,
combined results, ranking, etc.
Print certifications with adjustable print templates.
Print the team score report.
Open interface with ODF compatible data feed.
6. Display Board Time
Specification:
Model: KS-SPLIT-D
Size: 159×55×54 CM
Weight: 32 KG
Power: 42V / 2A
Waterproof grade: Outdoor waterproof IP65
Features:
Multiple interception systems can be used at the same time (through
wireless series connection).
Computer control or wireless key control can be selected.
It can display the timing time or Beijing time.
7. Scoring Hand ecification:
Model: KS-GC17
Size: 120x220x70 (mm)
Weight: 700 G
Cabinet: Plastic
