Motor Use 400V 15KW 3 PHASE Soft Starter VFD VSD

CHINA BEST QUALITY SOFT STARTER

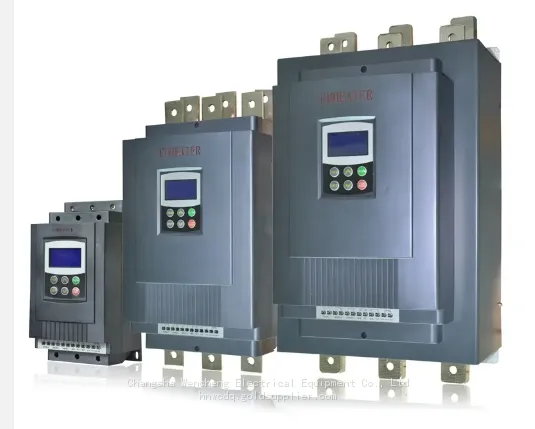

EM-GS3 Series Soft starter 380~415V

1.1 The main function

1.Effectively reduce the starting current of the motor; Can reduce the distribution capacity, avoid grid expansion investment.

2.Reduce the starting stress of motor and load equipment; Prolong the service life of the motor and related equipments.

3.Soft stopping function can effectively solve the parking surge problem of inertial systems; That is a traditional starting equipment cannot be achieved.

4.With six unique starting mode; To adapt to the complex motor and load, achieve perfect priming effect.

5.With complete and reliable protection function; effectively protect the safety of motor and related production equipment.

6.Intelligent motor soft starter, the application of network technology used motor control technology to adapt to the rapid development of electric power automation technology in the higher requirements.

1.2The main feature of soft starter

Reliable quality

1.The computer simulation design.

2.SMT production process.

3.Good EMC performance.

4.The machine before delivery on the high temperature aging, vibration test.

Perfect and reliable system protection function

1.Protection of no voltage, less voltage and over  voltage.

2.Protection of overheating and starting time too long.

3.Protection of Input phase lost, output phase lost and  3phase unbalance.

4.Protection of starting over current, running overload, and load short circuit protection.

Maintenance function

1.Fault self-diagnosis(short circuit, over voltage, less voltage, one phase grounded, motor overload, one phase lost, motor blocked, and intelligent software can inspect drag system working state).

2.Combination of modular design, according to the fault display content, quick troubleshooting.

Independent intellectual property products

1. Independently software copyright.

2.Motor starting and protection proprietary technology.

3.Unique way to detect debug equipment and process.

Quick and thoughtful after-sales service

1.Reliable performances lay the foundation of qualified service and quality.

2.Provide perfect system solution.

3.The timely and thoughtful Consulting Services.

4.Constantly improve the product performance according to user's opinion.

1.3Safety Clauses

 Thanks for your using EMHEATER intelligent motor soft starter, this product is used for three-phase squirrel cage induction motor soft starting and soft stopping control. Before using, please carefully read and understand the contents of this manual. In the process of using the soft starter, please note the following Safety Clauses:

1.Please check this user manual carefully before using the product.

2.Only the technical person is allowed to install the product.

3.To be sure that the motor is correctly matched with the soft starter.

4. It is forbid to connect capacitors to the output terminals (U V W).

5.Please seal the terminal switch insulation glue after finishing connect them.

6.The soft starter and its enclosures must be fixedly earthed.

7.During the maintenance and repair, the input must be off-power. This user manual content may be changed due to technical reasons or modified. We reserve the updating right.
